LOCATING BURNER – Cut-Out Dimensions

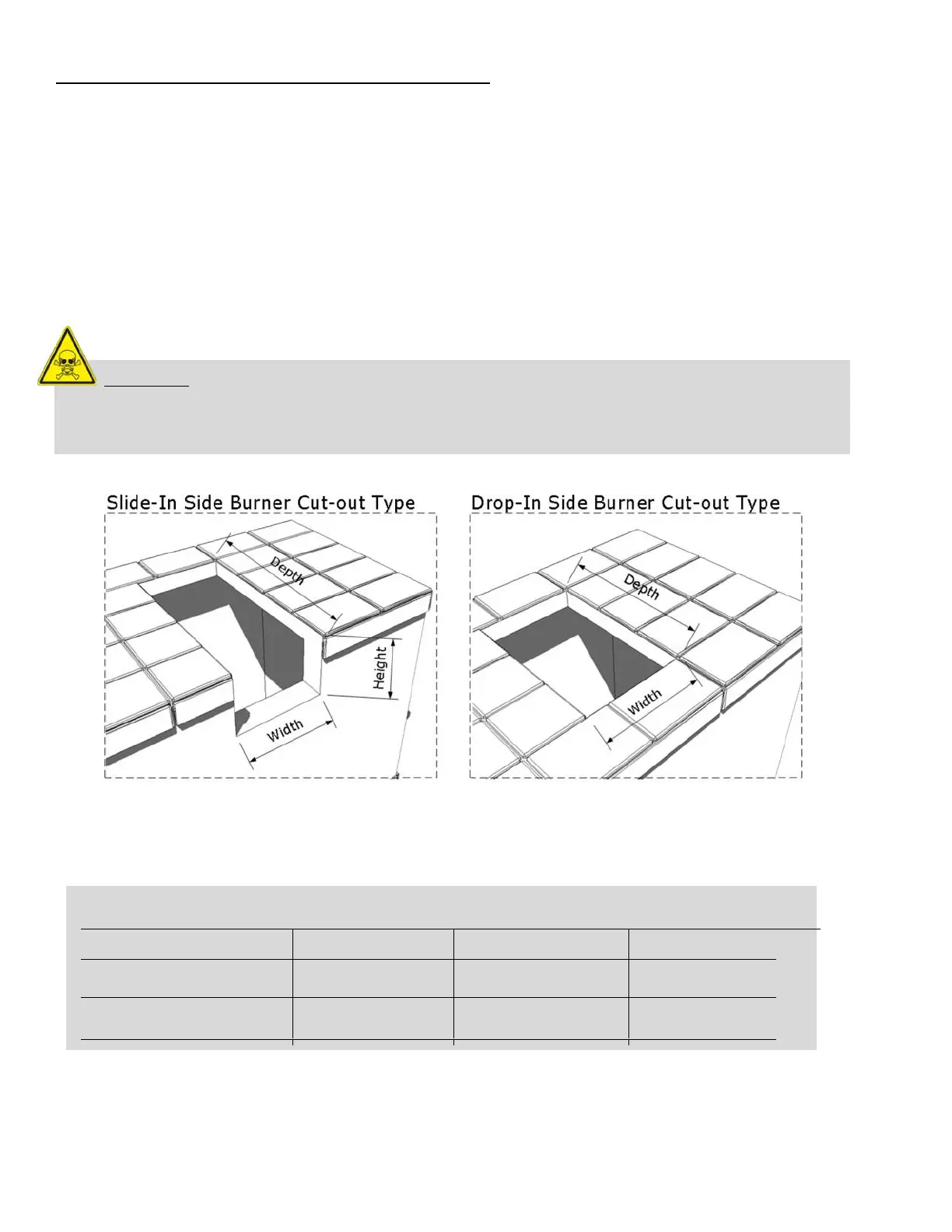

Ruby Series Burner Island Cut-Out Dimensions
ITEM NO.
WIDTH
DEPTH
HEIGHT
2CSB – LP/NG
12”
20-1/4”
8”
1SSB – LP/NG
10”
16-1/8”
4”
WARNING: Never build shelf or enclose interior space under the BBQ Cut-Out. The Side Burner is
Self-Rimming and is supported by the top counter surface on the Back and Sides, the front of burner
is designed to Free-Hang. The bottom of Burner needs to be open to allow for proper ventilation.
Burner Cut-Out
Your Side Burner is SELF-RIMMING, meaning the lip of burner rests on top of the counter edge around the
cut-out and is Free-Hanging from counter top. Because of this, there is No Need for any Trim-Kit unlike
other side burners in the market.
1. Maintain 24” Clearance from any Combustible Materials in ANY direction of burner.
2. If any combustible materials within 24” distance, must have Heat Barrier like Jacket, or other Non-
Combustible type like Bricks, Hardy Board, Metal.
3. Orient the burner so the Prevailing winds are not blowing into the burner, this causes flame
disbursement and can extinguish the flame.
