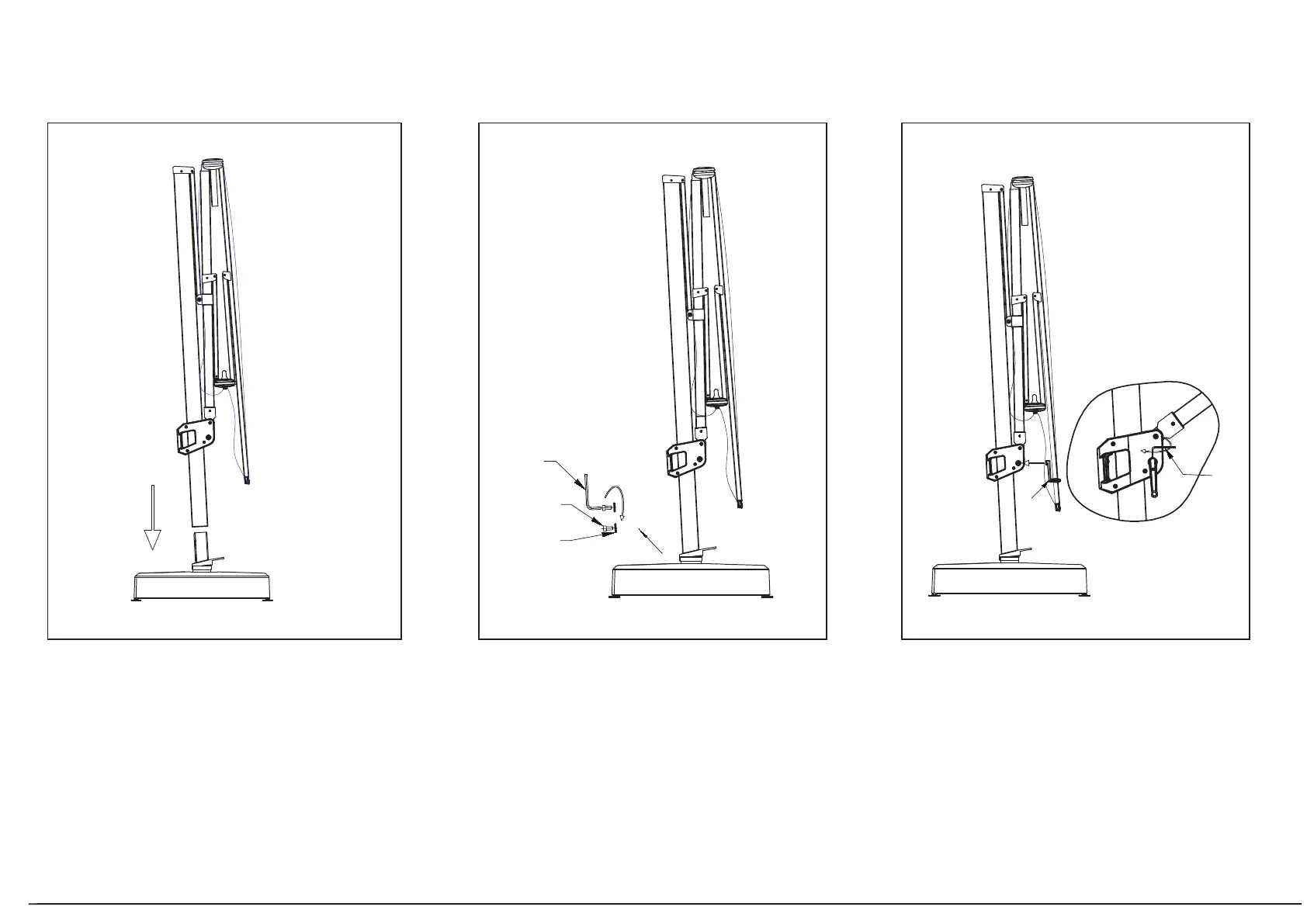

Insert Frame (D) into Base.
Step # 8
7/10
Step # 9
Insert M8x16 Bolt (HH) as shown using
6mm Hex Wrench (JJ).
Step # 10
DD
KK
JJ
HH
II
Remove all protective cardboard on umbrella canopy before any ass
Note: Requires 2 adults to move and assemble the umbrella.
embly.
Insert Crank (DD) as shown, then tighten by
using 2.5mm Hex Wrench (KK).
