Step # 1
A
F
AA
BB
DD
BB
AA
x 4

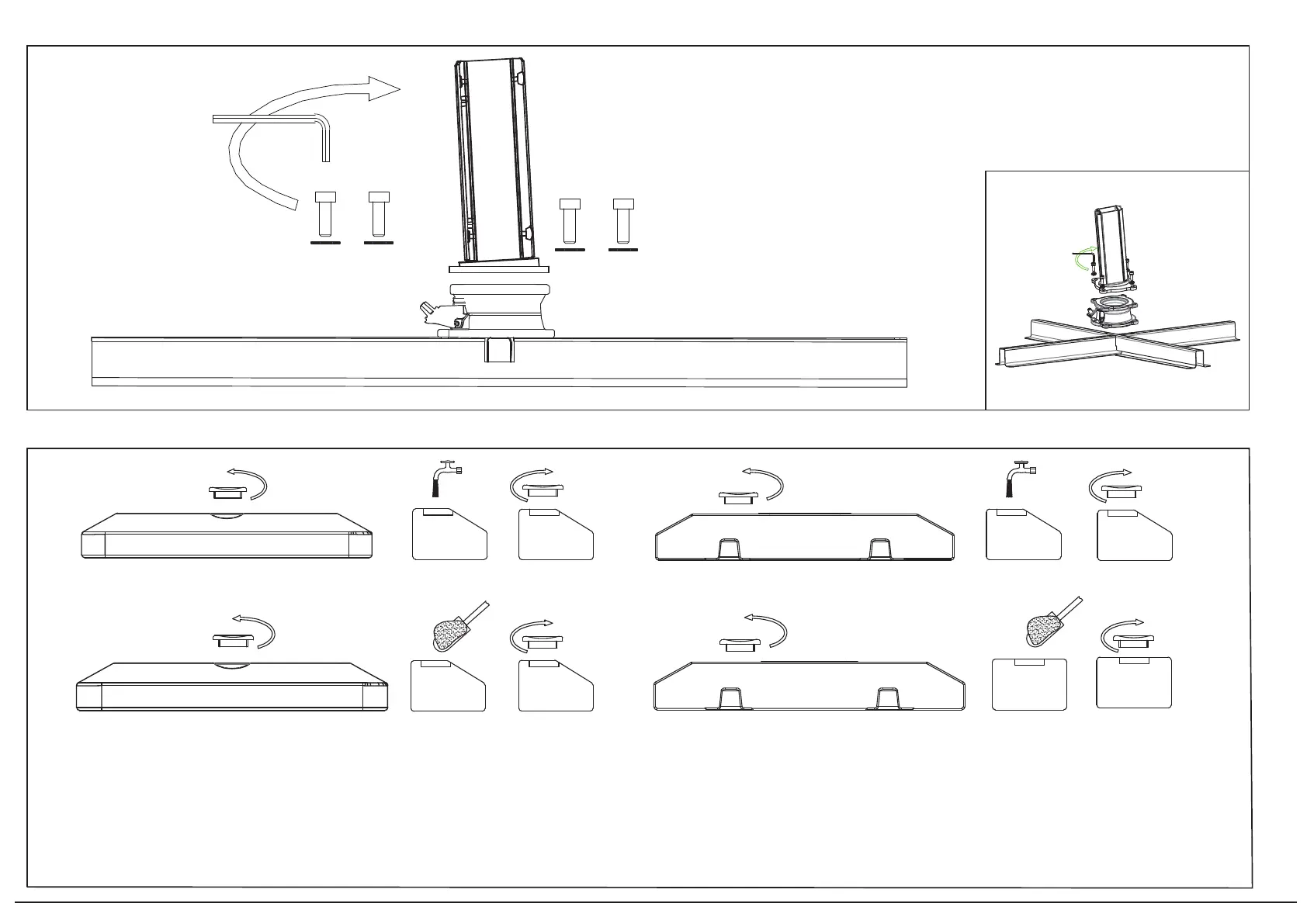

WARNING: Fill all four (4) plastic bases (B&C) completely with water or sand, total weight should be 90 kgs / 200 lbs.
Empty the base of water when freezing conditions exist or the base could crack and become
damaged.
Step # 2
Before you start any assembly steps, first locate where you will place your new offset umbrella.
Remove part (F) from umbrella carton by separating it from the umbrella
pole and place it on X-base as shown.
side view
B
C
CB
