Cold water inlet
Hot water outlet
Heating element
Temperature
controller
Faceplate
opening
Power indicator
Power
indicator
Leakage
circuit
breaker
Cleaning access
Cold water inlet
Hot water outlet
Heating element
Temperature controller
Faceplate
opening
Leakage circuit breaker
Cleaning access

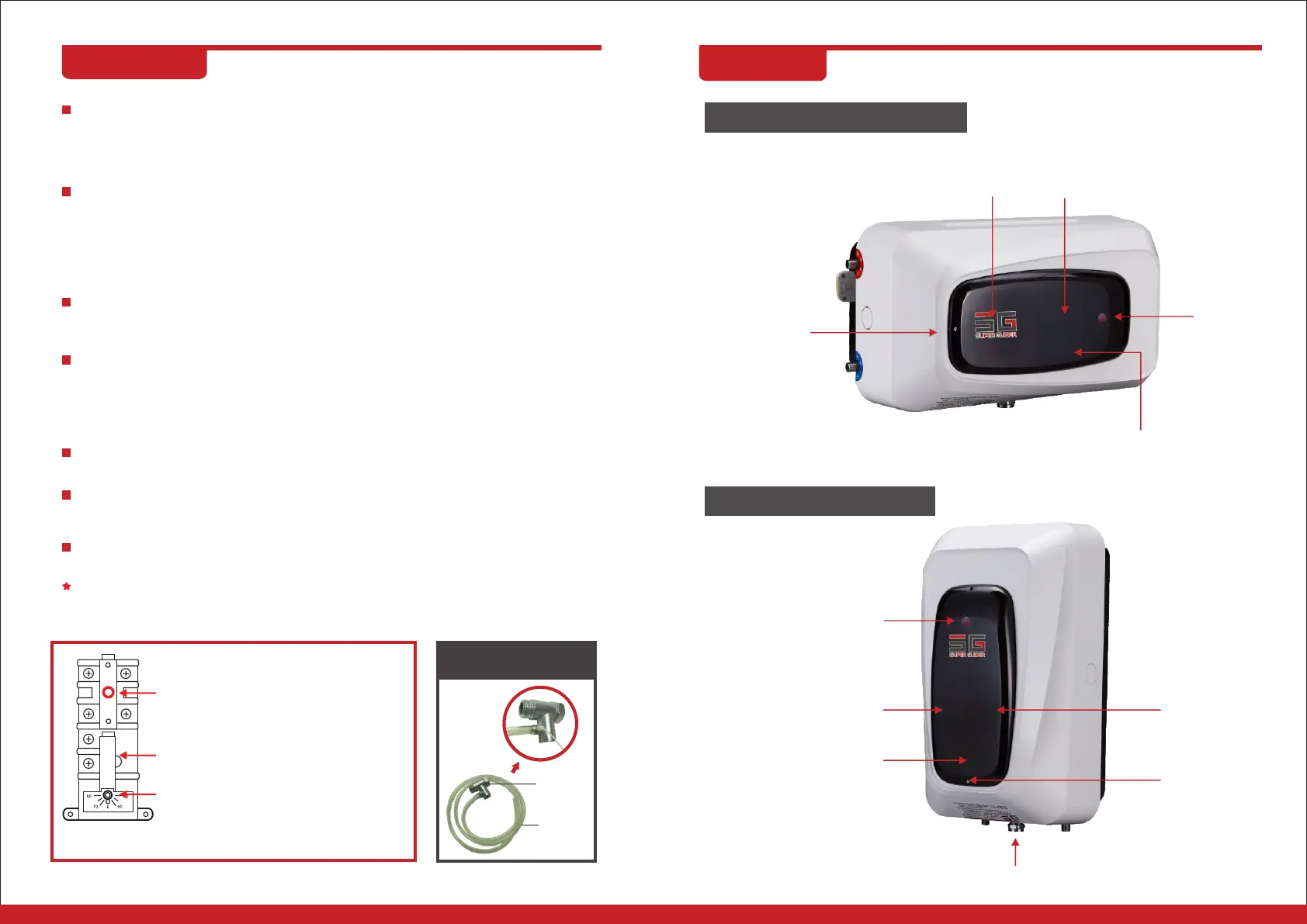

Horizontal wall-mounted
Vertical wall-mounted
Reminder Structure
Temperature controller – First Part.
Temperature adjusted button.
★ Indicator light illuminates upon switching on of the power,
stays on while heating.
Turn off the power before adjustment
Temperature controller – Second Part.
Reset (If overheating prevention device
Interrupt, THE RED BUTTON should be
pushed first after maintenance, and the
electricity supply will be recovered.
Connecting chart of
Leaking pressure pipe
Safety
valve
Pressure
relief pipe
All electrical installation should be carried out by a qualified person.
Make sure of the operation of power and water supply before contacting
the distributor.
Electrical Regulation Replacement
Heating element function
Scheduled Maintenance
Overheat Prevention Device
Please switch off the power and take off the terminal of the electrical
regulation and all wires before replacing the electrical regulation.
Ensuring the screw and nut are tightened after replacement and wires
arrangement.
Water (faucet) should be leaked off (switch-off) before replacement of
heating element function. Once installation completes, turn on both
the hot water faucet and cold water faucet then open the clean access.
Heating element function can be taken apart by a wrench.
Ensuring the rubber washer is well fixed preventing the water heater
from leaking before re-arranging the heating element function.
The heating system should be cleaned once two years ensuring the heating
quality which is highly recommended.
Scheduled cleaning the exterior of the water heater to keep intact.
Overheat Prevention Device will automatically interrupt by abnormal
overheating.
Attention: Turn off the power immediately while the power indicator is
not illuminated and contact customer service.
