E3 TAIL LIGHT 2 – INSTALLATION
Bosch Rücklicht-Anschlusskabel |
Bosch rear light connection cable
Art. No: P-BC150R
25
km/h
Das BOSCH Anschlusskabel
( Art. P-BC150R ) muss gesondert
bestellt werden. |
The BOSCH connector cable has to
be ordered separately
( art. P-BC150R ).
Bitte benutzen Sie das für Ihren
Antrieb kompatible Kabel-
Anschlussset. |
Please use the correct cable
connection set for your drive system.
A
Energieversorgung | Power supply
z. B. Bosch Motor | e.g. for Bosch drives
B
– +

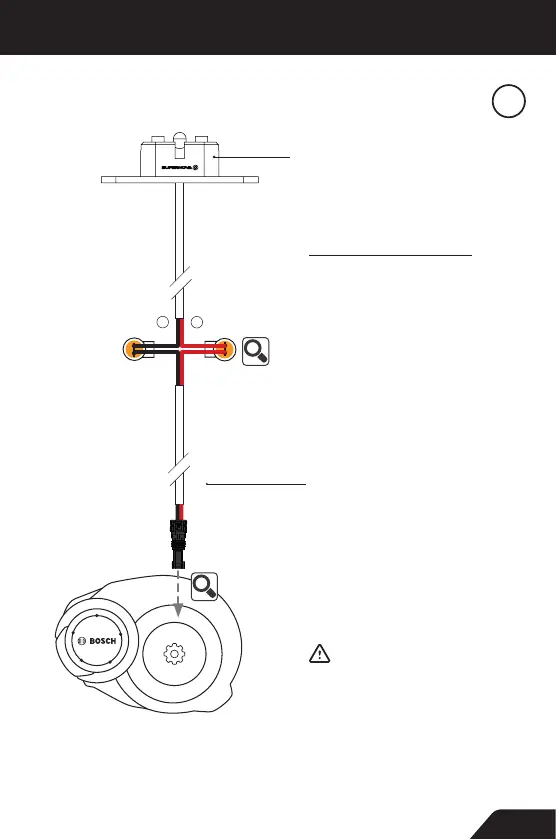

E3 TAIL LIGHT 2 AN BOSCH ANTRIEB | E3 TAIL LIGHT 2 ON BOSCH DRIVE
BOSCH
BOSCH 6 V
E3 Tail Light 2 Rack Mount
Art. No. N-TK2-BLK (6 V)
E3 Tail Light 2 FR
Art. No. N-TK2FR-BLK (6 V)
E3 Seat Post Tail Light 2
Art. No. N-TK2-S-BLK (6 V)
BOSCH 12 V
E3 Tail Light 2 Rack Mount
Art. No. N-TK2-V12-BLK (12 V)
E3 Tail Light 2 FR
Art. No. N-TK2FR-V12-BLK (12 V)
E3 Seat Post Tail Light 2
Art. No. N-TK2-S-V12-BLK (12 V)
