Appendix D: Dual Boot Block
D-3

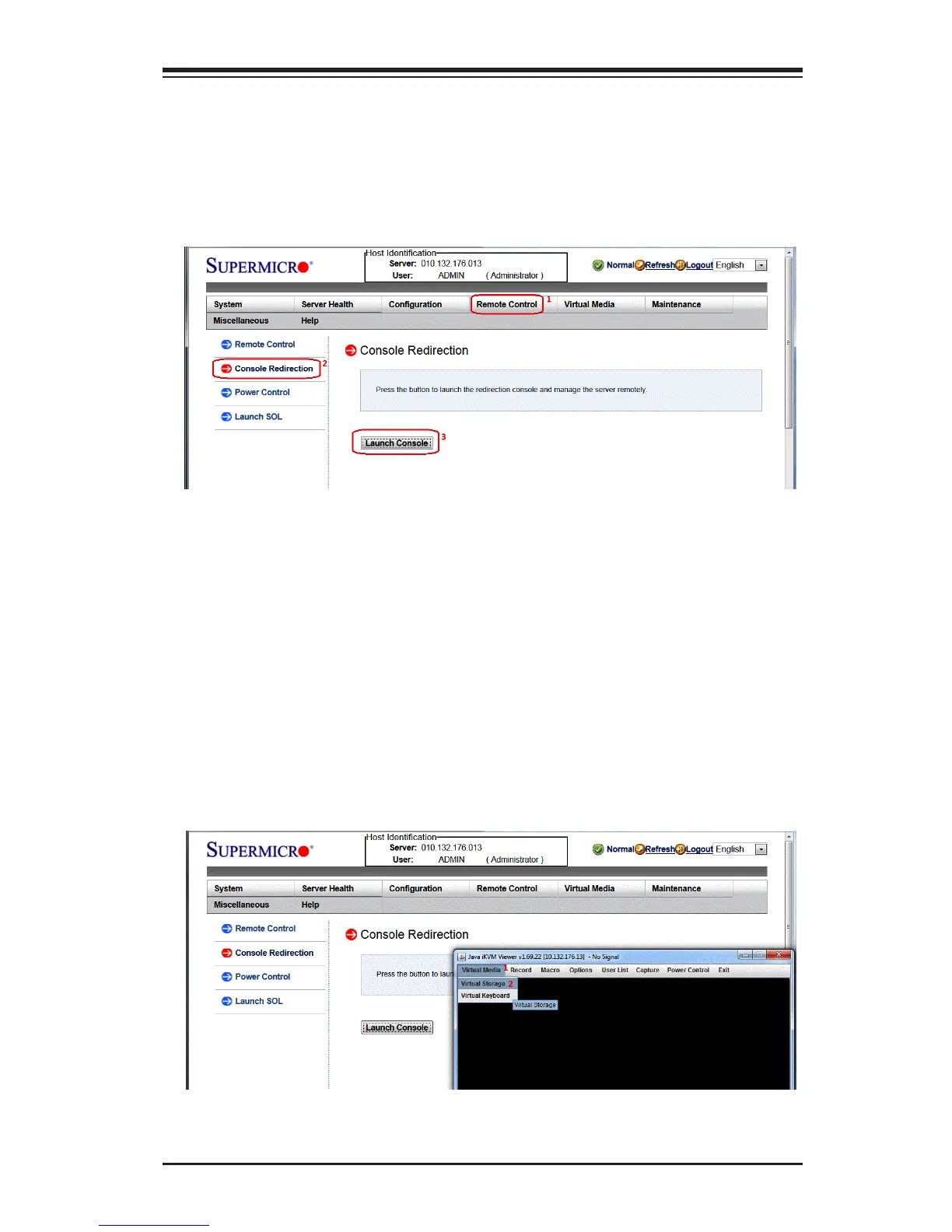

3.
Click on the
Remote Control
tab, then Console Redirection, then the
Launch
Console
button to open the Java iKVM Viewer
.
4.
In the Java iKVM Browser
, click on the
Virtual Media
tab, then
V
irtual Stor
-
age
to open the Virtual Media Loader
.
122
