Installation Instructions - #SS401/SS500
Rear Trac Bar
IMPORTANT: Two different differential brackets are provided in this kit. One
bracket has STANDARD holes, while the other has METRIC holes. They are
identied by different part numbers. SS302-3 for STANDARD. SS302-4 for
METRIC. You must determine your differential type to properly select the
correct bracket for installation.
Note: Some OEM bolts will be metric. Be sure to check the size closely before
installation. Metric bolts are larger and are also provided in the kit to be used with
the metric bracket. This kit also includes zip ties and exible plastic conduit should
coach wiring needs to be moved or shielded.
Coach Preparation -- Coach should be normally loaded
Move the coach to a level, at surface. If necessary, drive the rear wheels of the coach onto 4” high
blocks and set the brakes or drive the coach over a work pit and chock the front wheels. Block off ade-
quate space at the rear of the coach to work.

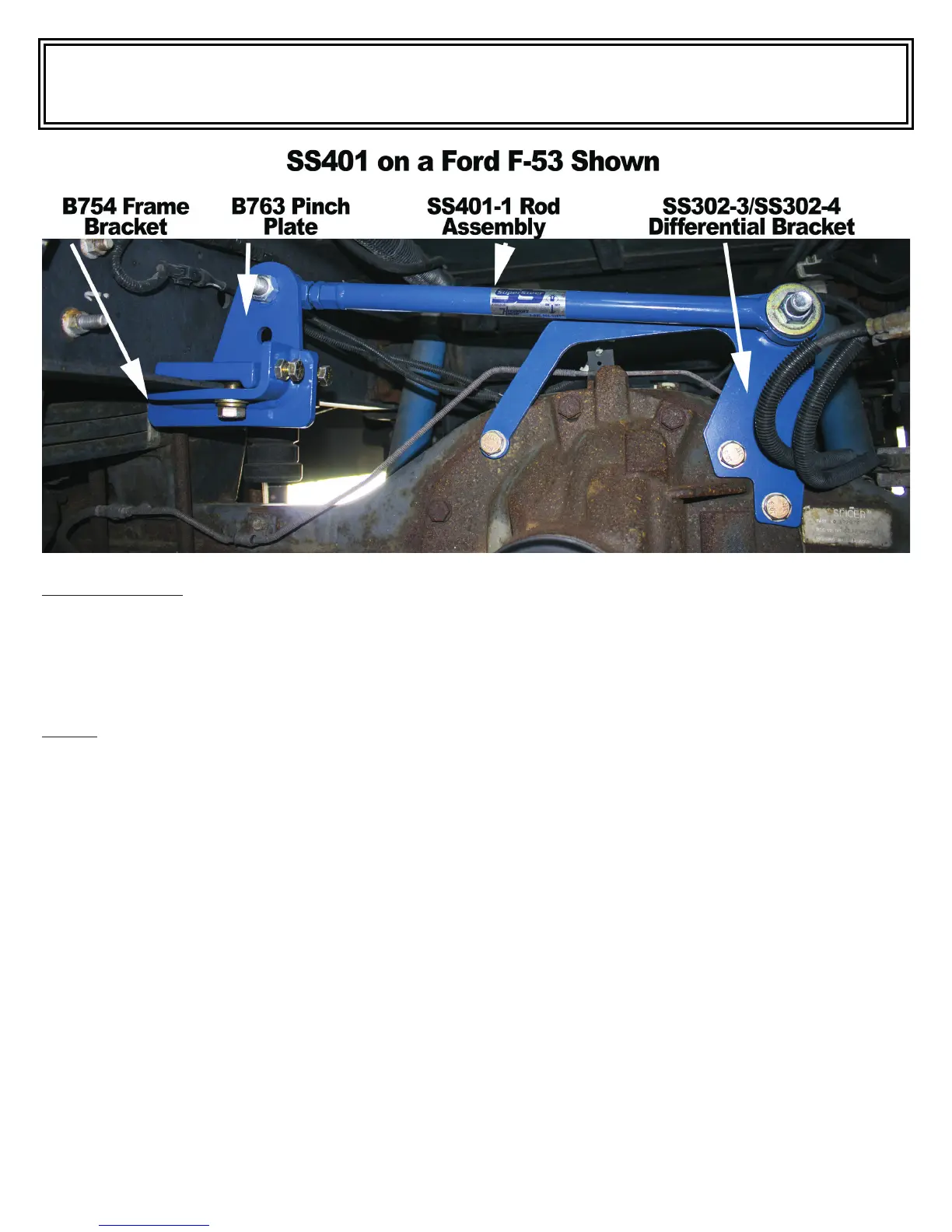

Installation of the Differential Bracket (SS302-4)(SS302-3)
Note: Before installing the differential bracket, make sure the surface is at and clean. If letters or num-
bers are stamped or raised on the differential, smooth away to create a at surface.
Hold the differential bracket up to the differential to locate the 3 OEM bolts. Remove the bolts and dis-
card. Swab the holes clean and dry before the installation of bolts. Loosely install the differential bracket
to the differential with the supplied bolts: Standard (3) ½” x 2”; OR Metric (3) 14 mm x 2” . Be sure to
use lock washers and at washers, and apply Loctite to the bolts before installing.
