1 Handsaver/Manual Handle 90-32031
3 Drum Assembly with Flange attached 90-32038
4 Perimeter Bearing 90-23137
5 Carrier Bearing 90-23140
6 Planetary Gear Builder 90-23138
7 Nylon Step Washer 90-12418
8 8 Tooth Sun Gear 90-23141
9 Flat Washer 90-23120-08
10 Motor w/Ring Gear & Primed Needle Bearing 90-32423-01
12 Flat Washer 90-23120-05
13 Bushing 90-12174
14 5/16" Socket Head Cap Screw 90-23056-02
15 Pair 3/8" Bolts & Nuts, 4 Flat & 2 Lock Washers 90-22892
16 Primed Base Plate 90-41019
18
Control Assembly w/6' Control Cord w/Switch & Power
90-32014
Supply Cord
19 Switch Assembly Only 90-23127
21 Cable Tension Plate Set 90-12450
22 5/32" x 45' Cable & Hook Assembly 1527
(2800 lbs minimum break strength)
23 Cable In Label 90-12386
24 Cable Out Label 90-12387
26 Handsaver Label 90-12417
27 Warning Label 90-10031

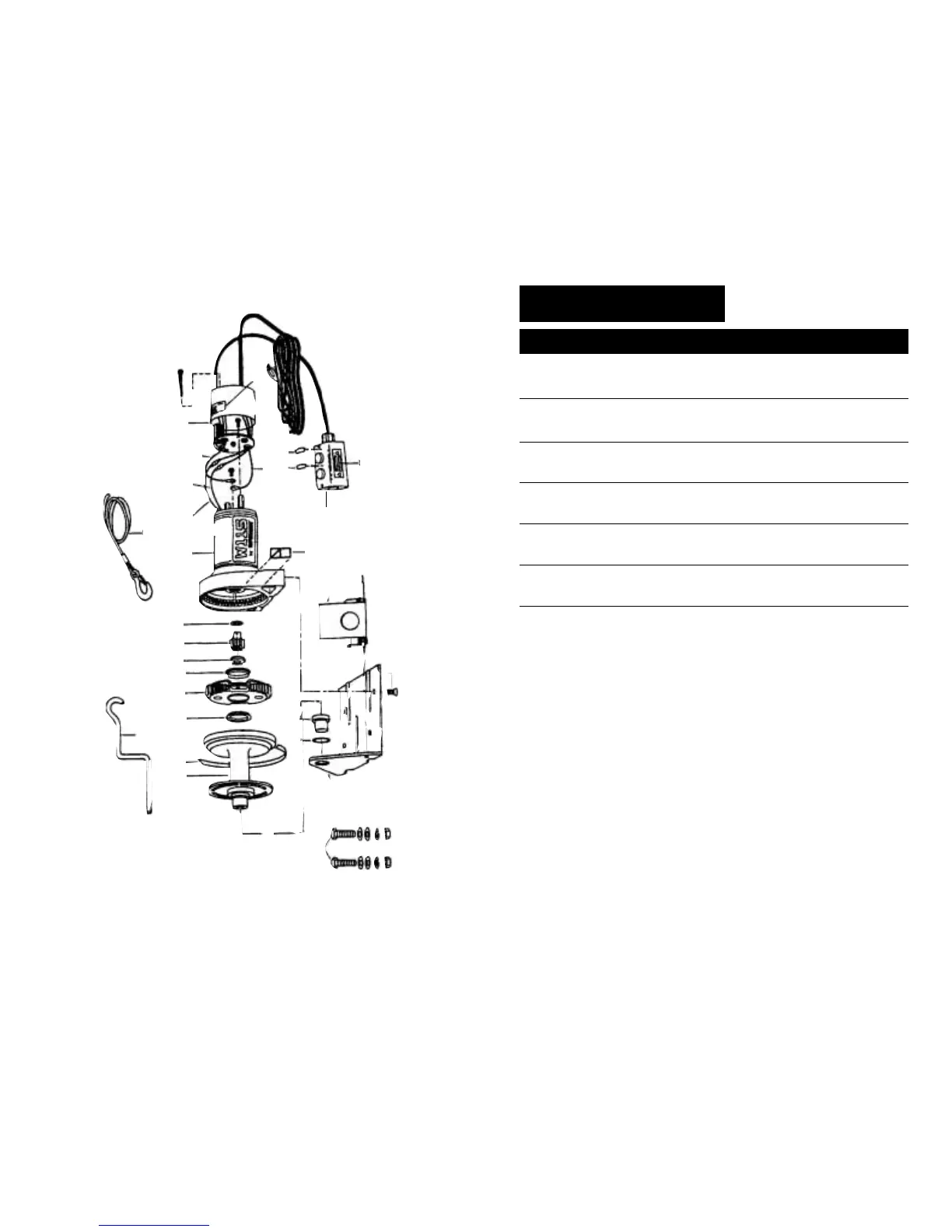

REPLACEMENT
PARTS LIST
Reference
Number Description Part Number
1
23
13
10
12
7
6
9
8
5
3
4
16
15
21
18
19
14
24
26
27
5
27
Black
White
Green
Green
22
