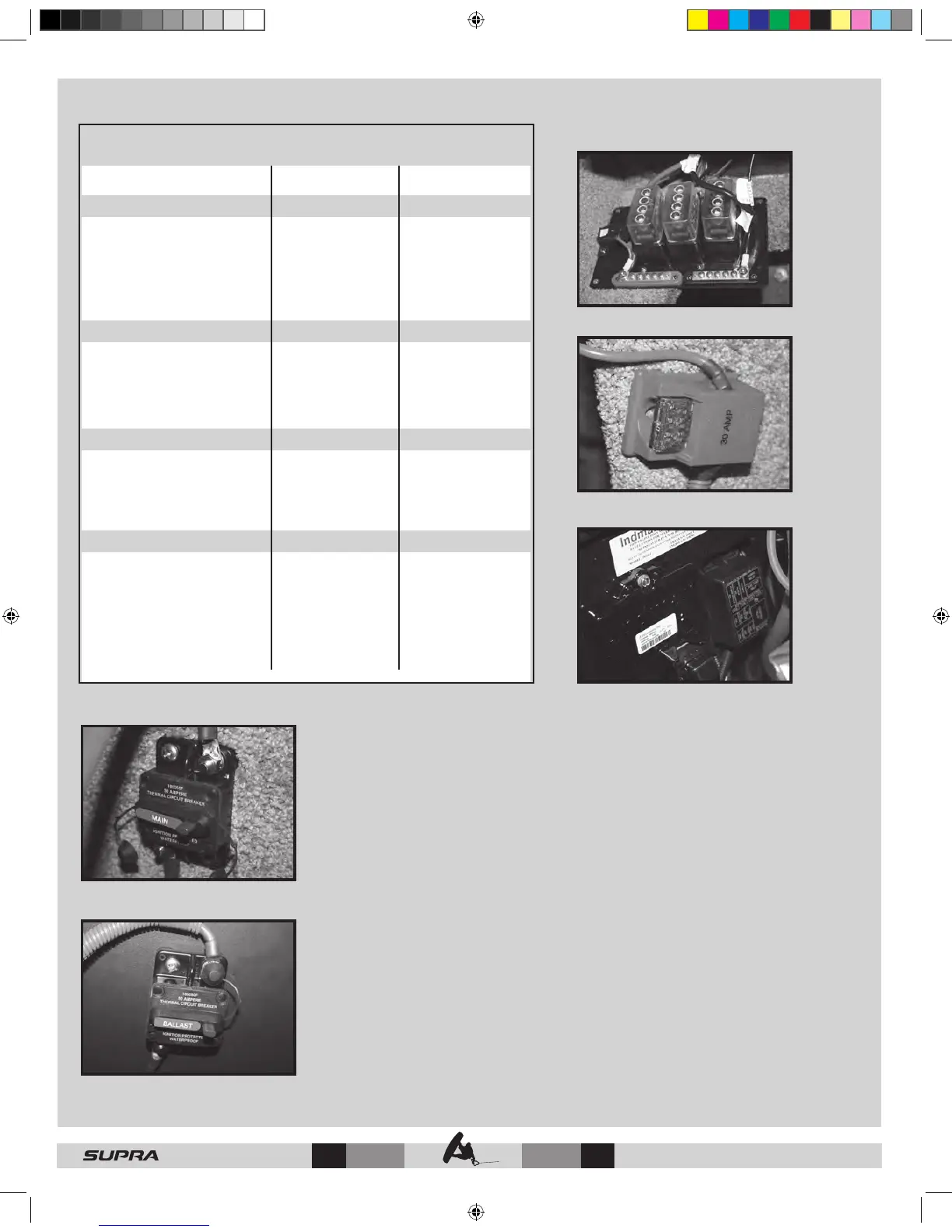

Fuse Panel - Back of Engine
Fuse Panel - Battery Connection
Fuse Panel - Under Dash
Main Dash Power-Circuit Breaker
The power to the dash circuit is protected by a circuit breaker that is located in the
observer seat storage area near the battery.
To turn off the power to the dash, manually press the red button and the circuit breaker
reset lever will flip down and the power to the dash circuit will be shut off. To reset the
breaker, push the reset lever back up.
If all of the dash switches fail to work, reset the main dash power-circuit breaker.
Main Ballast Power-Circuit Breaker
The power to the ballast pump circuit is protected by a circuit breaker that is located in
the port side of the engine compartment.
To turn off the power to the ballast pump, manually press the red button and the circuit
breaker reset lever will flip down and the power to the ballast circuit will be shut off. To
reset the breaker, push the reset lever back up.
