7-42

INSPECTION AND MAINTENANCE

78KS0-37E

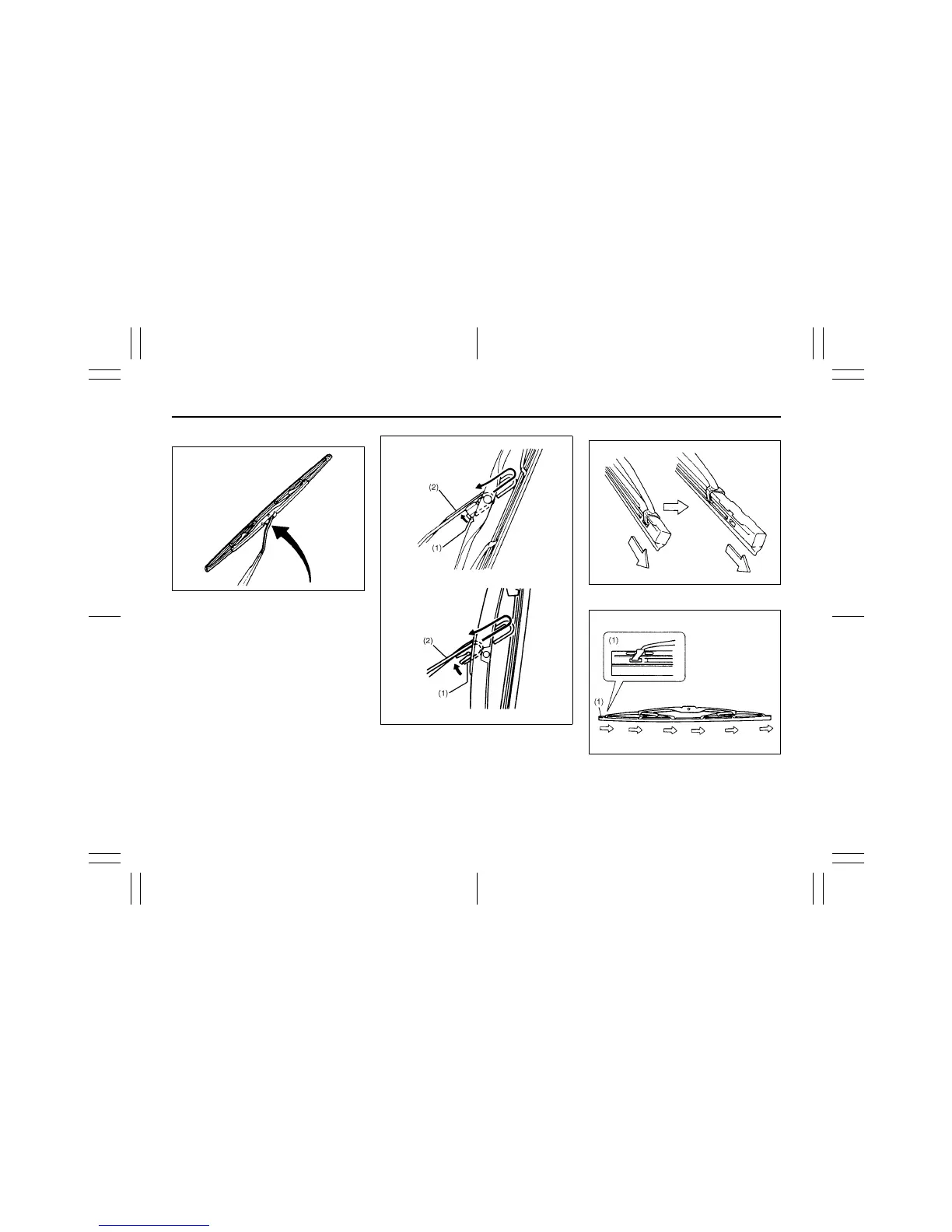

For windshield wipers:

70G119

1) Hold the wiper arm away from the win-

dow.

54G130

2) Squeeze lock (1) towards wiper arm (2)

and remove the wiper frame from the

arm as shown.

3) Unlock the lock end of the wiper blade

and slide the blade out as shown.

Type A (Removal)

60A260

Type A (Installation)

54G132

(1) Locked end

EXAMPLE

Wiper Blades: 3
