Suzuki GSF1250 - Schematic and Routing Diagram; PAIR System Hose Routing Diagram

1B-4 Emission Control Devices:
Schematic and Routing Diagram

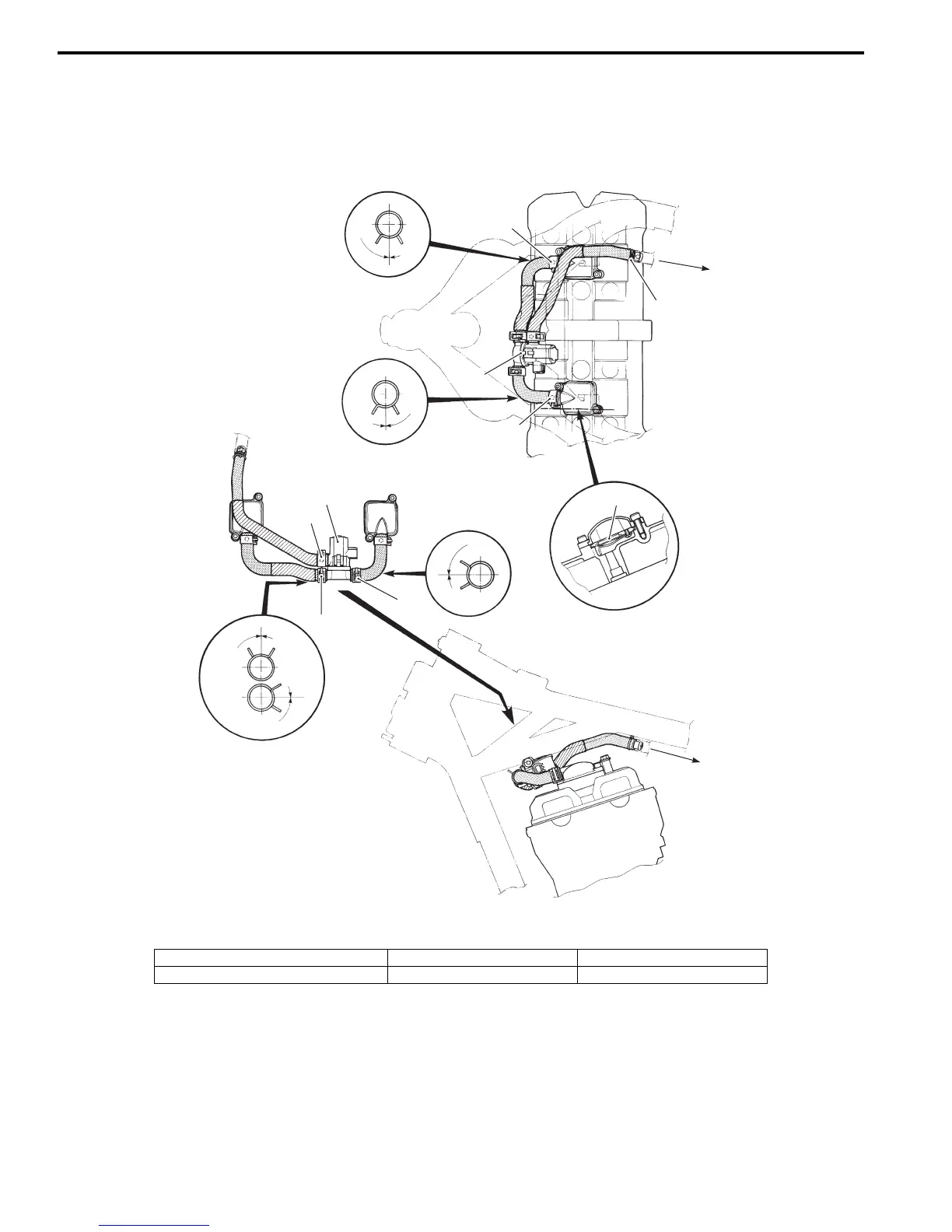

PAIR System Hose Routing Diagram
B718H11202001
1
1
2
“A”
“A”
“A”
“B”
“B”
“B”
“C”
“C”
“a”
“a”
“a”
“a”
“a”
I718H1120043-01
1. PAIR control solenoid valve “A”: Marking (Yellow) “C”: To air cleaner box
2. PAIR reed valve “B”: Marking (White) “a”: Approx. 0°
