Suzuki GSF1250 - Schematic and Routing Diagram; ABS Wiring Diagram

4E-7 ABS:
Schematic and Routing Diagram

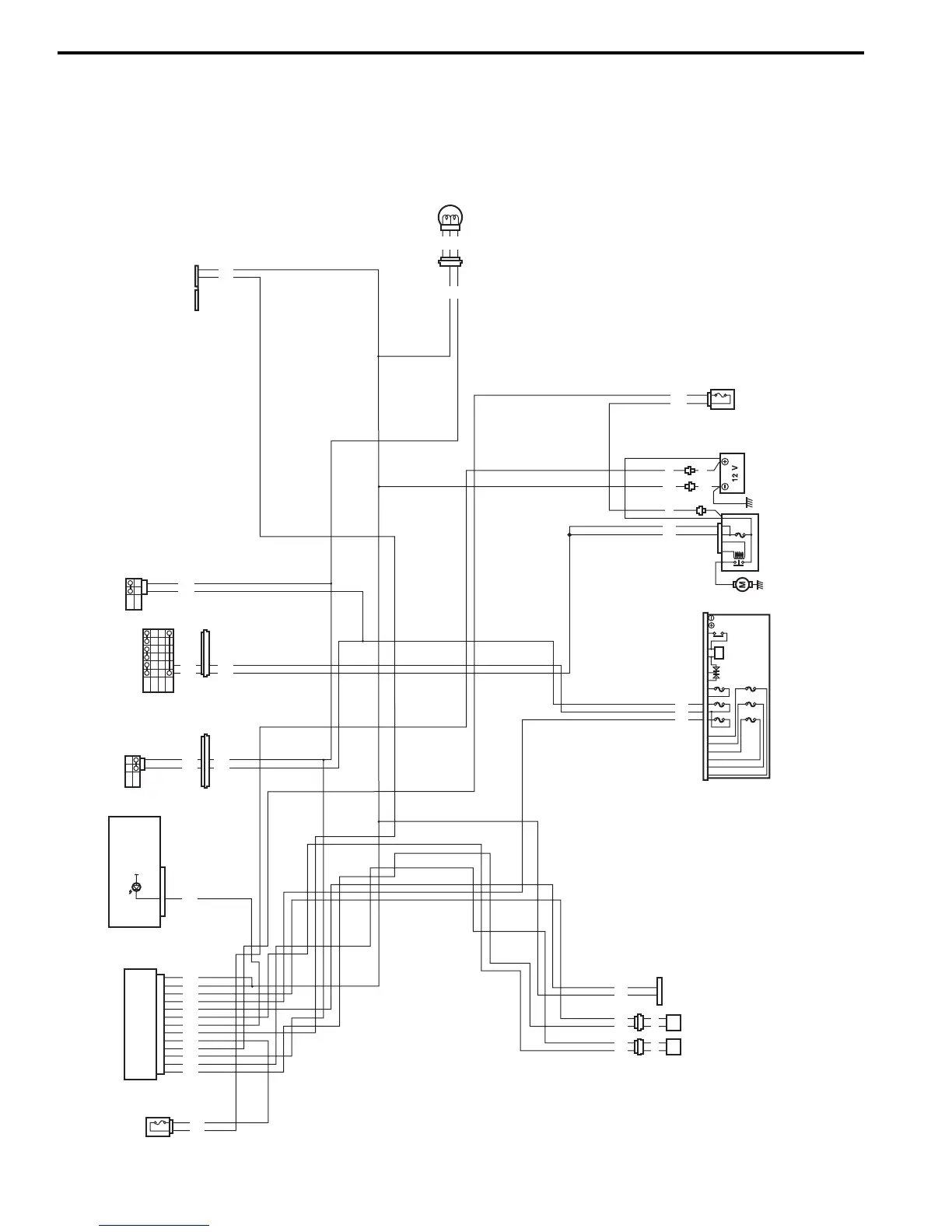

ABS Wiring Diagram
B718H14502001
Refer to “Wire Color Symbols in Section 0A (Page 0A-6)”.
B/R
B/R
O/Y
B/O
B/G
B/W
R
R
R
B/W
B/R
W/R
B/Y
W/Y
B/W
O
B
W
B
W
B/Y
W/R
W/B
R/Bl
R/B
Gr
Br
B/R
O
O/Y
W/Y
B/W
B/W
Br
B/G
B
B/R
B/O
B/R
B/O
O/G
W/B
B/G
B
R
R/B
Gr
B/W
B
B/W
Br
W/B B/W
R
R/Bl
OFF
ON
FRONT BRAKE LIGHT SWITCH
ON
OFF
LOCK
P
IGNITION SWITCH
ON
OFF
REAR BRAKE LIGHT SWITCH
ABS VALVE FUSE
(15A)
BATTERY
1: MAIN 30 A
STARTER MOTOR
STARTER RELAY
1
123
BBl
456
1. HEAD HI 2. HEAD LO 3. FUEL 4. IGNITION 5. SIGNAL 6. FAN
10 A 10 A 10 A 15 A 15 A 15 A
FUSE BOX
RWSFWS
REAR COMBINATION LIGHT
1
1
ABS MOTOR FUSE
(20A)
ABS CONTROL UNIT
SPEEDOMETER
ABS
MODE SELECT SWITCH
SDS COUPLER
I718H1450020-06
