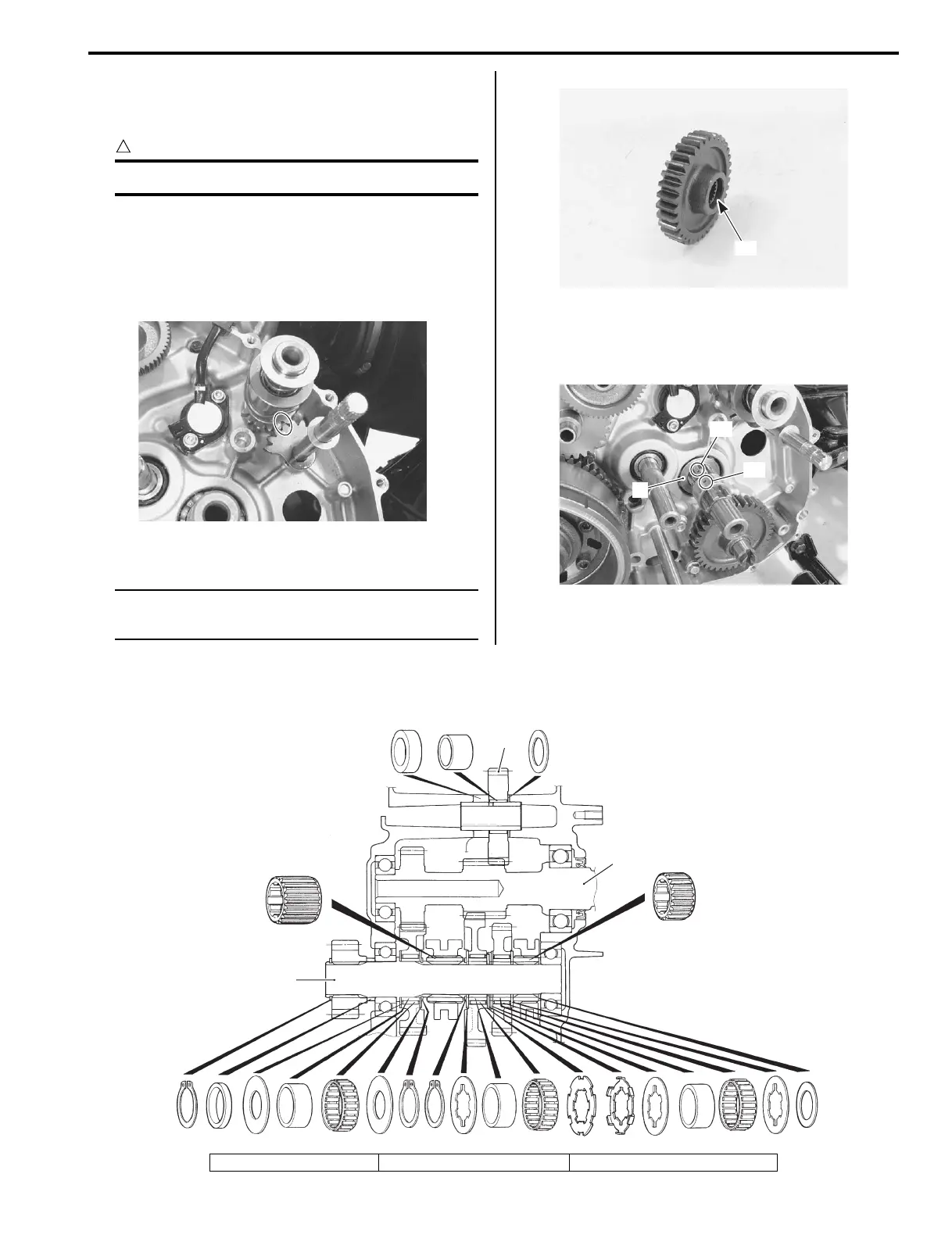

Suzuki LT-A400 - Transfer Construction (LT-A400

Transfer: 3C-8
Installation
Install the transfer in the reverse order of removal. Pay
attention to the following points:
CAUTION
!
Apply engine oil to each gear and shaft.
• Assemble the transfer gearshift shaft. Refer to
“Transfer Gearshift Cam Components (LT-F400/F)
(Page 3C-11)”.
• Install the transfer gearshift cam and gear shift shaft
assembly by aligning their punch marks.
• Install the transfer driven gear.
NOTE
Spline offset part “A” of the gear faces
crankcase side.
• Install the washer (1).
• Install the bushing by aligning its hole “B” with the hole
“C” on the shaft.
• Install the generator cover. Refer to “Generator
Removal and Installation in Section 1J (Page 1J-5)”.
Transfer Construction (LT-A400/F)
B827H13306003
I827H1330024-03
“A”
I827H1330051-01
1
“C”
“B”
I827H1330025-01
1
3
2
I827H1330026-01
1. Transfer input shaft 2. Transfer countershaft 3. Reverse idle gear
