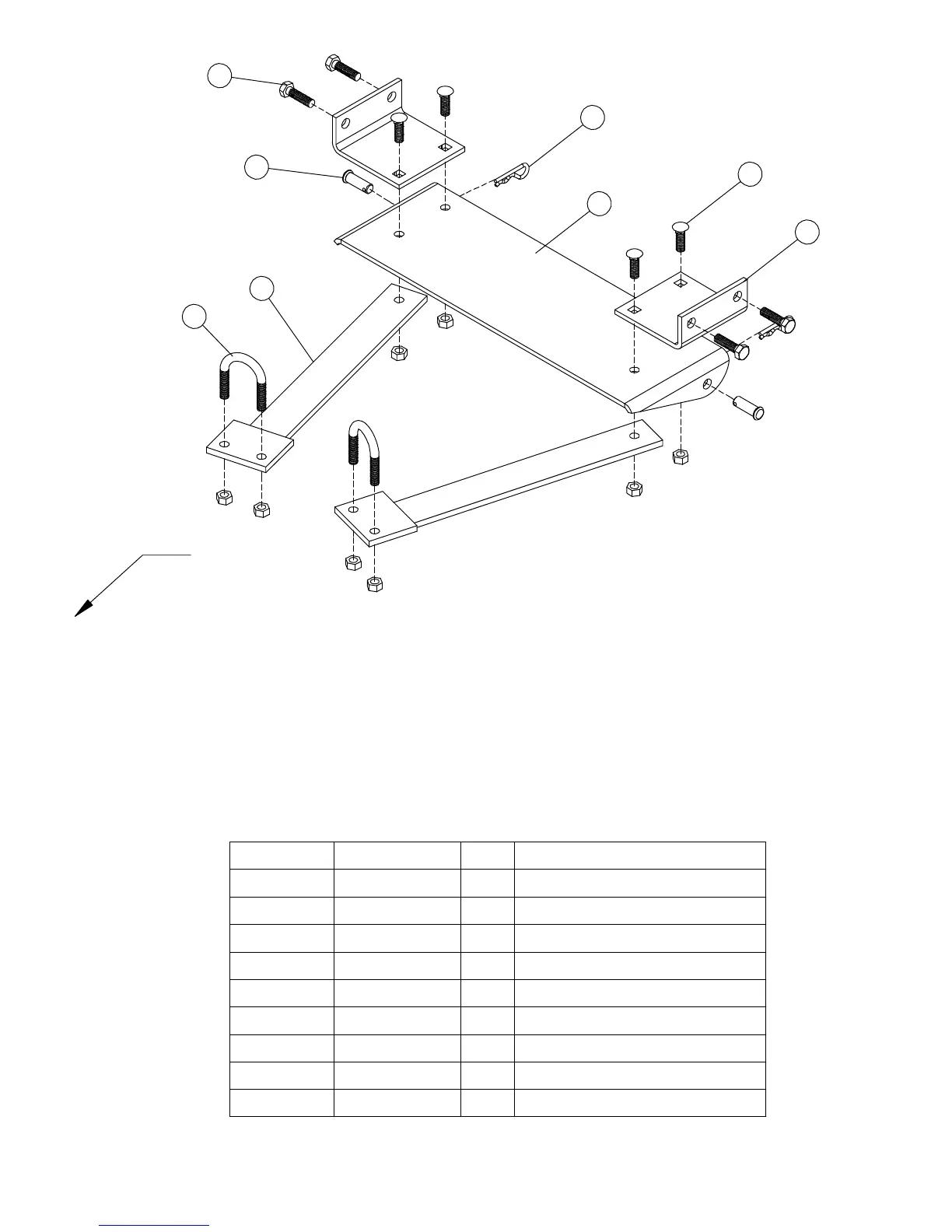

Suzuki QUADRUNNER - Attaching Bracket Parts List

1
5
3
2
4
6
7
8
15-4540
Attaching Bracket Kit
Parts List
FRONT OF ATV
ITEM NO. PART NO. QTY. DESCRIPTION
1 S1800 1 Attaching Bracket
2 S1801 2 Support Bar
3 S1803 2 Attaching Bracket Strap
4 UB516-1142 2 5/16" x 1-1/4" x 2" U-Bolt
5 CB516-1 4 5/16" x 1" Carriage Bolt
LN516NY 8 5/16" Nylock Nut
6 MB8-30 4 8 x 30 Metric Bolt
7 CP38-1 2 3/8" Clevis Pin
8 HP3 2 #3 Hair Pin
3
