YH4
GRAND
VITARA
1B-54 AIR CONDITIONING (OPTIONAL)

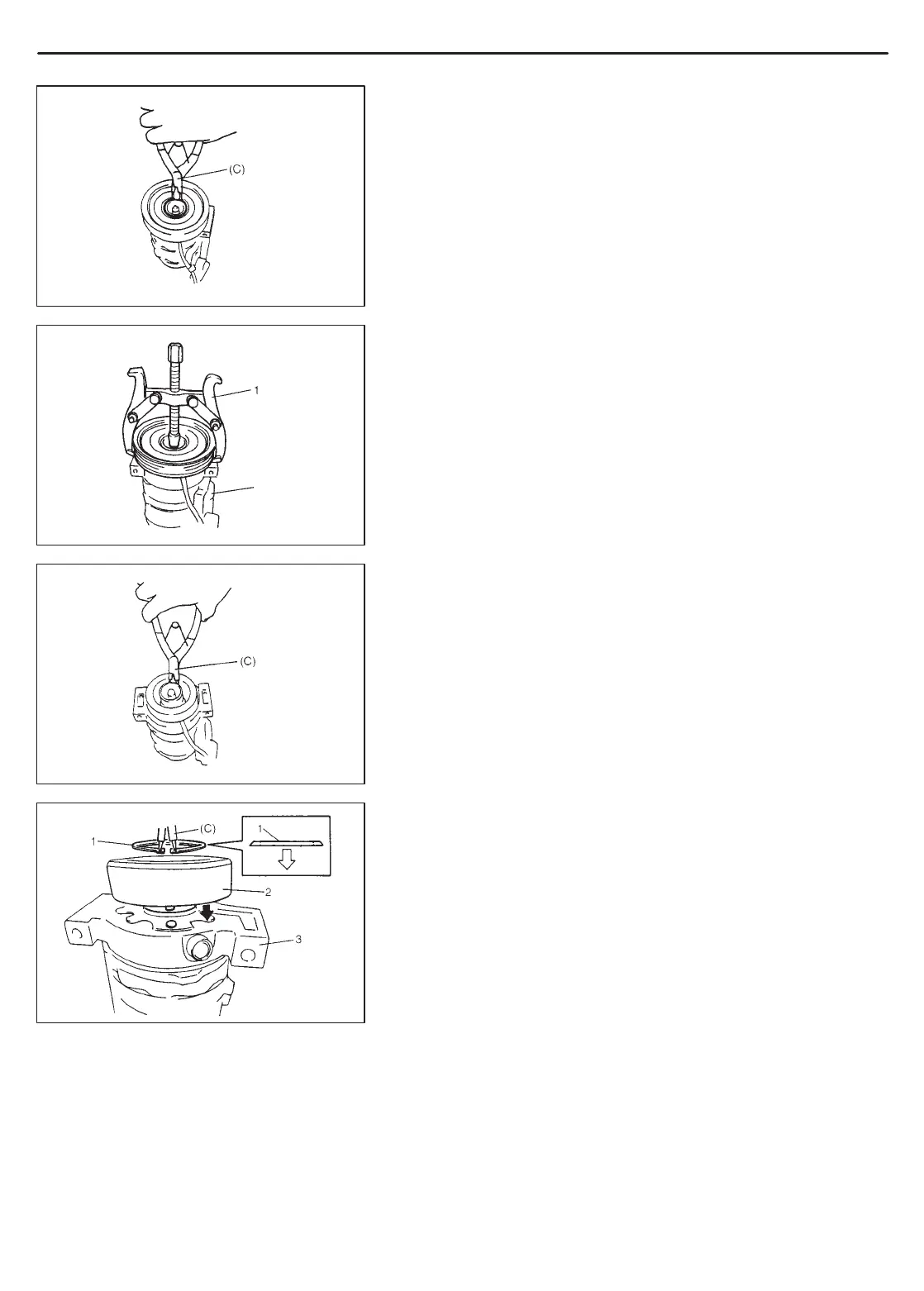

2
4) Remove shims from shaft.
5) Using special tool (C), remove circlip.
Special Tool
(C): 09900-06107
6) Remove clutch coil lead wire clamp screw, and remove clutch
coil read wire ground terminal.
7) Remove clutch pulley with puller (1) from compressor (2).
NOTE:
Be careful not to damage pulley when tapping magnet
clutch assembly.
8) Remove clutch coil.
Special tool
(C): 09900-06107
INSTALLATION
1) Install clutch coil (2).
Protrusion on under side of coil ring must match hole in com-
pressor (3) to prevent movement ant correctly locate lead wire.
2) Using special tool (C), install snap ring (1) as shown.
Special Tool
(C): 09990-06107
3) Install clamp portion and ground terminal of lead wire.
To Next Page
