YH4
GRAND
VITARA

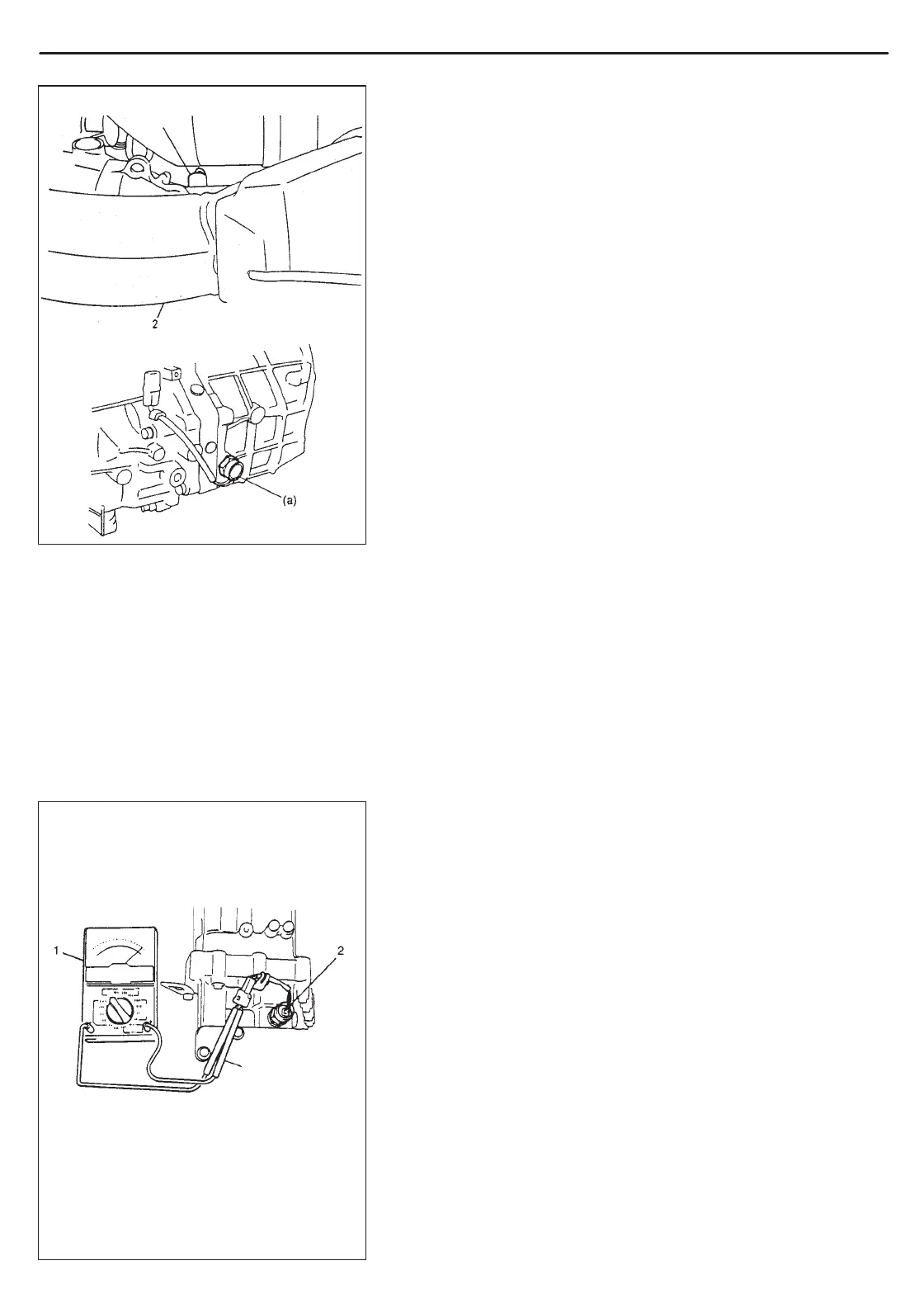

1. Back up light switch
2. Exhaust center pipe
1. Ohmmeter
2. Back up light switch or 4WD switch
1, (a)
[Type 1]
[Type 2]
MANUAL TRANSMISSION (TYPE 1) 7A-7
3) Replace switch, connect and clamp as they were.
Tightening Torque
(a): 20 N
.
m (2.0 kg-m, 14.5 lb-ft) (Type 1)
(a): 45 N
.
m (4.5 kg-m, 32.5 lb-ft) (Type 2)
4) When back up light switch has been replaced, check switch for
proper function with ignition switch turned ON and gear shifted
to reverse position. Turn OFF switch after checking its function.
INSPECTION OF 4WD SWITCH AND BACK UP LIGHT
SWITCH
1) Undo clamp and disconnect coupler of back up light switch
and/or 4WD switch.
2) Function of back up light switch can be checked as shown in fig-
ure.
There should be conduction at these terminals only when shift
lever is shifted to reverse position.
3) Function of transfer 4WD switch can be checked in the same
manner as back up light switch.
There should be conduction at these terminals when shift lever
is shifted to 4H, and 4L positions.
Upon completion of check, connect coupler and clamp wiring har-
ness as they were.
NOTE:
When replacing switch(es), use care not to let dust enter trans-
mission through switch hole(s).
