YH4
GRAND
VITARA
7E-14 DIFFERENTIAL (FRONT)

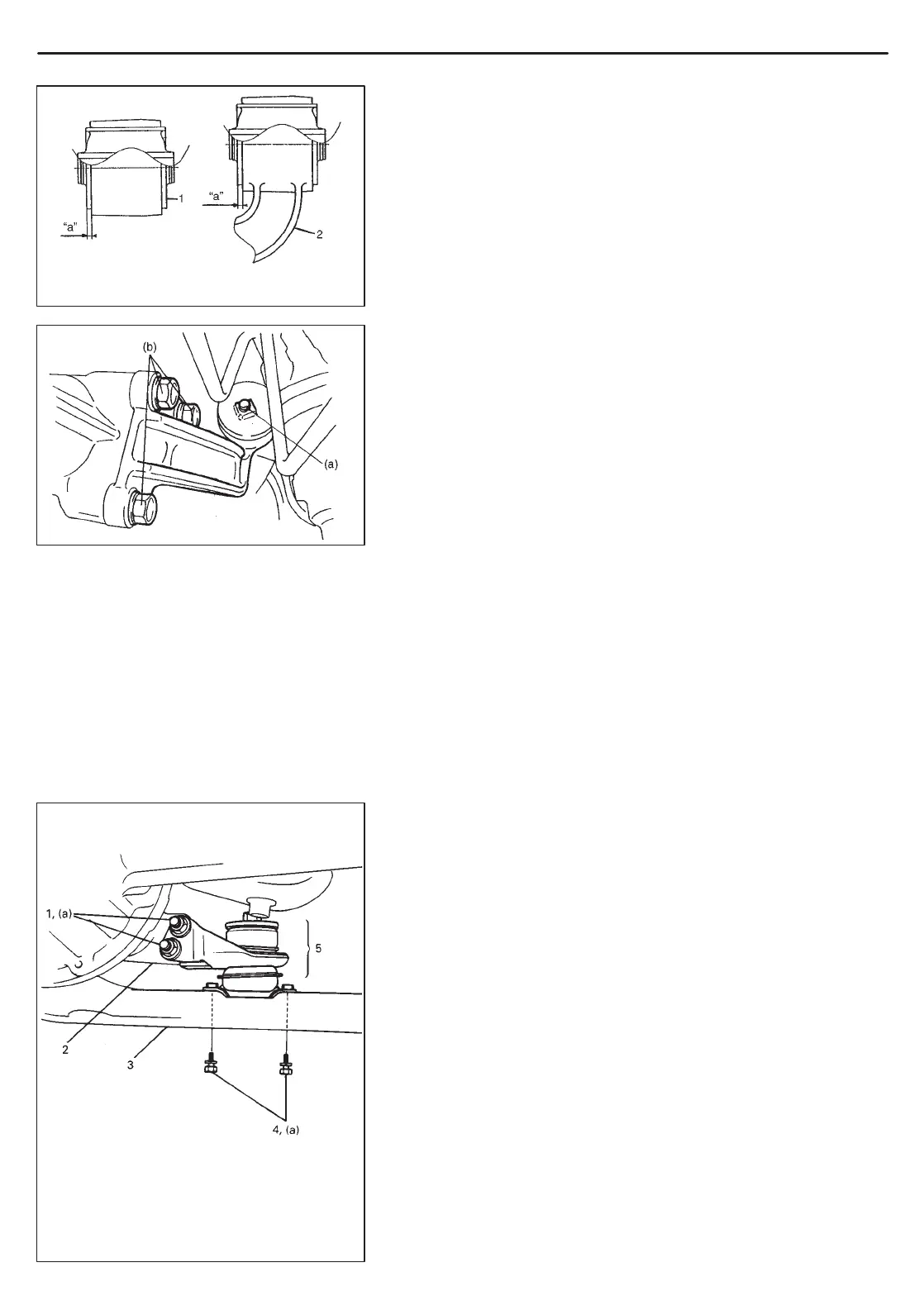

1. Mounting bracket R
2. Mounting bracket L
1. Bolt and nut
2. Differential carrier
3. Cross member
4. Bolt
5. Differential rear mounting assembly
7) Position each bush to bracket as shown.
Length “a”: 3.0 mm (0.12 in.)
8) Use following torque for reinstallation.
Tightening Torque
(a): 85 N
.
m (8.5 kg-m, 61.5 lb-ft)
(b): 50 N
.
m (5.0 kg-m, 36.5 lb-ft)
REAR MOUNTING
(For front differential carrier)
1) Lift up vehicle and remove mounting assembly by removing 2
bolts and nuts from differential carrier side and 2 bolts from cross
member side.
2) Check mounting rubber for damage or deterioration and replace
as necessary.
3) Use following torque for reinstallation.
Tightening Torque
(a): 50 N
.
m (5.0 kg-m, 36.5 lb-ft)
To Next Page
