10B-8 AIR BAG SYSTEM
INTERMITTENT AND POOR CONNECTIONS

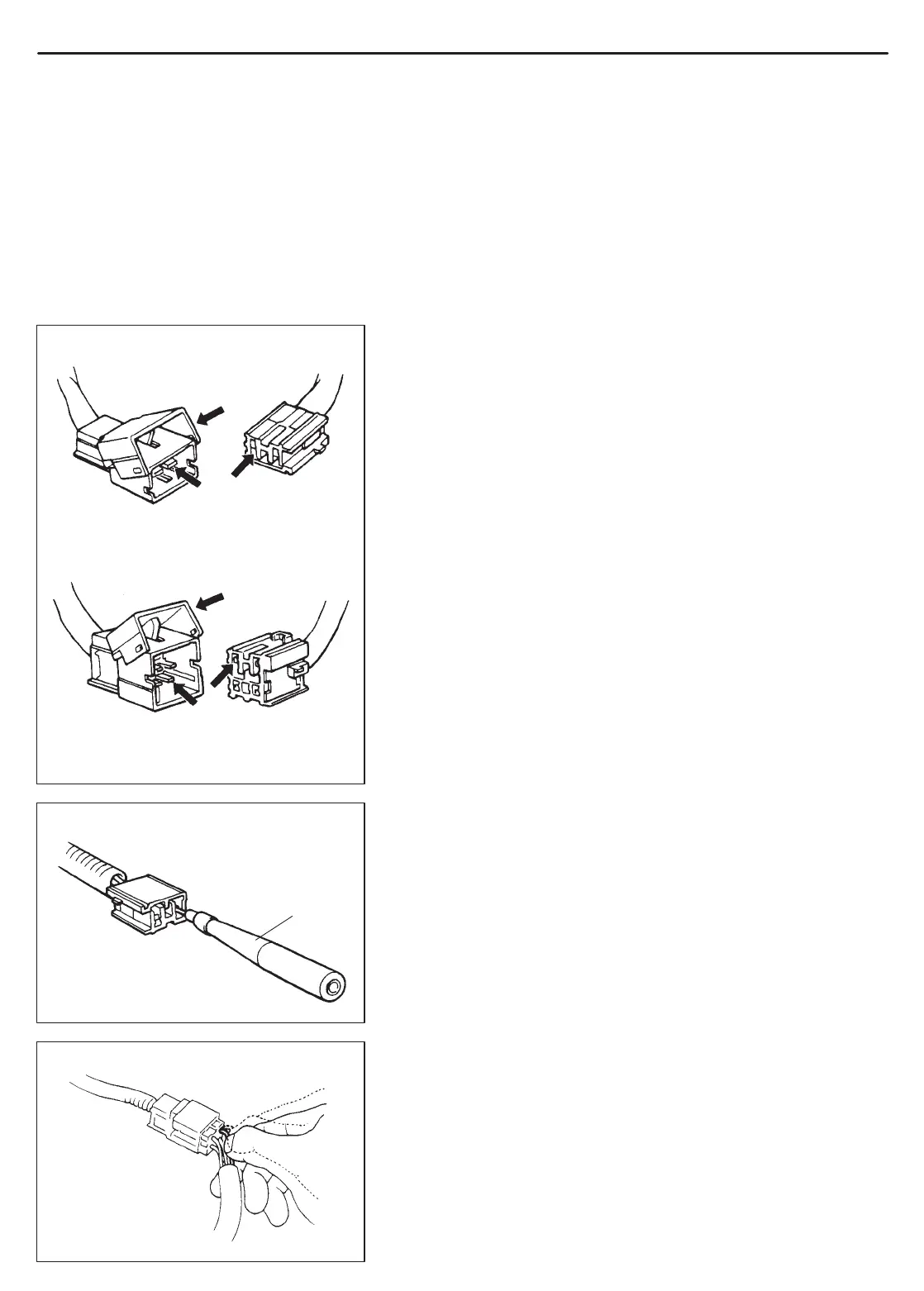

Most intermittent are caused by faulty electrical connections or wir-
ing. When a check for proper connection is requested in a diagnos-
tic flow table, perform careful check of suspect circuits for:
Poor mating of connector halves, or terminals not fully seated in
the connector body (backed out).
Dirt or corrosion on the terminals. The terminals must be clean
and free of any foreign material which could impede proper termi-
nal contact.
However, cleaning the terminal with a sand paper or the like is
prohibited.
Damaged connector body, exposing the terminals to moisture
and dirt, as well as not maintaining proper terminal orientation
with the component or mating connector.
Improperly formed or damaged terminals.
If any abnormality is found, repair or replace as a wire harness as-
sembly.
Check each connector terminal in problem circuits carefully to en-
sure good contact tension by using the corresponding mating termi-
nal included in the connector test adapter kit (special tool).
If contact tension is not enough, reform it to increase contact ten-
sion or replace.
Special Tool (Connector Test Adapter Kit)
(A): 09932-76010
Poor terminal-to-wire connection.
Check each wire harness in problem circuits for poor connection
by shaking it by hand lightly.
If any abnormal condition is found, change the wire harness as-
sembly or component parts with new ones.
