MANUAL TRANSAXLE (M13 ENGINE) 7A2-23

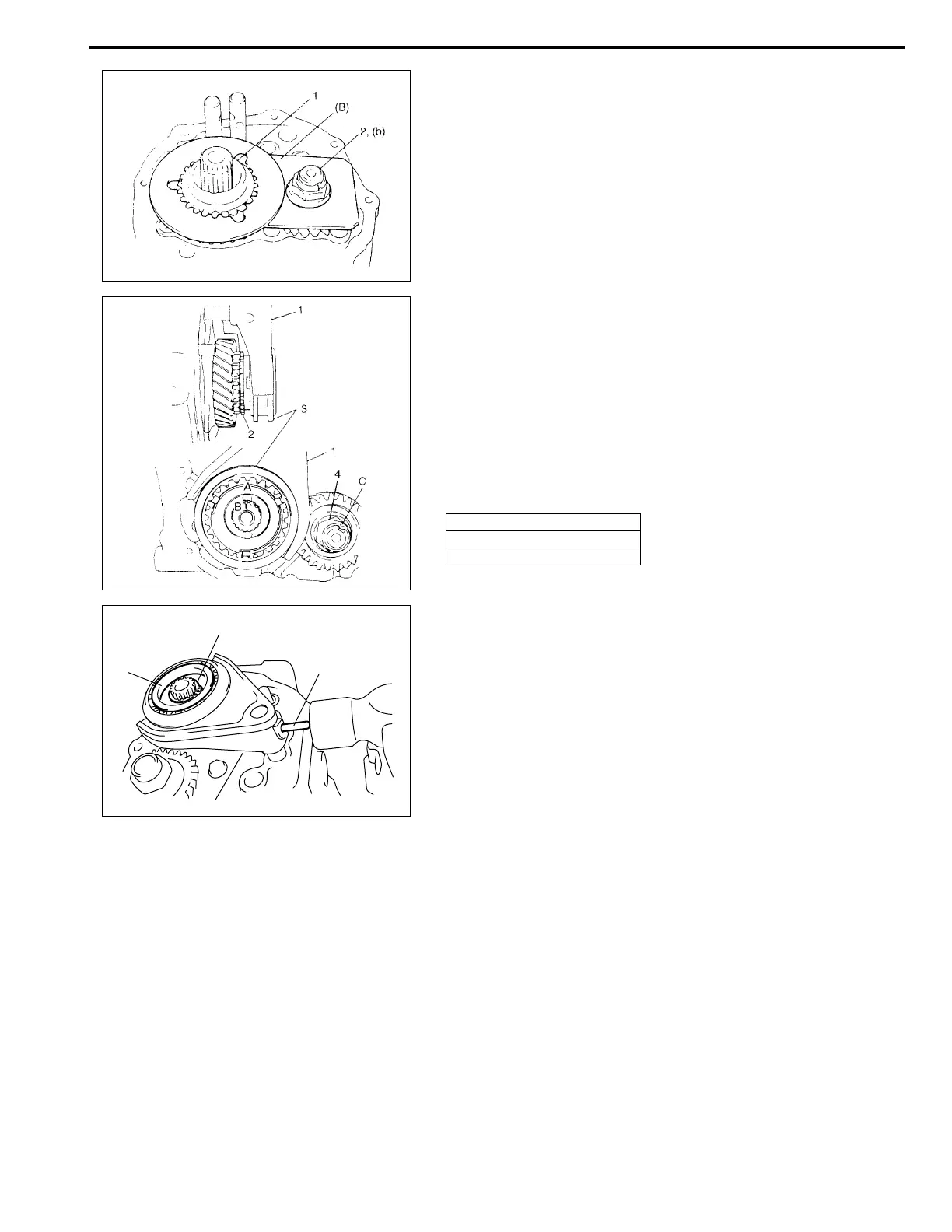

8) Install needle bearing of separated steel cage type to input
shaft, apply oil then install 5th gear (1) and special tool to
stop shaft rotation.
Special tool
(B): 09927-76010
9) Install new countershaft nut (2) and tighten it to specification.
Tightening torque
Countershaft nut (b): 70 N·m (7.0 kg-m, 51.0 lb-ft)
10) Remove special tool, then caulk countershaft nut (4) at C
with caulking tool and hammer.
11) Install synchronizer ring (2).
12) Fit 5th gear shift fork (1) to sleeve & hub assembly (3) and
install them into input shaft, shift shaft and shift guide shaft at
once aligning hub oil groove A with shaft mark B.
13) Drive in spring pin (1).
14) Fit hub plate (3) and fix it with circlip (2).
NOTE:
Long flange of hub faces inward (gear side).
A: Oil groove (Align with B)
B: Punch mark
C: Caulking
3
2
1
