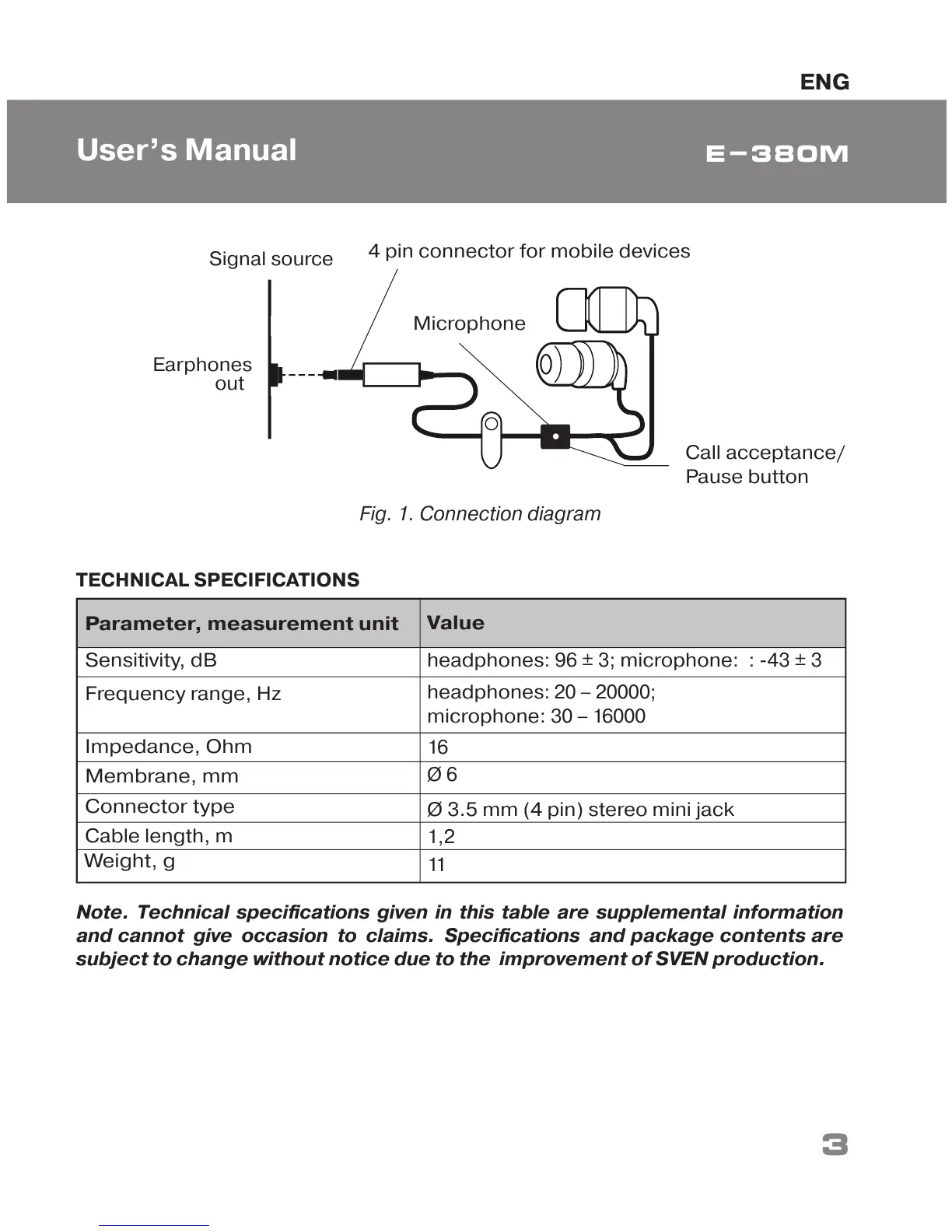

Sven E-380M - Technical Specifications and Diagram; Connection Diagram; Technical Specifications

ENG
3
TECHNICAL SPECIFICATIONS
Parameter, measurement unit
Sensitivity, dB
Frequency range, Hz
Impeda n ce, Ohm
Membrane, mm
Connector type
Cable length, m
Weight, g
Value
headphones : 96 ± 3; microphone: : -43 ± 3
headphones : 20 – 20000;
microphone: 30 – 16000
16
Ø 6
Ø 3.5 mm (4 pin) stereo mini jack
1,2
11
Note. Technical specifications given in this table are supplemental information
and cannot give occasion to claims. Specifications and package contents are
subject to change without notice due to the improvement of SVEN production.
e-380M
4 pin connector for mobile devices
Fig. 1. Connection diagram
Signal source
Earphones
out
Microphone
Call acceptance/
Pause button
User’s Manual
