Sven HT-200 - Connecting Speakers and Antenna

ENG
6
5.1 Active Home Theater
Speaker System
Connecting speakers to the subwoofer
• Connect the speakers to the subwoofer AUDIO OUTPUT n as shown in Fig. 6 using audio cables
(included). Mind that the (+) terminals of the speakers should be connected to the (+) terminals of
the subwoofer (+ о +), while (–) terminals of the speakers should be connected to the (+) terminals
of the subwoofer (– о –).
• Check the correctness of connection polarity and the absence of contact between bared wires
and metal parts of the equipment (see connection diagram in Fig. 6).
Installing and connecting the FM antenna
• Insert the included indoor FM antenna into the FM ANT i jack on the subwoofer rear panel, as
shown in Fig. 6. Install the FM antenna in such a way that reception quality is satisfactory, and then
ԛx the position of the antenna.
Note. In buildings with weak FM signal use an outdoor FM antenna.

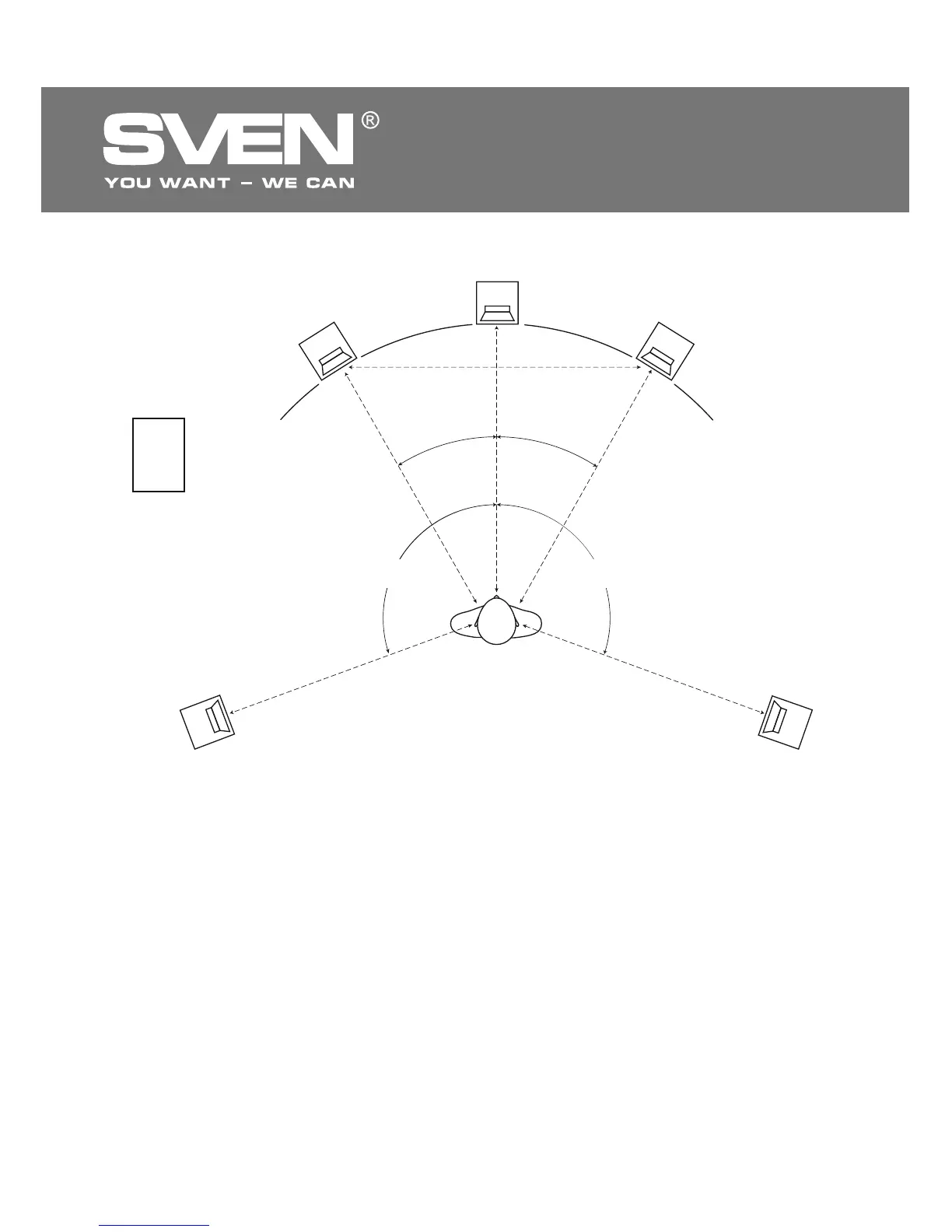

Fig. 5. Speaker placement
A
AA
A
A
A
30° 30°
110° ± 10° 110° ± 10°
Front right
speaker
Front left
speaker
Subwoofer
Rear left
speaker
Rear right
speaker
Center
speaker
