Portable Speaker System
withBluetooth and FM-radio
Radio mode
To improve the quality of radio reception, connect the microUSB ― USB cable (included) tothemi-
croUSB input h or the mini-jack signal cable to the mini-jack (included) to the AUX j input.
• Turn on the speaker system ― press button e several times until, the radio mode will turn on.
Longterm pressing button b activates auto search mode. After scanning completion, therst
scanned radio station will start to operate automatically. With buttons c and d (long pressing)
select a desired radio station.
Player mode
Attention! The le system of a micro SD carrier is FAT32. Maximum volume is 32 GB. It is not rec-
ommended to use the micro SD Ultra Speed.
• The system will enter the Player mode automatically when a carrier (USB ash or SD card)
isconnected to corresponding ports. Use button b to switch between Play/Pause modes. You
can control tracks by using buttons c (previous track) and d (next track) (long pressing).
Connecting an additional speaker
For model «SVEN PS-160» you can connect an additional speaker:
• Turn on both speakers (long press button a) Select Bluetooth mode. On both speakers, thein-
dicator will ash blue light ashes.
• On both speakers, long press button e. The speakers will connect with each other.
The use in the wired mode (AUX)
• Connect the 3.5 mm mini-jack cable to the 3.5 mm mini-jack (included) to the AUX input
andthe3.5 mm jack to the signal source.
• Turn on the speaker in AUX mode ― press the button e several times until the speaker goes
into AUX mode.
* You might have to enter «0000» code to connect some models of devices via Bluetooth.
** If the item has been already registered in the device list of a source, then the second search
mode activation is not obligatory. Choose the item name «SVEN PS-160» and the «connect»
command on the source.
USB to micro USB
power cable
USB jack
Mini-jack to mini-jack
signal cable
Mobile
device
PC
Socket

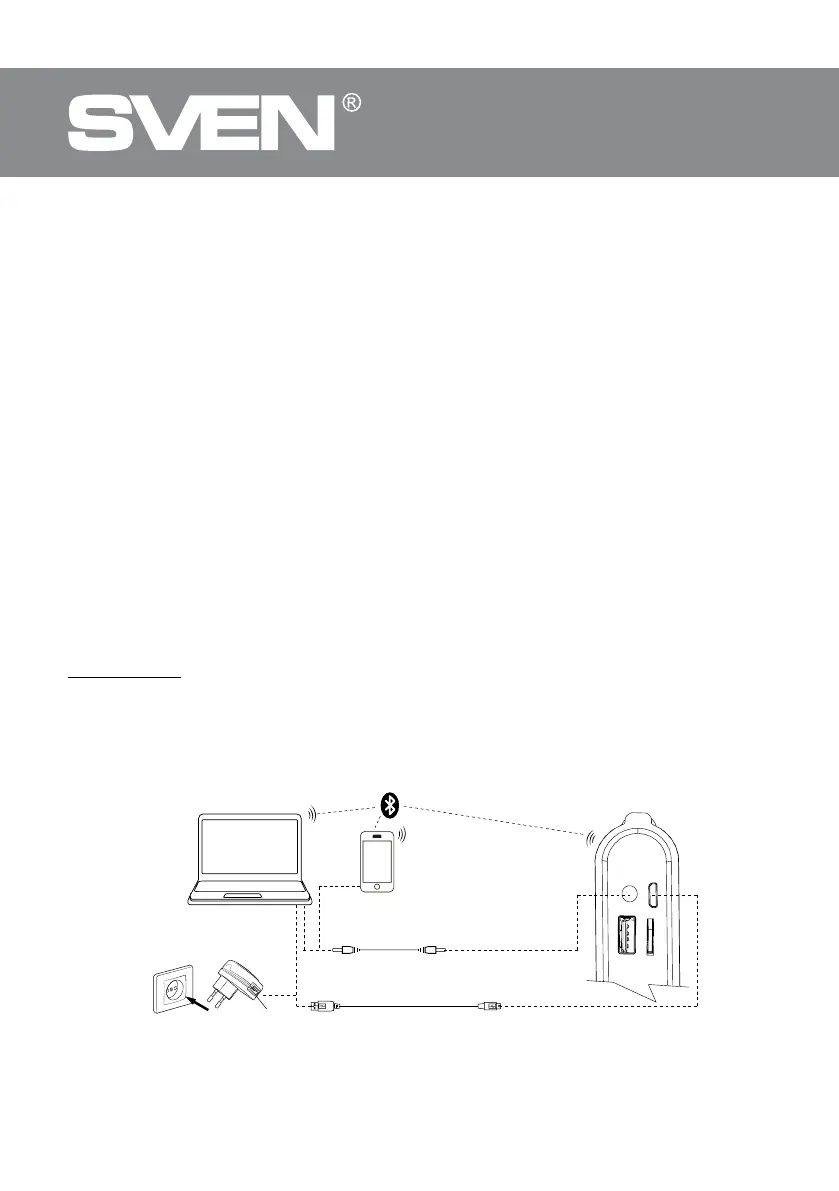

Fig. 2. Connection diagram
