FIRE DAMPER - FD
PRODUCT OVERVIEW
DIMENSIONS
INSTALLATIONS
ACTUATORS
ACCESSORIES
REPLACEMENTS
MAINTENANCE AND OPERATION
Spare parts
Smoke sensor FD-A-UG-5-AFR-24V
Smoke sensor FD-A-UG-5-AFR-230V
A Sampling tube FD-A-ST5
B Rubber gasket FD-A-HFU204
C Isolation extension FD-A-HFU500

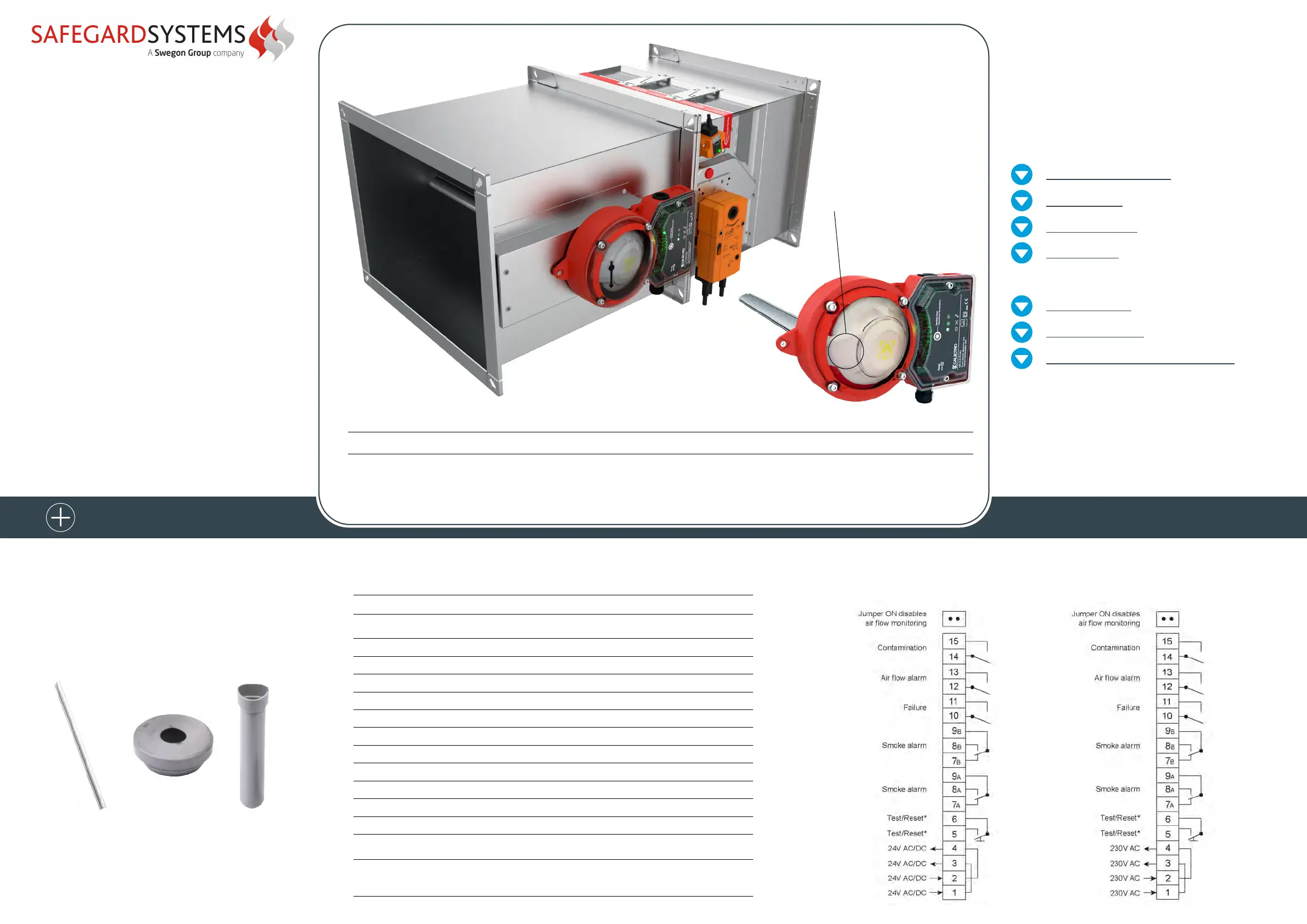

SMOKE SENSOR
ASSEMBLY
FD-SSA
Smoke sensor assembly is developed to detect
smoke in ventilation ducts and combines a smoke
detector and an adaptor system where both tube and
housing are specially designed for optimum airflow
through the smoke detector. Smoke sensor provides
the signal for the fire damper which is activated when
smoke is detected. Smoke sensor assembly consists
of casing (length: 415 mm), smoke sensor and
specially designed venturi pipe inside the duct.
For proper functioning of the smoke sensor (as it
is physically connected as in the render above) a
straight length of 5 times hydraulic diameter, in the
size of the connecting duct, should be in front of the
sensor. When the sensor is installed separate from
the fire damper there are two conditions to be met:
1) Length of 5 times hydraulic diameter, in the size of
the connecting duct, should be in front of the sensor.
2) Length of 3 times hydraulic diameter, in the size of
the connecting duct, should be after the sensor.
dh=(2xHxB)/(H+B)s, dh - hydraulic duct diameter.
Wiring diagram
Technical specifications
FD-A-UG-5-AFR-24V FD-A-UG-5-AFR-230V
Voltage Supply
24V AC/DC -15%, +10%
Not polarity sensitive
230V AC -15%, +10%
Not polarity sensitive
Detector type Optical UG-5-AFR-24V
Optical UG-5-AFR-230V
Max. power consumption 220 mA 30 mA
Operating temperature -10°C to +55°C
Maximum humidity 99% rH
Duct air velocity range 1 to 20 m/s
Approvals VdS CE, EN-54-27
Relay output Potential free
Smoke alarm relays Two changing contacts 250V, 8A
Service alarm One breaking contact 250V, 5A
System error alarm One breaking contact 250V, 5A
Low Flow alarm: One breaking contact 250V, 5A
LED on smoke detector:
Green - service alarm (contamination)
Red - smoke alarm
LED on PCB:
Green - normal operation
Yellow - system error
Yellow - Low-Flow
FD-A-UG-5-AFR-24V FD-A-UG-5-AFR-230V
(1) Type (2) Accessories (3) Dimension (4) Voltage
FD-A - SSA - 400x300 - 24
(1)
(2)
FD-A - Accessories for fire damper
SSA - Smoke sensor assembly
(3)
(4)
BxH nominal size of the rectangular fire damper
24 - Smoke sensor 24 V
230 - Smoke sensor 230 V
A
B
C
AIR FLOW DIRECTION
