FIRE DAMPER - FD
PRODUCT OVERVIEW
DIMENSIONS
INSTALLATIONS
ACTUATORS
ACCESSORIES
REPLACEMENTS
MAINTENANCE AND OPERATION
REPLACEMENT OF
THERMAL FUSE
(R40)
Video instructions

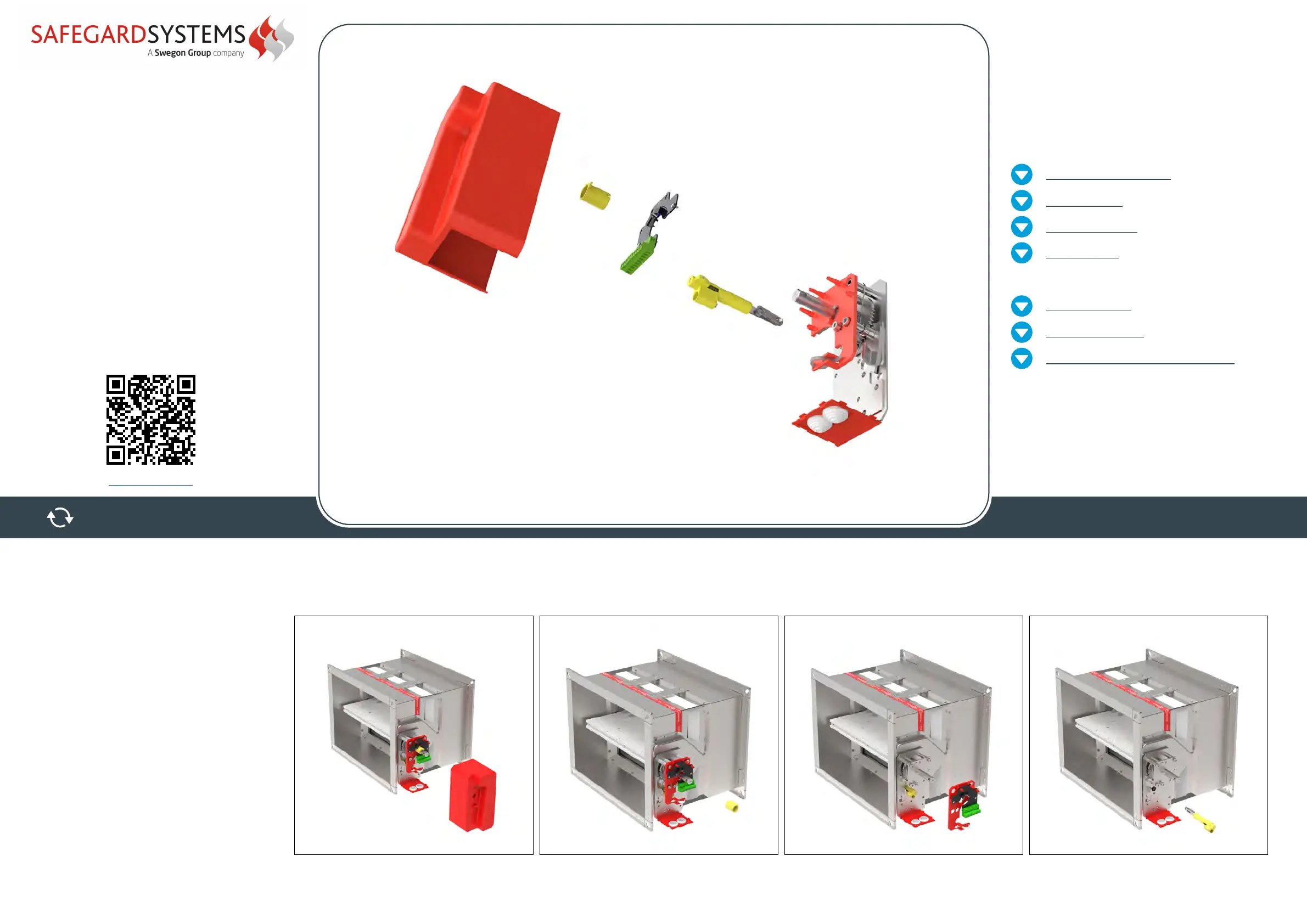

1. Find the hex screw located on the cover,
unscrew and remove the screw and the cover.
2. Remove the position indicator sleeve.
3. Locate the 3 hex screws. Unscrew them.
Remove the CEDC board (if applicable).
4. Locate the screw on the thermal fuse.
Unscrew it. Remove the old thermal fuse.
Insert a new thermal fuse. Put the CEDC board
and the cover back in place.
Test the operation of the damper blade!
2
1
43
REPLACEMENTS
