Electrics
71
INSTRUCTION
WARNING!
• Use precaution when mounting the battery,
as batteries contain acid liquids which can
cause severe injuries and damage when
handled incorrectly. Refer to the
instructions on the battery.
• No smoking is allowed in the area of the
Battery Box!
• Please note that the CE socket has a max
of 16 amp.
• The Thetford Battery Box is designed for
use with foot mounted batteries. These are
recognizable by the rim around the bottom
edge of the battery. This rim will locate
against the back wall of the Battery Box
and the angle metal bracket, which is
screwed into place when the battery is
fitted. The depth of the battery including
rim should be between 173mm and
175mm.
• This product meets the latest version of the
EN 1648 part 1 and 2 standard.
Before placing the battery inside the
Battery Box, the adjacent battery should be
placed into the Soft Tray and rested on the
ground adjacent to the Battery Box.
Carefully connect the electrical wires (the
red cable attaches to the + pole and the
black cable to the - pole of the battery).
Note! Incorrect connection of the cables will
cause a short circuit with potential
hazardous consequences. After mounting
the terminals, lift the battery together with
the Soft Tray into the middle of the Battery
Box compartment. Push the Soft Tray with
battery to the back of the Battery Box, into
the safeguard bulge. If necessary shift the
Soft Tray to the right or left until the battery

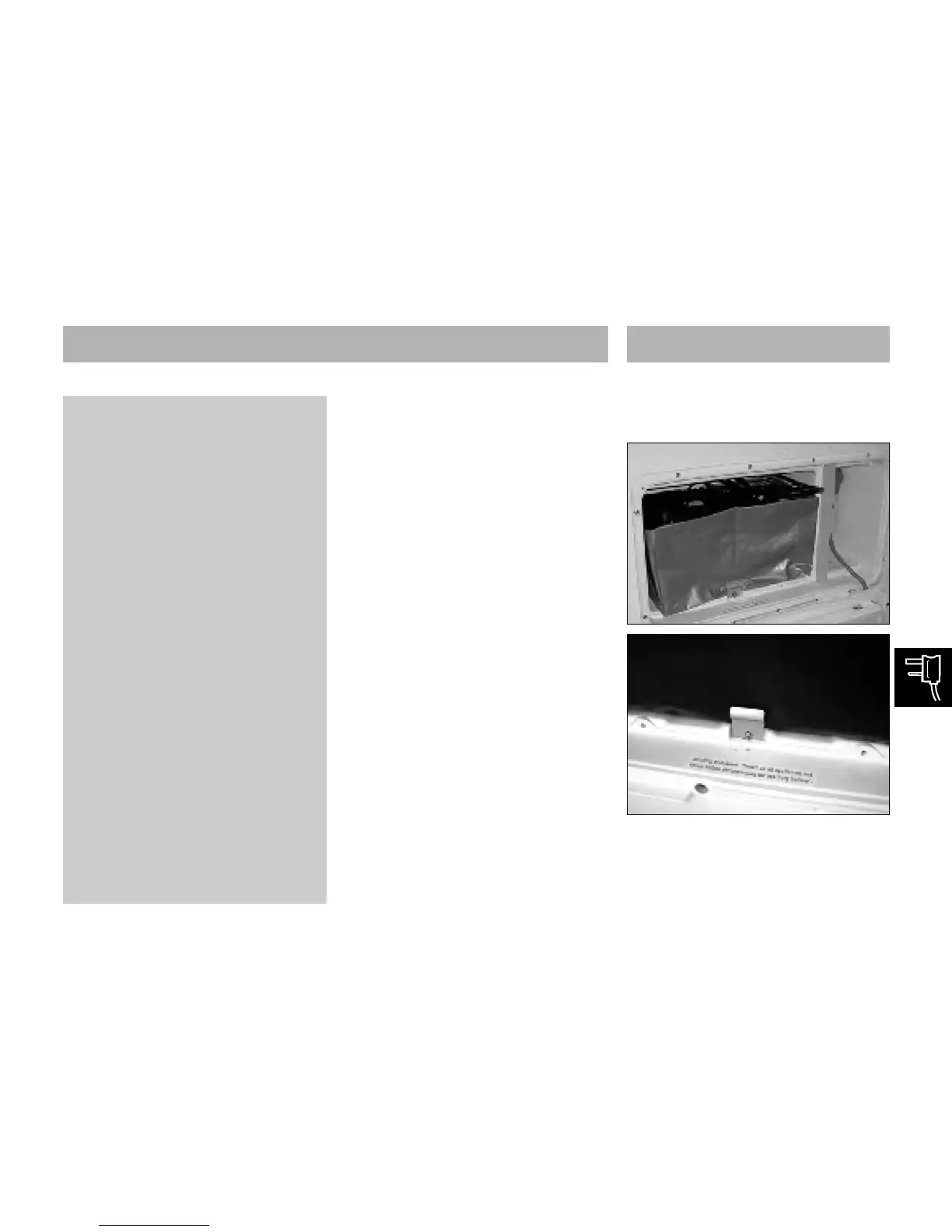

is in place in the safety area (see photo 1).
The battery is located in the compartment by
the manual clamping plate. This has to be
screwed to the front of the box (screw is
enclosed in package). Please ensure that the
Soft Tray is pulled up tightly (to remove
creases) before the plate is tightened. The
rounded edge of the clamp prevents damage
to the Soft Tray. Do not apply extreme force
to the screw.
When disassembling, follow this procedure
in reversed order. Note! Always check the
Soft Tray for acid first! If found, take safety
precautions (such as protecting clothing,
body and especially the eyes). In case of
contact with acid, immediately rinse with
plenty of water. Follow regulations
concerning these chemicals.
Tip! Generally, car workshop and gas station
employees are familiar with this matter.
When attaching the 220/230 volts cable on
the CE socket, the maximum recommended
thickness of the cable is 10 mm. When
closing the door, the attached cable is to be
fed through the slot at the bottom right of
the door.
Photo 1
Photo 2
