Swift Bolero User Manual

94
Cassette Blind and Flyscreen
Always hold the end rod in the middle. When
closing blinds, slide the end rod of the
flyscreen blind on to the end rod of the sun
blind and engage. To open the blind push the
end rods towards the darkening blind to the
edge and disengage the end rods. Now
move the end rod of the flyscreen back by
hand - do not let it recoil.
WINDOWS
To open press the knobs in the middle of the
catches and turn through 90°. Swivel the
pane open as required.
To close the window, open the window as far
as possible and slowly close again, turn the
catches through 90° to close.
All opening windows have two catch
positions. The first position is for ventilation
the second seals the window from ventilation
and rain.
MINI HEKI ROOFLIGHT
To open depress button and push bar
upwards. The rooflight has two open
ventilation positions and a fully open
position.
The blind and flynet operate independently of
each other and are engaged by connecting to
each other and sliding.
HEKI-2 ROOF LIGHT (SEITZ)
The lift/tilt roof light can be set in 3 positions
by means of pneumatic springs.
Position 1 lifts the pane 12mm without
allowing rain to enter the motorhome.
Position 2 sets the pane to a 150mm
opening and locks with a bar.
Position 3 opens the pane through 55°.
A fully adjustable flyscreen and black-out
screen are built into the inner frame. The
flyscreen can be drawn independently and
the black-out screen is variable for partial or
full black-out.
Forced ventilation functions via a brush lined
duct instead of a ventilated pane.
A cover hood can be fitted for winter
protection.
Heki-2 roof lights provide 13,200mm
2
of fixed
ventilation.
Close the roof light completely before
driving.
Do not operate whilst the vehicle is moving.
Do not stand on the roof light.
Do not leave your vehicle whilst the roof light
is open.
HEKI-3 ROOF LIGHT (SEITZ)
OPERATING INSTRUCTIONS
Opening/closing the acrylic dome (Fig. 1)
To open, turn the crank until a resistance is
felt (maximum opening angle - 70 degrees)
To close, turn the crank until the acrylic
dome is lying flat, then turn the crank for
another
2-3 turns to lock the rooflight completely. To
check whether the rooflight is properly
locked, try to push the acrylic dome upwards
with your hand.
Opening/closing the blind and fly-net
(Fig. 2)
Closing
- Pull the end rod (without the catch/blind)
from the recessed part and engage it with
the opposite end rod with the catch.

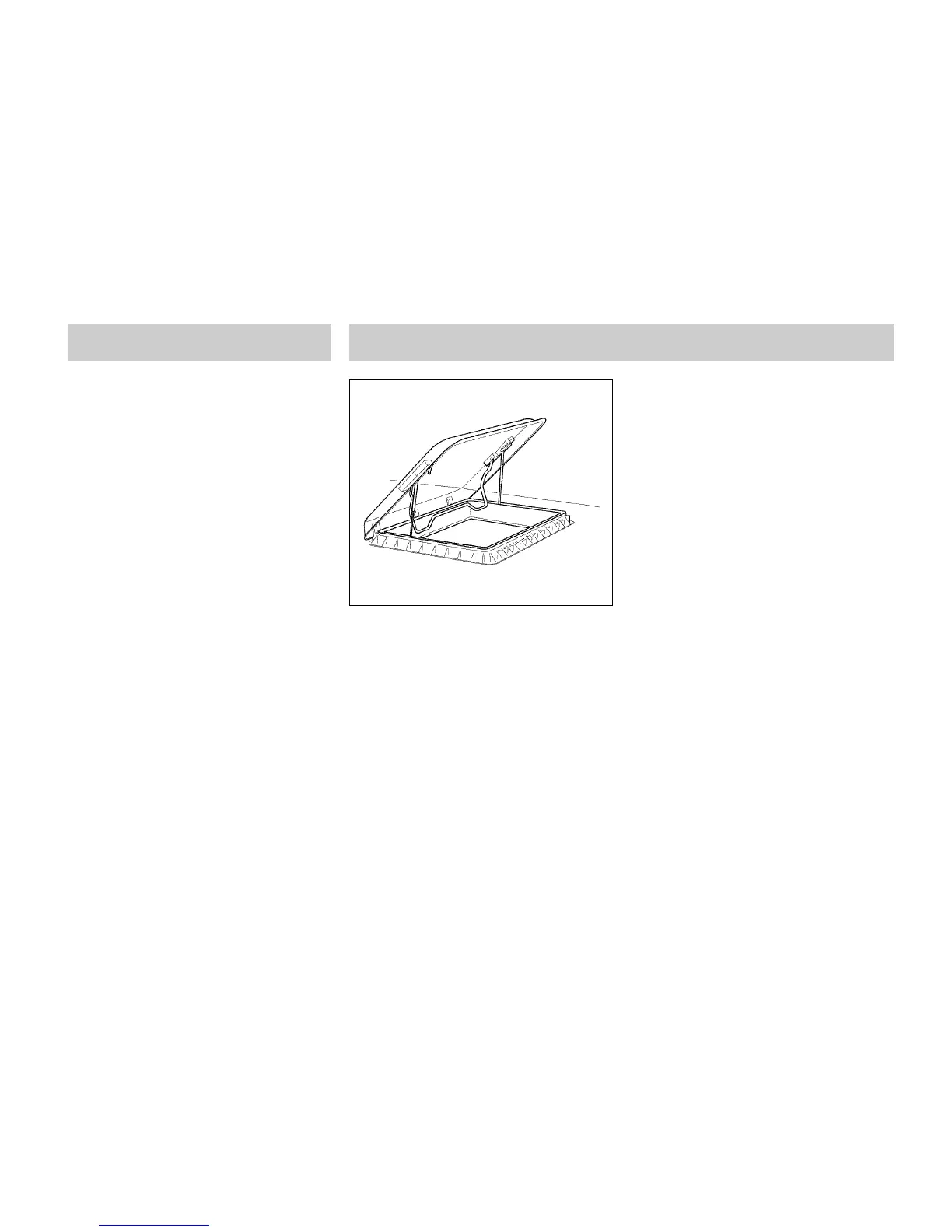

Heki-2 Roof Light
Equipment Details
