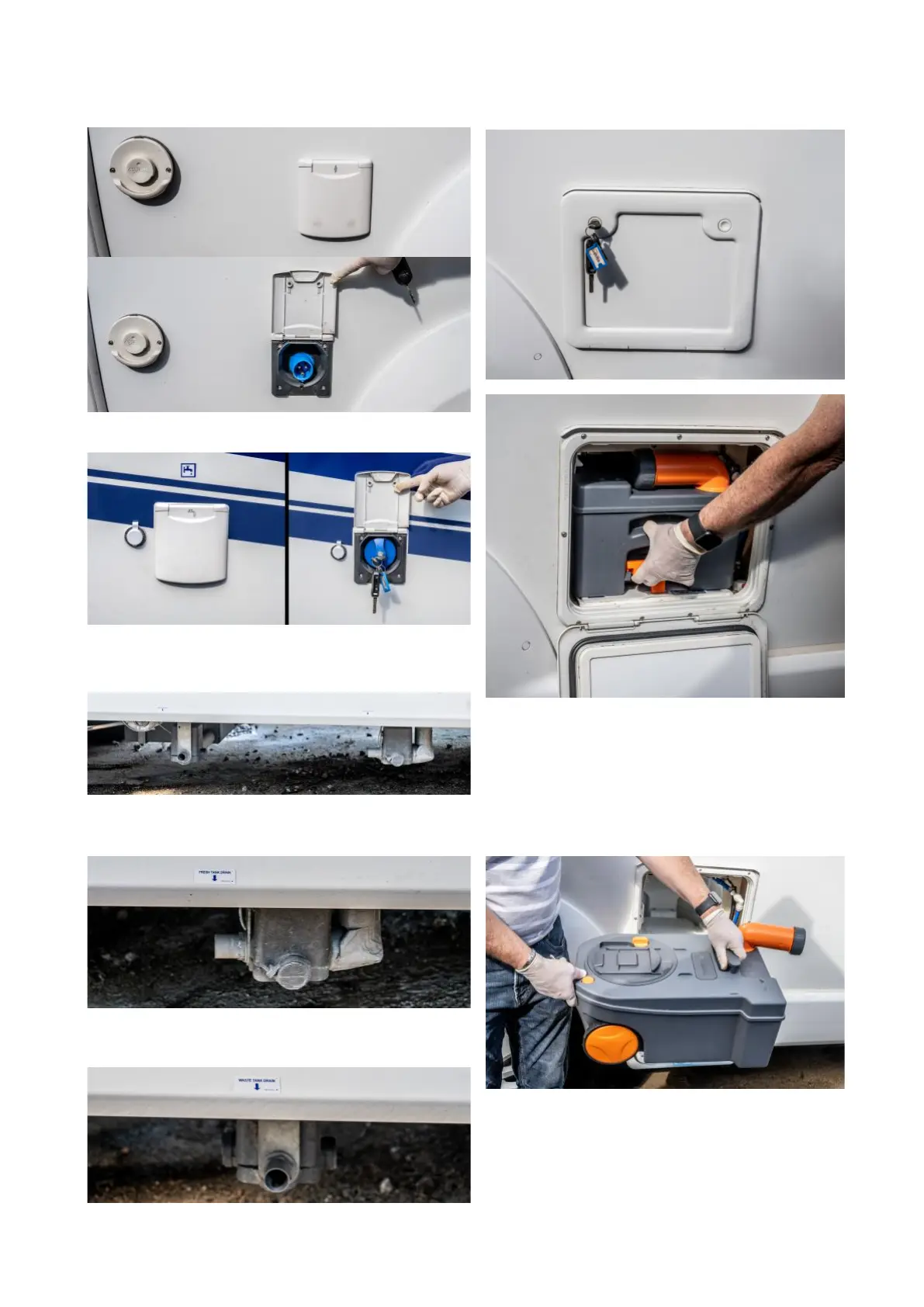

Power connection for electric Hook up
Water filling cap for FRESH water 85 L tank
Fresh and waste tank drains both on the
drivers side
Fresh tank drain, controlled from the
command panel
Waste drain, controlled from the command
panel
Before removing the toilet, cassette make
sure the lever on the toilet is in the closed
position do not try to force the cassette
out. If the lever is in the correct position it
will slide out
Grip and pull to release
Turn the orange pipe to empty, once
cleaned add one cap of the toilet
chemical and 2L of water. Replace the cap
and re fit the cassette
