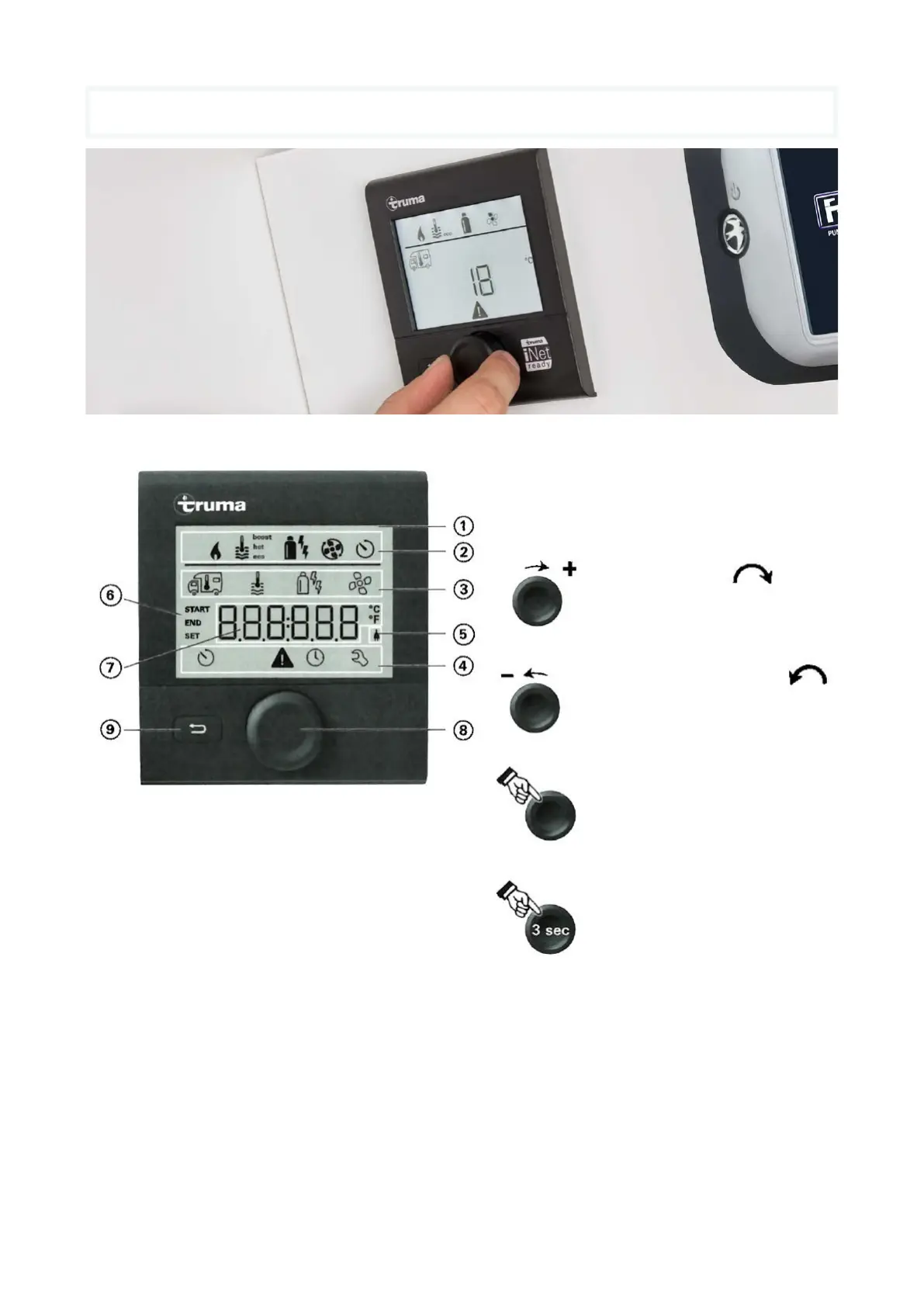

Display and operating elements
1. Display
2. Status line
3. Menu line (top)
4. Menu line (bottom)
5. Power supply
display 120 VAC
(mains supply)
Rotary push button
The rotary push button (8) is used to select
and change set points and parameters; it is
then tapped to save the values. Selected
menu items flash.
Turn clockwise
•
The menu is scrolled
through from left to right .
•
Increase values (+).
Turn counterclockwise
•
The menu is scrolled
through from right to left .
•
Reduce values (-).
Tap
•
Save a selected value.
•
Select a menu item, go to
the setting level.
Press (3 seconds)
•
Main switching function -
control panel on/off.
Description
•
A rotary push button(8) is used to select menu
items in the menu lines (3 + 4) and to adjust
settings.
•
Information is shown on a backlit display (1).
•
The Back button (9) is used to go back to a
previous menu.
6. Time switch display
7. Settings/values
8. Rotary push button
9. Back button
Back button
Press the Back button (9) to go back to a
previous menu and cancel settings. This
means that the previous values remain
unchanged.
Instructions for use
•
If there is an interruption to the power supply, the clock has to be reset.
•
If a new furnace is connected to the bus system of the control panel, repeat the procedure
described in "Initial start-up".
