28

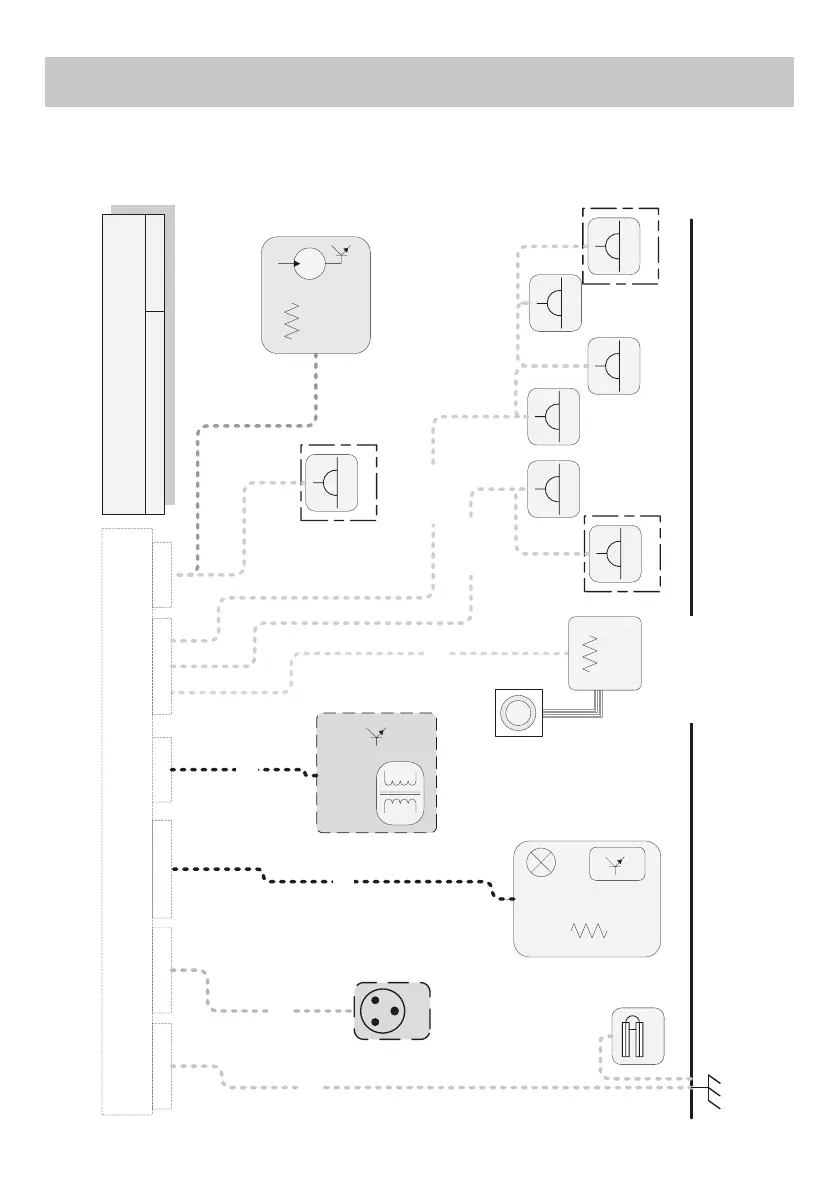

Wiring Diagrams - 230V Circuits
Sprite, Sprite Super, Challenger, Eccles, Challenger X, Eccles X,
Elegance & Elegance Grande
230v socket
PSUpartnumberEC602
Vehicle chassis Earth
Connector 1 (pins)
Copyright Sargent Electrical Services Ltd. 2017 allrights reserved. Subjecttochangewithout priornotice.
Heater control
3core1.5mm
Yellow outer
3Way
10w
Refrigerator
Lamp
E1 Earthbond
Single core 4.0mm
Green/Yellow
Connector2 (skts) Connector 3
230v socket
3 core 1.5mm
White outer
3 core 1.5mm
White outer
3core1.5mm
Black outer
Inputconnector
IEC309 Input
connector
3 core 2.5mm
Orange outer
Gaspipe
230V Circuits
Swift Caravans
SARGENTELECTRICALSERVICESLTD Issue 01 21/05/18
Heater
Element
External 230v
socket
Whitecablesshown in Grey
ThequantityofSockets vary from
modeltomodel
Option
Option
M
unit
Air conditioning
Connector 4
PX300 Electronic
Battery Charger
3 core 1.5mm
Black outer
230v socket
230v socket
Option
230v socket
230v socket
Option
