SWITCH MADE USER MANUAL
w w w . s w i t c h - m a d e . com

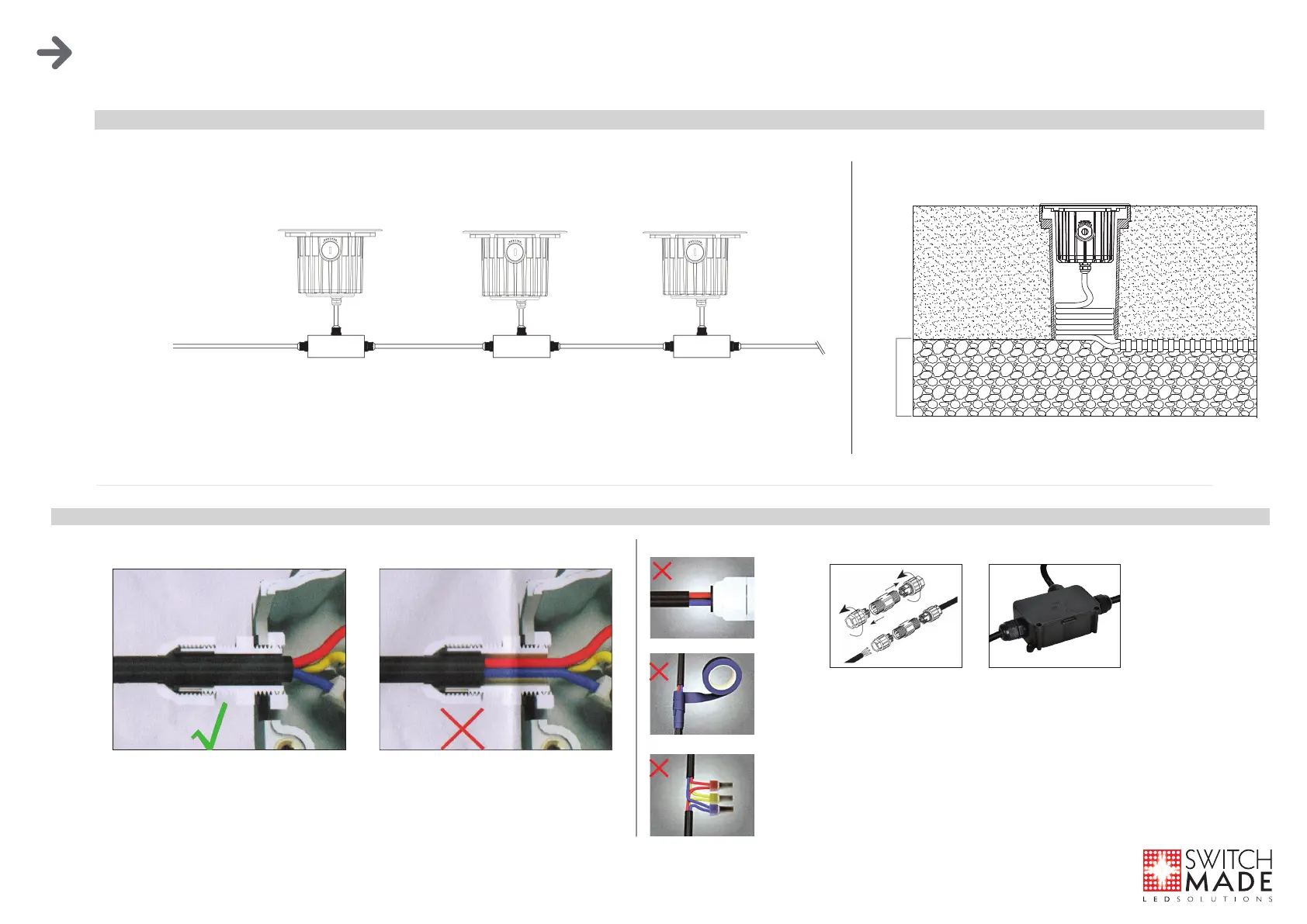

Wiring Diagram
Recommended wiring method
for High Voltage mono-Color light tting.
Note: Don’t install this product near the sea water or in the environment which is high salty or high acid.
Use IP Junction box
(to be ordered separately)
220-240 Vac
50/60Hz
We recommend using the water-proof connectors as shown above for all outdoor fixtures.
Installers should prepare the appropriate main cables of suitable rating and diameter
with the right IP rated connectors.
One input - two outputOne input - one output
Note:
Incorrect Installation
When the wire is connected into the fixture through cable gland, the cable must be more than 10mm inside.
Please refer to the images above.
Prevent the water ltration by IP rated connectors! (to be ordered separately)
300 mm
