15

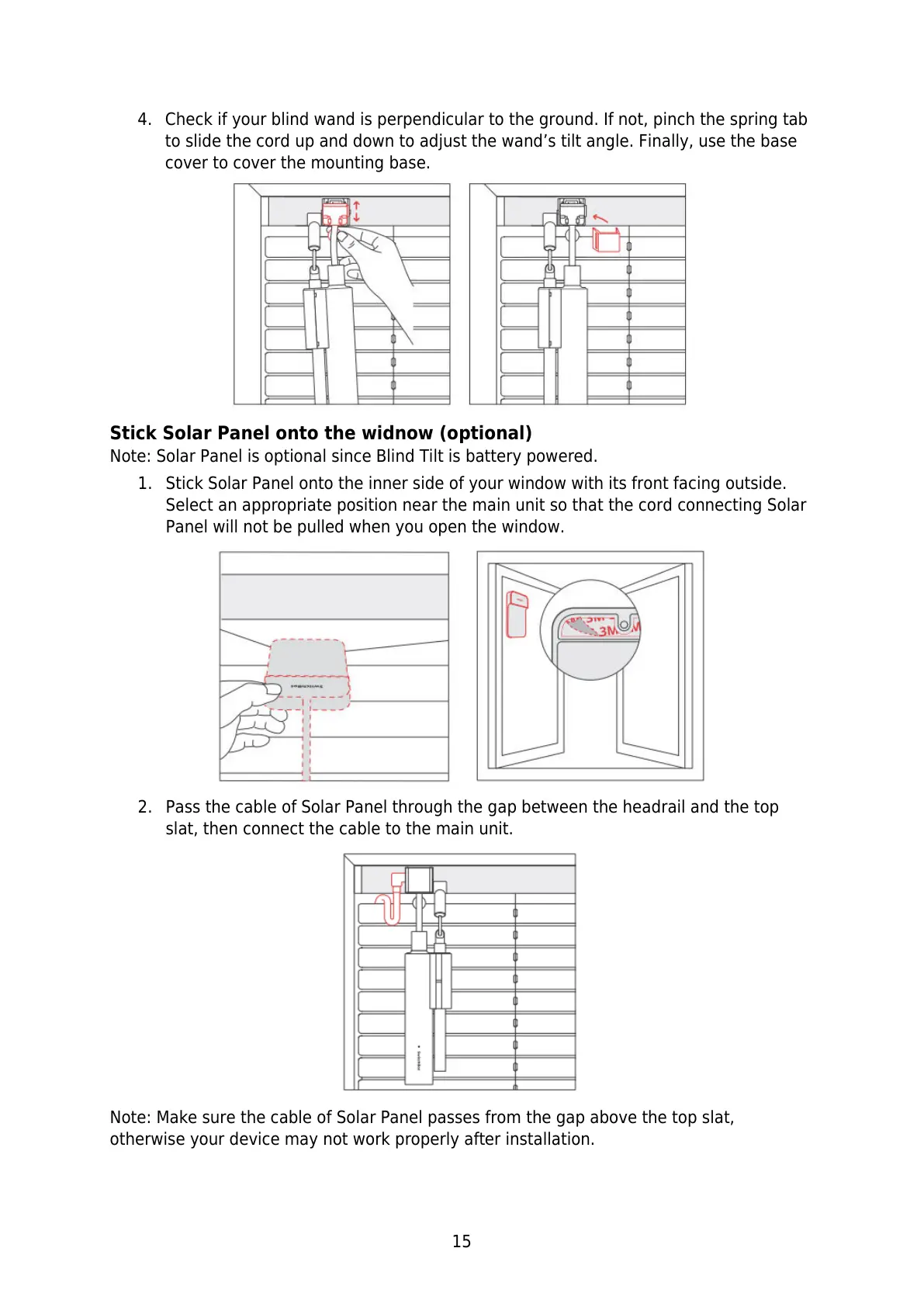

4. Check if your blind wand is perpendicular to the ground. If not, pinch the spring tab
to slide the cord up and down to adjust the wand’s tilt angle. Finally, use the base
cover to cover the mounting base.
Stick Solar Panel onto the widnow (optional)
Note: Solar Panel is optional since Blind Tilt is battery powered.
1. Stick Solar Panel onto the inner side of your window with its front facing outside.
Select an appropriate position near the main unit so that the cord connecting Solar
Panel will not be pulled when you open the window.
2. Pass the cable of Solar Panel through the gap between the headrail and the top
slat, then connect the cable to the main unit.
Note: Make sure the cable of Solar Panel passes from the gap above the top slat,
otherwise your device may not work properly after installation.
