SWorkz S12-2 - Page 20

20
27
BAG
E
28
410047
SWORKz Shock Cap O-Ring (SP)
x4
108029
M2.0x4.6mm FH/ST HEX Screw (1.5mm HexHead)
x4
400014
O-Ring 1.5x13.5mm
x4
330304A
Aluminum Shock Spring Adjust Nut
x4
115186
115162
410047
2501807
330304A
400014
2501807
2501807
108029
330546

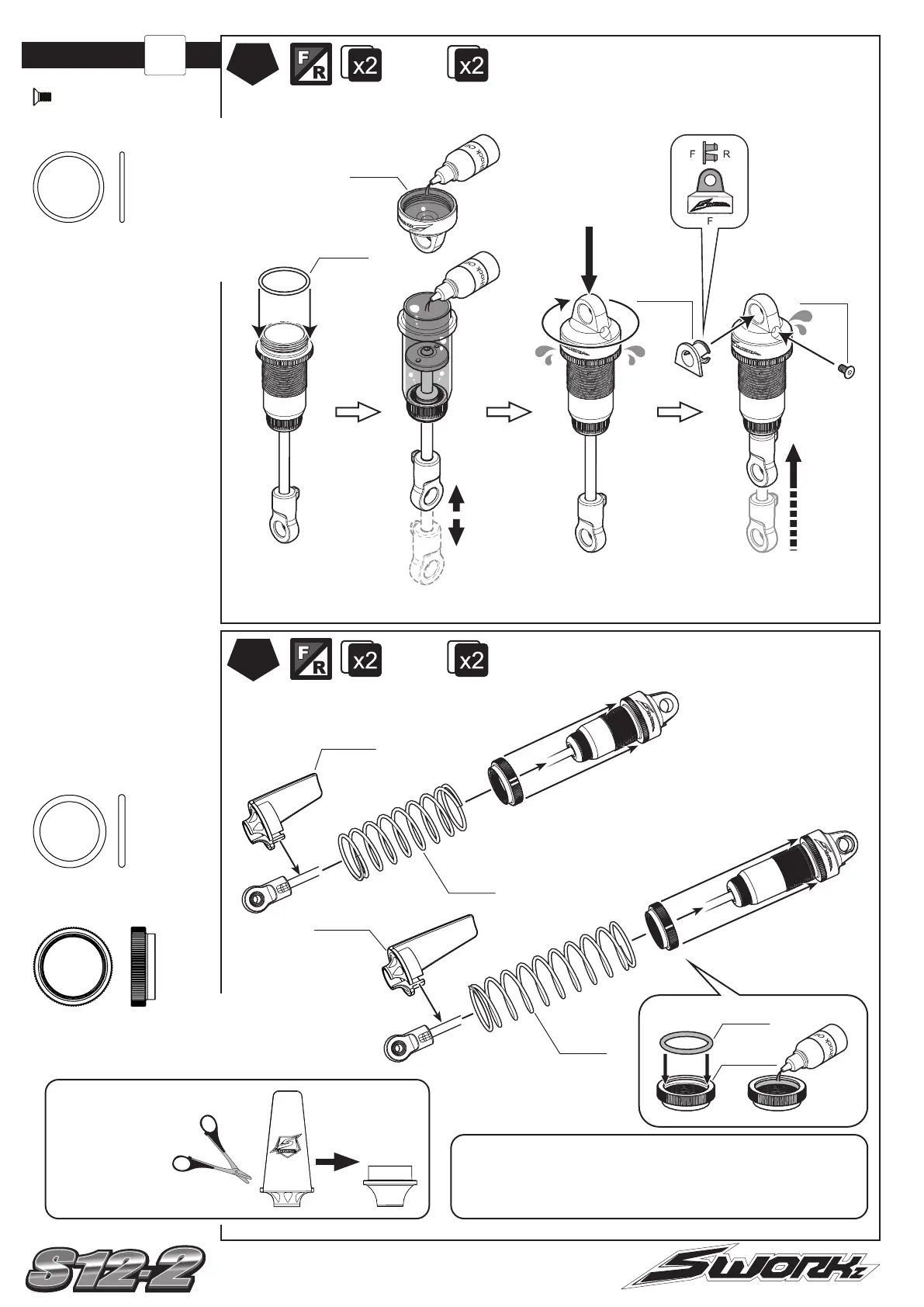

Slowly push the shock shaft
to the end of shock cap.
Then tight screw M2x4mm
For
Front
For
Front
For
Rear
For
Rear
Front
Rear
PRO TIP:
For carpet racing,
you may cut off the
shock spring end
dirt covers with a
RC curve scissors.
OPTION:
SWC-115160 S14/S12 Black Competition Rear Shock Spring (L4-Dot)(57X1.1X7.5)
SWC-115161 S14/S12 Black Competition Rear Shock Spring (L3-Dot)(57X1.1X8.0)
SWC-115185 S12-2 Black Competition Front Shock Spring (US4-Dot)(38X1.2X6.0)
SWC-115187 S12-2 Black Competition Front Shock Spring (US2-Dot)(38X1.2X7.25)
