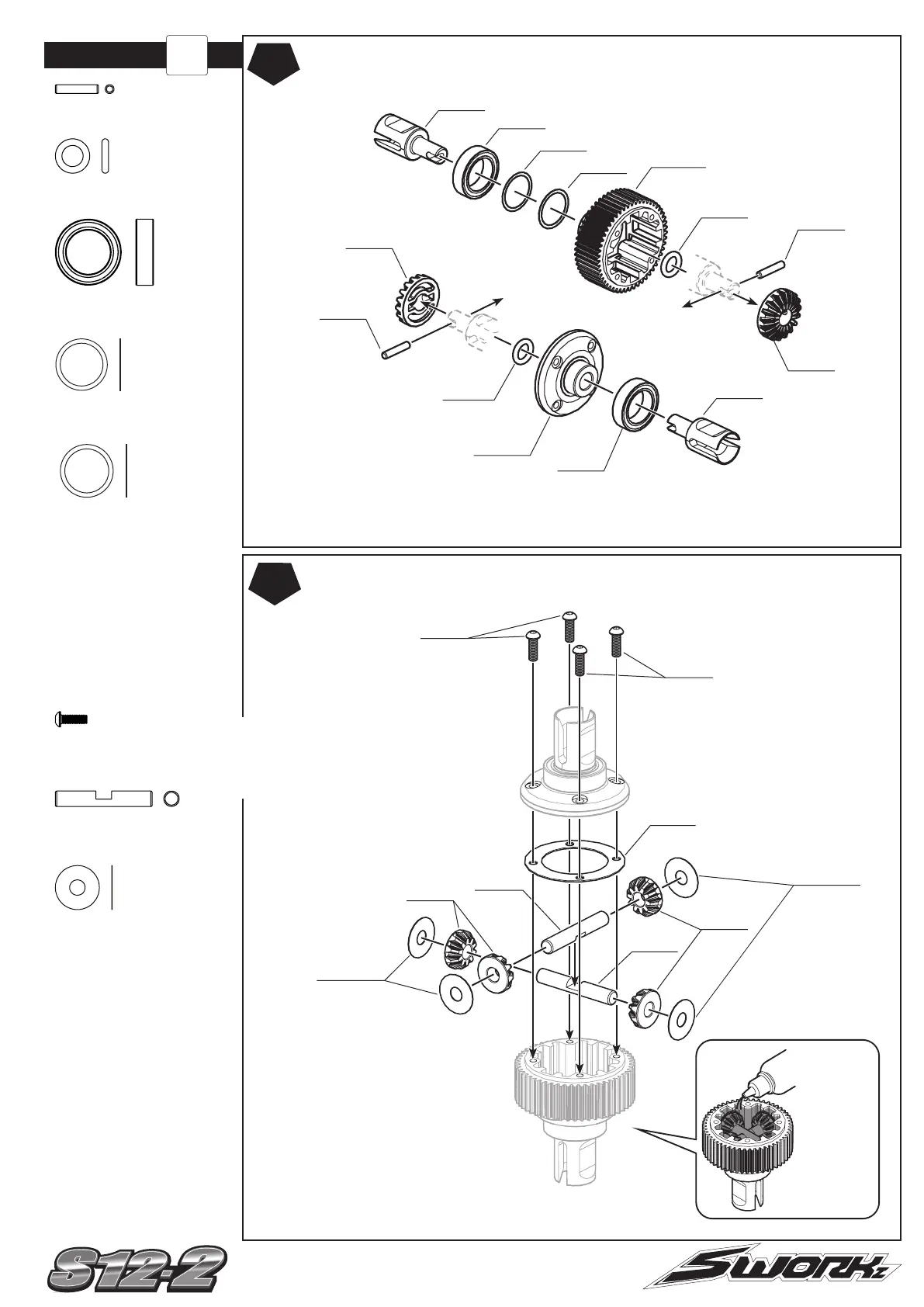

SWorkz S12-2 - Assembly Steps

7
BAG
B
330279
330279
106014
400002
O-ring S5 4.8x1.5
x2
330283
Pin M2x10mm
x2
116013
Ball Bearing 10x15x4mm
x2
330278
400002
400002
330278
116013
116013
330541
330541
330283
330283
2502402
2502402
101023
101024
101024
10x12x0.2mm S104 Shim
x1
101025-02
Shim 3.5x10x0.2mm
x4
330279
Bevel Gear Shaft
x2
106014
M2x6mm Hex Socket OH/TP Screw
x4
Fill the
differentials
with oil up to
80% full.Use
SWORKz diff.
Oil 7000 cps
for the Diff.
106014
610017
101025-02
330278
101025-02
330278
1
2
101023
10x12x0.1mm S104 Shim
x1
