SWorkz S35-3 - Page 12

12
11
10
106013
M2.5x8mmH ex Socket OH/TPScrew
x
2
104005
104005
104005
M3x4mm Set Screw
x2
108003
M3x10mm FH/ST HEX Screw
x4
106013
106013
2501097-7
108006
330772
340002
108006
106002
2503260-11
108003
2503260-18
2503260-18
2503260-11

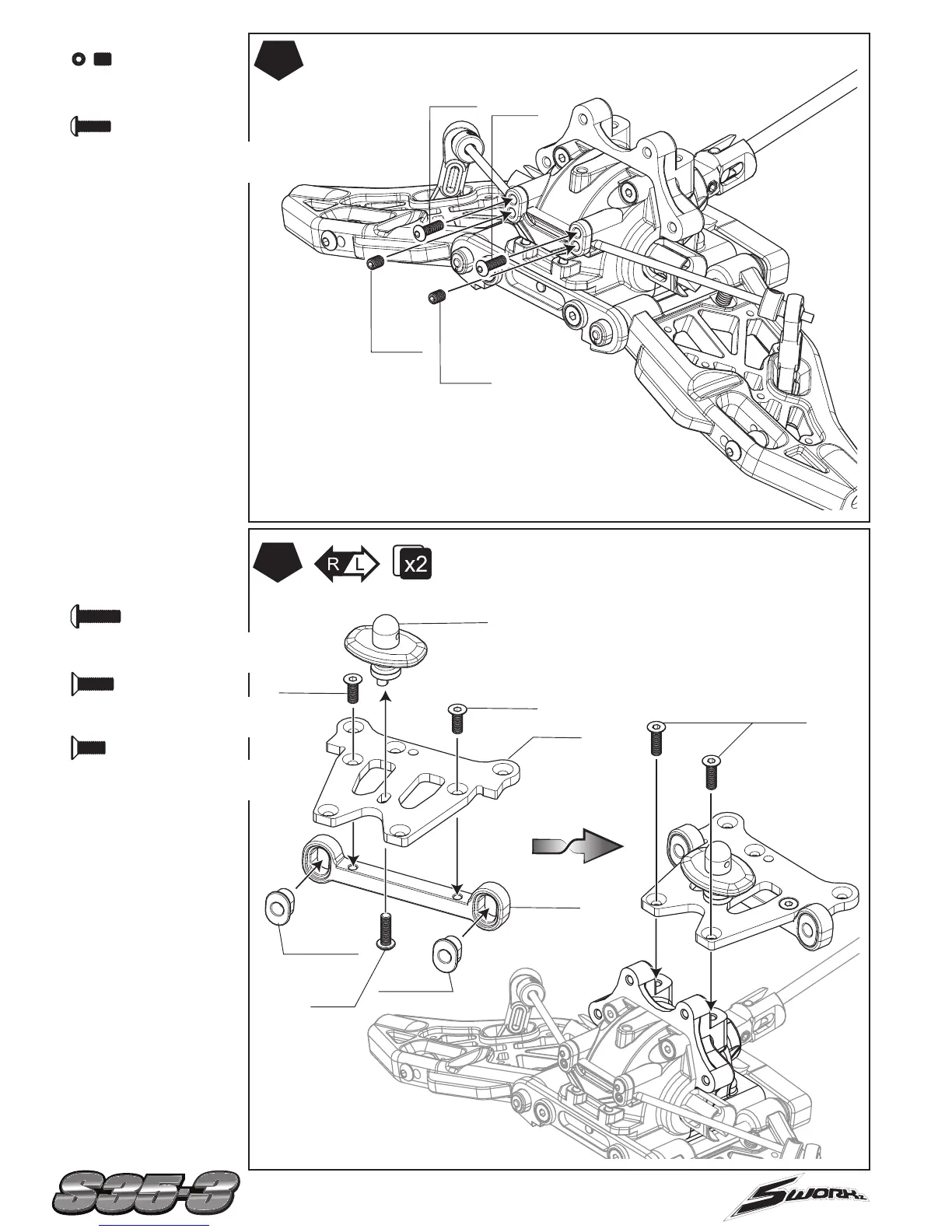

Note:
The aluminum front upper arm holder (330772) can offer either
0° or + -1° kick-up for your front upper arm suspension.
You may use the inserts 2503260-18 to get 0° kick-up
or 2503260-11 to get +-1° for your front lower suspension.
2503260-11
S35-3 Aluminum Front Upper Arm Holder Insert (+/- 1.0 Degree)
2503260-18
S35-3 Aluminum Front Upper Arm Holder Insert (0 Degree)
106002
M3x10mm Hex Socket OH/TP Screw
x1
108006
M3x8mm FH/ST HEX Screw
x2
