SWorkz S35-3 - Page 14

14
15
14
330399B
108001
106002
108005
2503260-16.17
2503260-21
2503260-22
2503260-23
2503260
106002

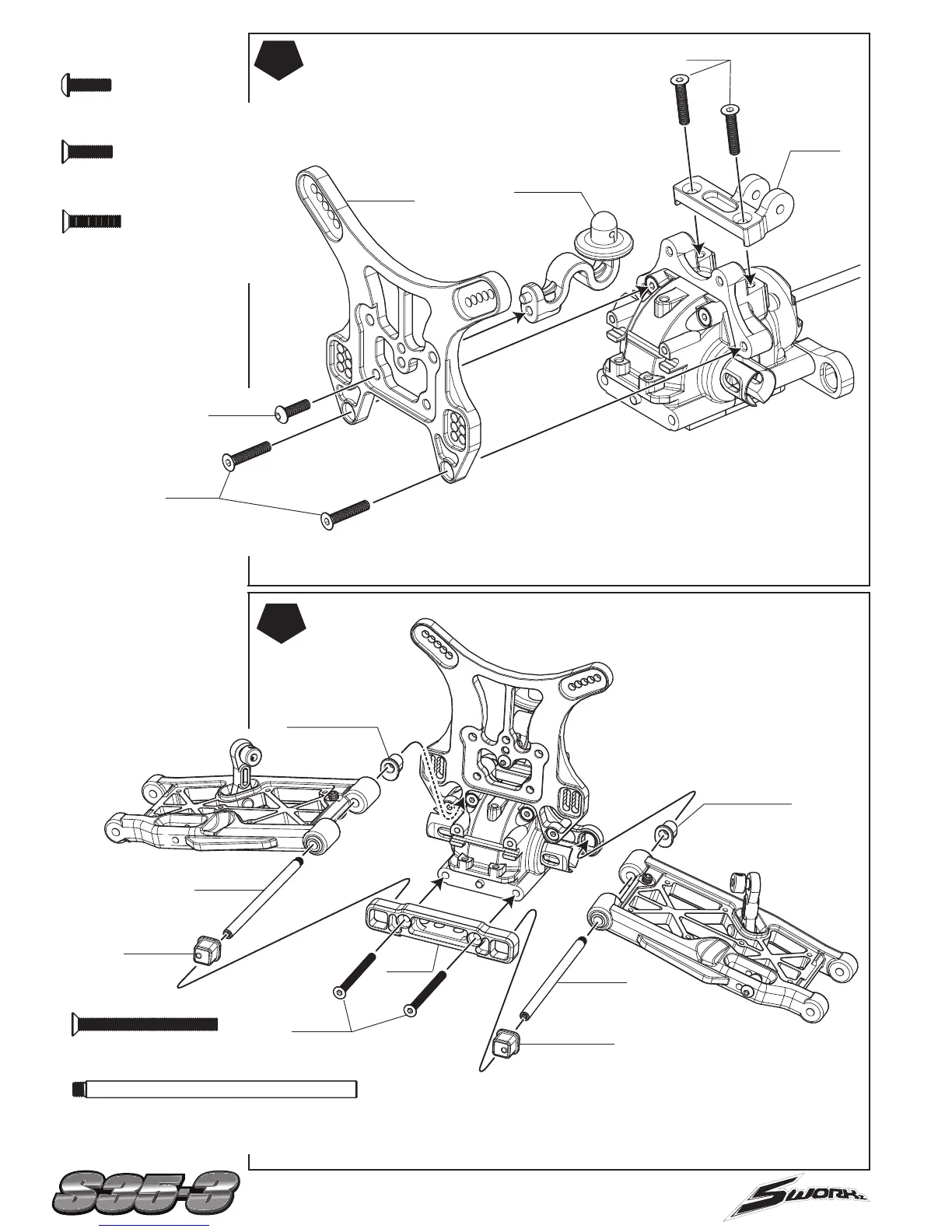

M3x10mm Hex Socket OH/TP Screw
x1
330103
Front/Rear Lower Arm HingPin
x2
108008
M3x35mm FH/ST HEX Screw
x2
330775
2501097-5
330103
330103
108008
330770
Pro Tip:
The S35-3 Aluminum Rear Lower Fully
Adjustable Toe-In Block (A) can use 3
types of square inserts to get 1.0/2.0/3.0 3
different toe in angles. Also plus 3 different
rear lower arm kick up degrees.
For the option parts SW-330795
S35-3 Aluminum Rear Lower Fully
Adjustable Toe-In Block (B), you will have
0.5 degree more than Type A, so 1.5/2.5/3.5
can be set.
Note:
2503260-21
S35-3 Aluminum Rear Lower Fully Adjustable Toe-In Block (A) Insert (+- 1 degree)
2503260-22
S35-3 Aluminum Rear Lower Fully Adjustable Toe-In Block (A) Insert (0 degree)
2503260-23
S35-3 Aluminum Rear Lower Fully Adjustable Toe-In Block (A) Insert (+- 1 Kick up degree)
108001
108005
M3x14mm FH/ST HEX Screw
x2
M3x12mm FH/ST HEX Screw
x2
2503260-16.17
