SWorkz S35-4 - Page 28

28
43
BAG
H
BAG
G
106020
106002
210033X
2501115
2502040
210033X
108006
108006
106002
210033X
210033X
106002
103001
M3 Nut Lock
x1
108006
M3x8mm FH/ST HEX Screw
x2
106002
M3x10mm Hex Socket OH/TP Screw
x3
When the volume
of fuel tank system
is over 125cc,
using the part
210033B can be
reduced 2cc for
your fuel tank.
210033X
SW-338052

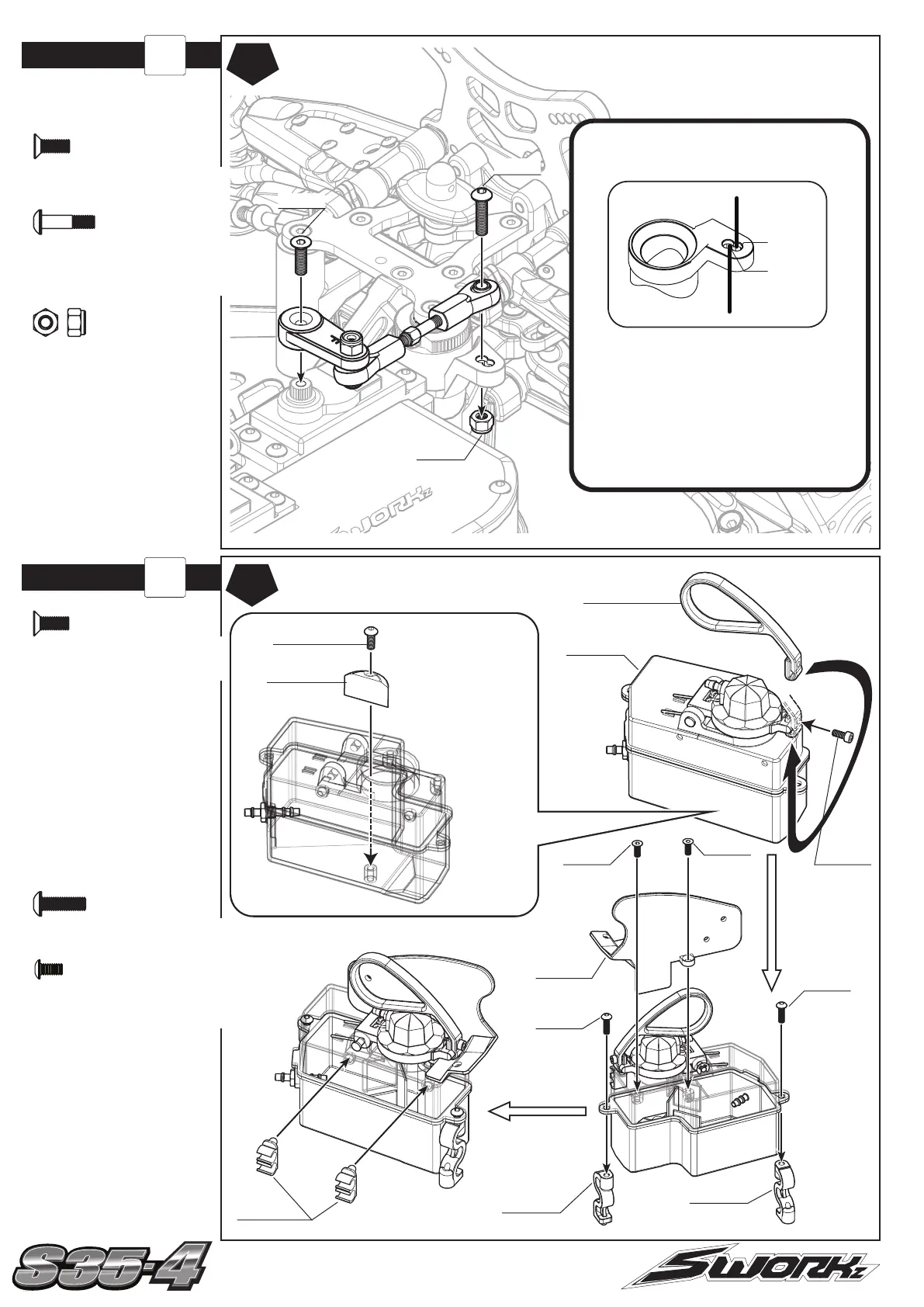

S35-4 Series T7 Aluminum Settring Bellcrank
Upper Part-A (with 2Hole )
If servo saver arms are not included use this:
Position A
: Standard steering response location. Use of a
2.5mm longer servo saver arm is required.
If servo saver arms are included use this:
Position A
: Standard steering response location. Use of
the included 2.5mm longer servo saver arm is required.
Position B
: Quick steering response location. Standard
servo saver arm can be used.
Position A
Position B
42
108006
103001
106007
106020
M2.5x5mm Hex Socket OH/TP Screw
x1
106007
M3x12mm Hex Socket
OH/TP Screw (HT)
x1
108006
M3x8mm FH/ST HEX Screw
x1
