SWorkz S35-4 - Page 33

33
56
BAG
K
35
mm
45.25
mm
115183
S35-4 Black Competition Front
x2
Shock Spring (US3-Dot)(62X1.6X7.75)
115164
S35 Series Black Competition Front
x2
Shock Spring (M3-Dot)(75X1.6X9.0)
2501121C
Front SWC-115183
Rear SWC-115164
228006
Front 338063(S)
Rear 338062(L)
Front 400010(S)
Rear 400009(L)
330134
101011
330557
228006
330562A
103004
400020
210058
Shock Seal O-Ring
x8
330563A
210058
Shock Seal Washer 3.6X7X2.5mm
x8
210058
Shock Seal Washer 3.5X7X1.0mm
x4
103004
M2.5mm Nut Lock
x4
101011
M2.6x6xT0.6mm
x4
400019
Shock Spring Adjust
x4
Nut O-Ring
400020
Shock Seal O-Ring
x4
338063
S35-4 Series BBS System Tiefron Coated Shock Shaft (S)
x2
338062
S35-4 Series BBS System Tiefron Coated Shock Shaft (L)
x2
54
Slowly push the shock shaft
to the end of shock cap.
Then tight screw M2x4mm
108029
108029
M2.0x4.6mm FH/ST
HEX Screw (1.5mm HexHead)
x4
210058
Front 338061(S)
Rear 338060(L)
400019
338067
400022

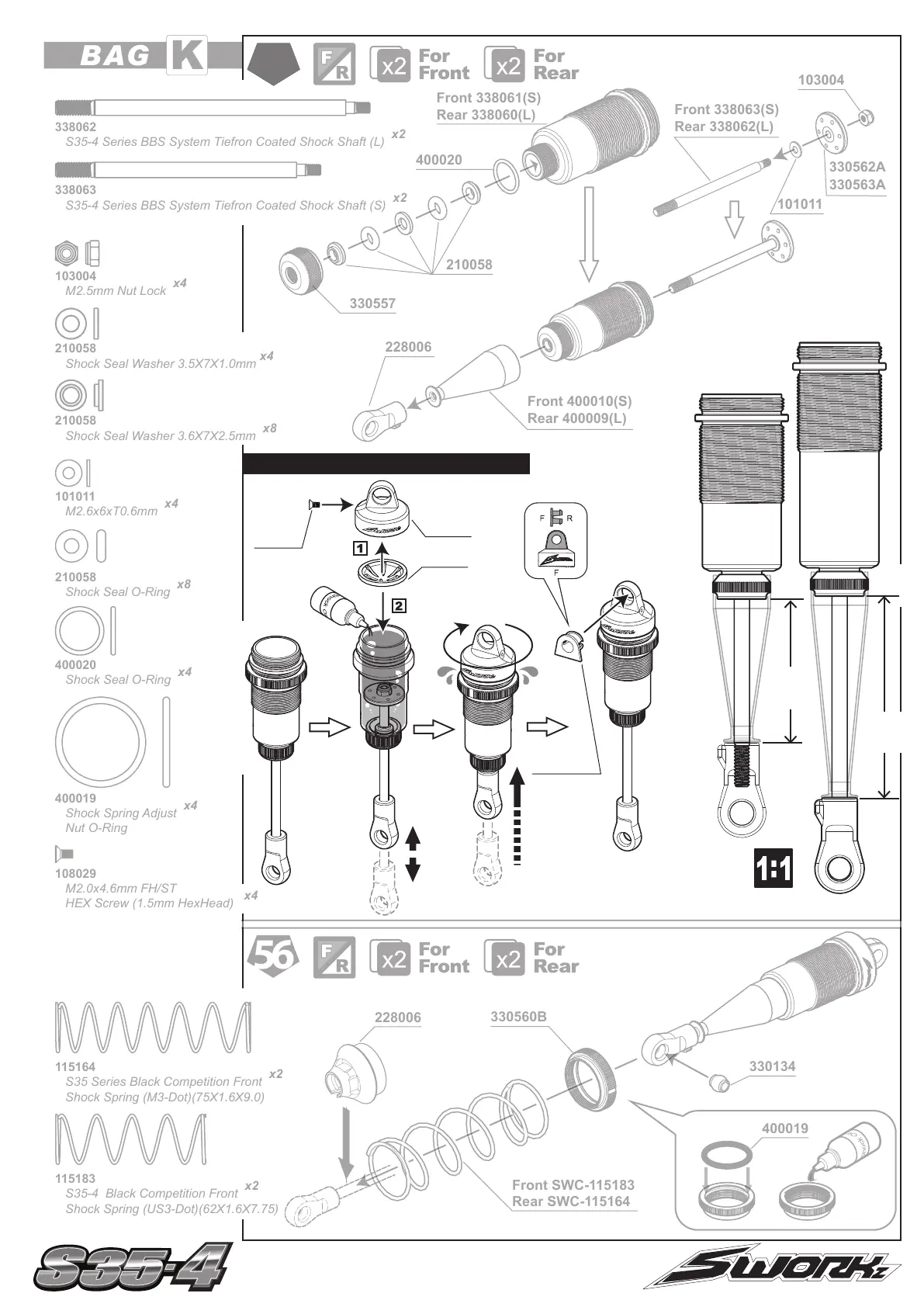

Standard bladder shock cap assembly note
330560B
