SWorkz S35-T2e - Page 26

26
38
BAG
F
39
106008
M3x12mm Hex Socket OH/TP Screw
x1
103001
M3xNut Lock
x1
101012
101012
228006
330134
2503221BK
228006
108006
108003
104009
330694A
106008
106008
104009
M3x16mm Set Screw
x1
108003
M3x10mm FH/ST
x1
108003
M3x10mm FH/ST
x3
108006
M3x8mm FH/ST HEX Screw
x1
101012
M3x6xT0.6mm
x4
228007
106008
103001

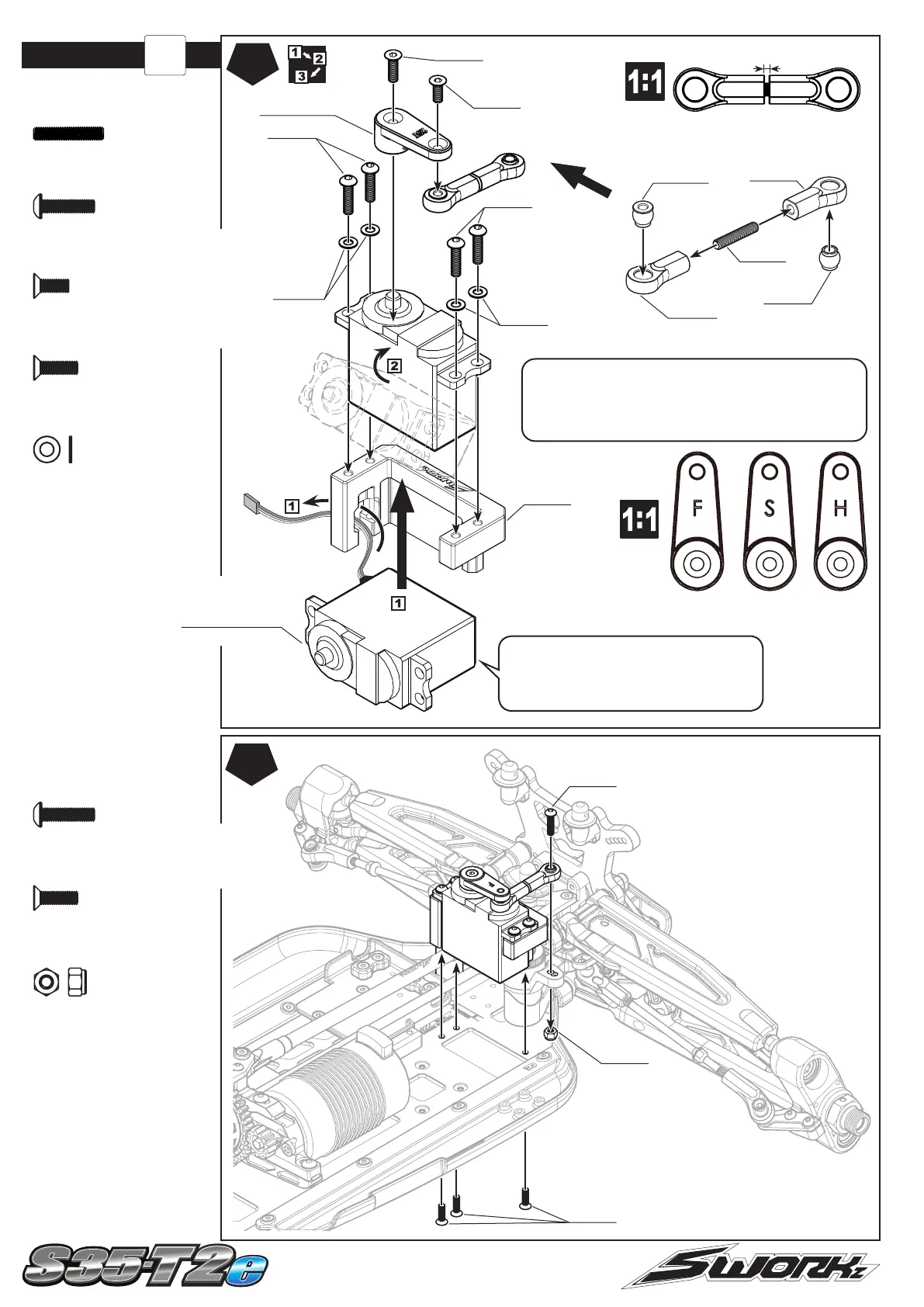

Assembly Note:
According to different brands servo, you can
use different servo hold inserts and screws to
adjust your servo position.
106008
M3x12mm Hex Socket OH/TP Screw
x4
Servo is not
included in the kit.
0mm
25T 23T 24T
OPTION:
SW-338078-25
SWORKz Uni-Design 2-Way System Aluminum Steering Servo Horn 25T
SW-338078-23
SWORKz Uni-Design 2-Way System Aluminum Steering Servo Horn 23T
108003
