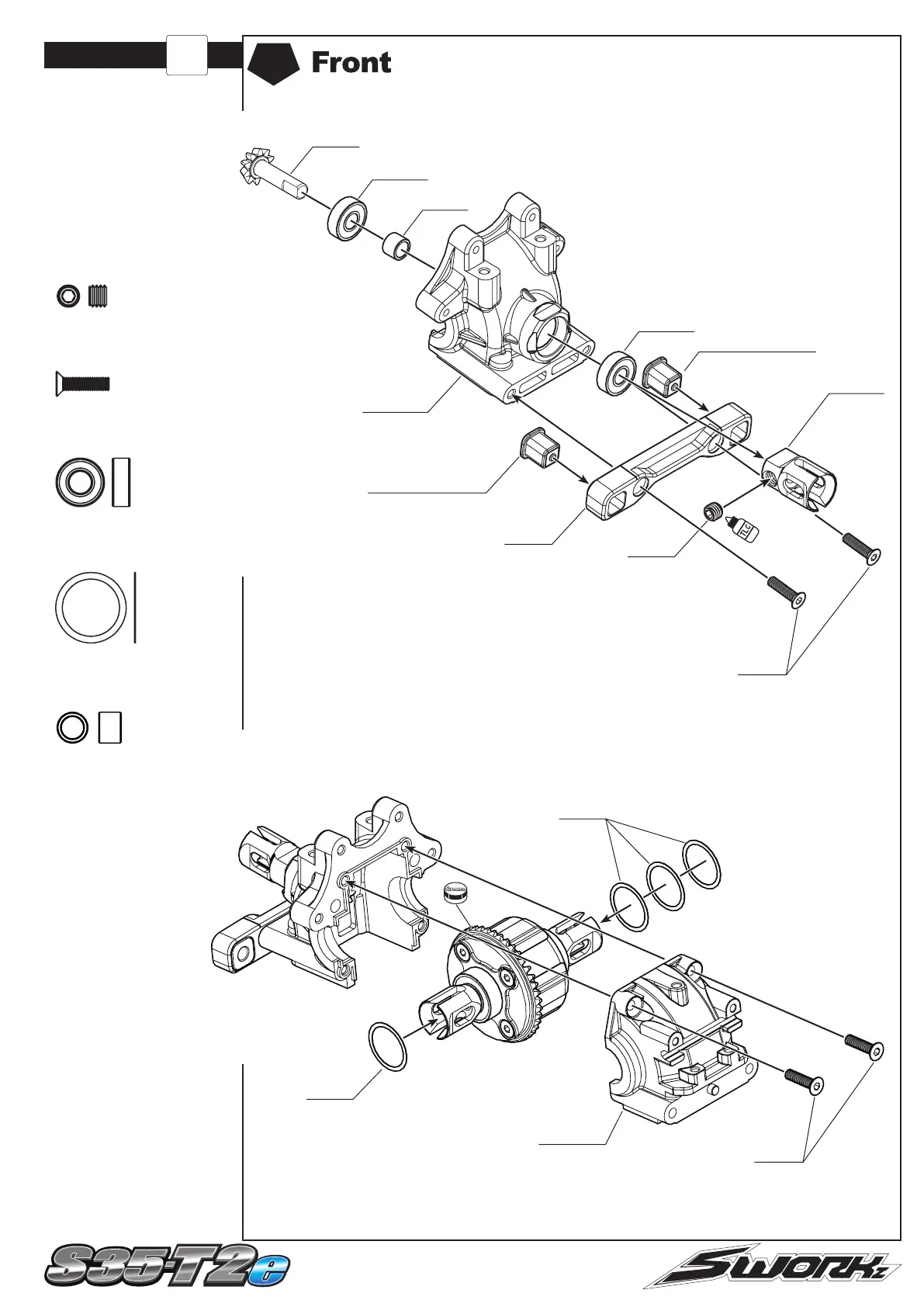

SWorkz S35-T2e - Front Suspension Assembly; Front Suspension & Arms (Bag D, E1)

9
5
BAG
D
104010
101018
106019R
106019R
228001(#8 #9 #10)
338011
108001
M3x12mm FH/ST HEX Screw
x4
338045
2503261A
228001(#8 #9 #10)
338059
2503261A
104010
M5x4mm Set Screw (Flat Bottom)
x1
Pro Tip:
Before installing the M5x4 set screw (104010),
remember to clean the set screw and center driver joint (330661A) rst.
Then apply TLC on the set screw.
Note:
The aluminum front lower arm holder (338059) can offer 0° or 1°
kick-up for your front lower suspension.
You may use the inserts 228001(#10)
kick-up or 228001(#9) to get 1° for your front lower suspension.
Note:
101018SHIM 13x16x0.2mm
Please use 13x16x0.2mm shims to adjust the play between the crown gear and pinion gear.
Standard suggestion is 1pc shim on the diff crown gear side and 3 pcs on the other side.
116019R
Ball Bearing 5x13x4mm (Red Rubber Case)
x2
338011
S35 series Pinion Gear Stopper (5x7x5.1mm)
x1
108001
108001
101018
SHIM 13x16x0.2mm
x4
330661A
101018
