565E
15
CHANN
SIDECHAIN
INPUT
KEY
CHANNEL 1 OUTPUT
BALANCED/
UNBALANCED
BALANCED
OUTPUTS
BALANCED
TYPICAL CONNECTIONS
3
1
SIDECHAIN
3
1
GROUND=PIN 1
HIGH(+)=PIN 2
LOW(-)=PIN 3
22
INPUTS
BALANCED
CHANNEL 2 INPUT
1/4"BALANCED
SIDECHAIN OUT
KEY INPUT
GROUND
BALANCED
SLEEVE=GROUND
RING=LOW(-)
TIP=HIGH(+)
LANCED
ANCED/
UNBALANCED
BALANCED/
EQ
GROUND
RETURN
SEND
RETURN
(to EQ input)
SEND
(from EQ output)

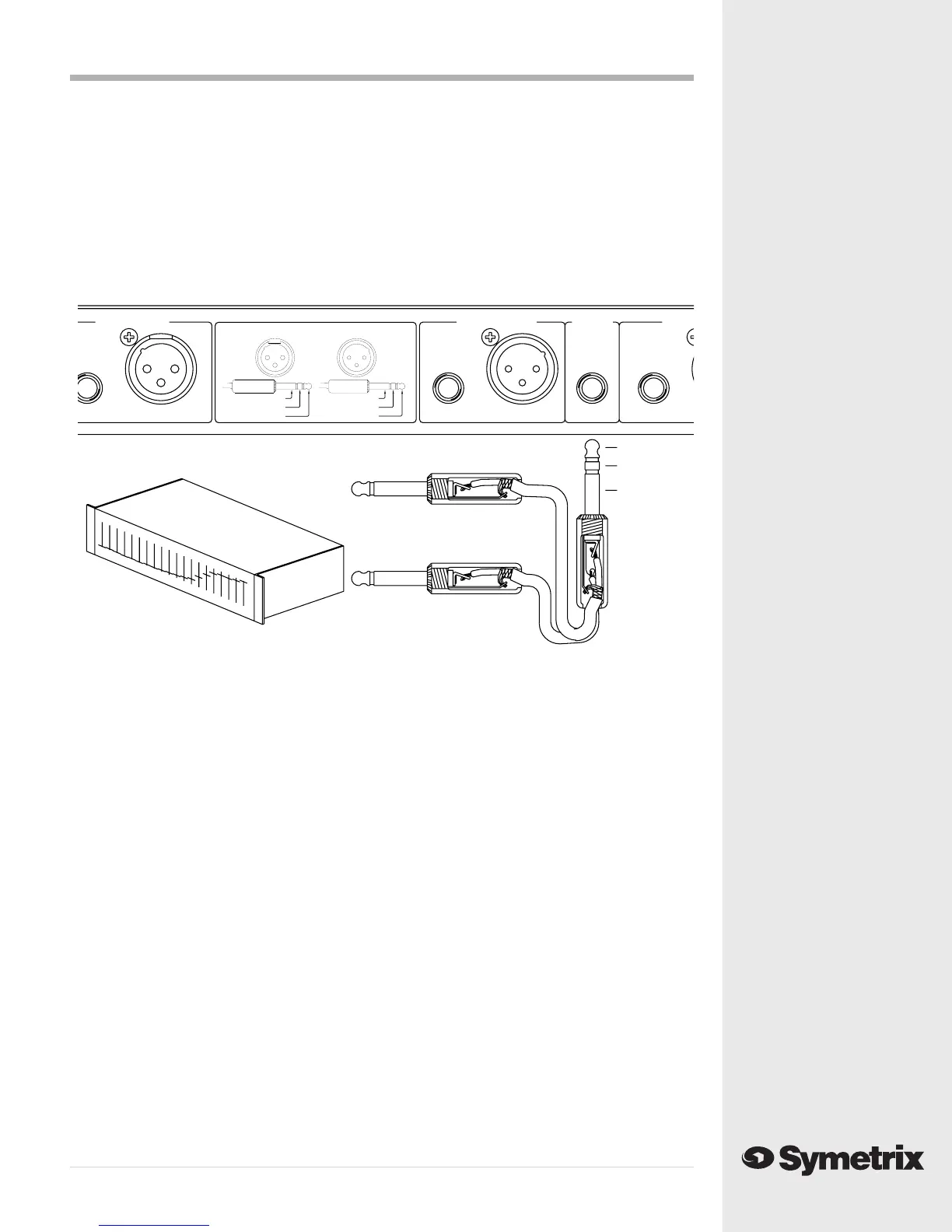

To use the KEY INPUT as a sidechain insert point for external processing of the 565’s sidechain
signal, connect the KEY INPUT jack’s tip (+) and sleeve (ground) to the input of the external pro-
cessing device, and connect the KEY INPUT jack’s ring (+) and sleeve (ground) to the output of the
external processing device. In the hookup diagram below, an equalizer is shown as an example of
an external processing device.
