Synergy 516 - Page 9

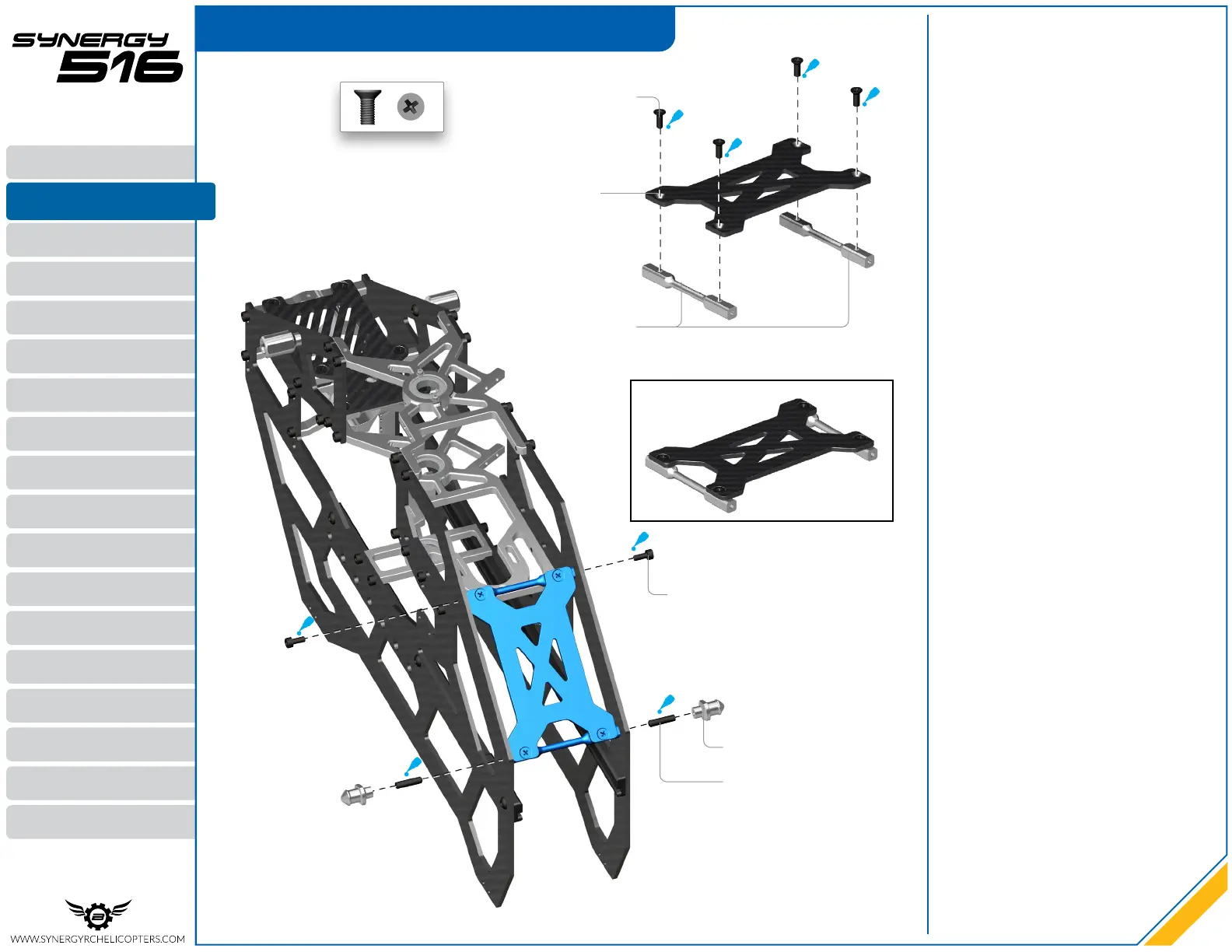

Apply BLUE threadlocker where
indicated and do not over-tighten the
cross-head screws.
103-256
M2.5x6 Flat Head Cross Recess (4)
516-214
ESC Plate
100-266
M2.5x6 Socket Head (2)
516-212
Front Canopy Mount (2)
100-272
M2.5x12 Set Screw (2)
516-200
Frame Mount Spacer (2)
