Synergy 766 - Page 4

ORIENTATION
!
766-107 Panel Standoff Short
100-306 M3x6 Socket Head
(Medium Viscosity)
(Medium Viscosity)
(Medium Viscosity)
(Medium Viscosity)
100-372 M3x12 Set Screw
100-306 M3x6 Socket Head
766-108 Panel Standoff Long
305-121 Key Chain Canopy Mount 21mm
305-106 Break Away Plate
101-306 M3x6 Button Head
766-103 Main Frame
766-104 Frame Spacer Standard
766-106 Battery Tray Rail
100-351 M3 Nylock Nut
100-308 M3x8 Socket Head
101-306 M3x6 Button Head
DO NOT OVER TIGHTEN!
Bolts threaded into the Delrin Battery Tray Rail require
very little holding torque. Do not over tighten or you
will strip the threads.
!
DO NOT TIGHTEN BOLTS YET
Frame alignment should be verified once both sides are
completely assembled and the main shaft inserted. Unless noted
otherwise, do not fully tighten these bolts yet.
!
WWW.SYNERGYRCHELICOPTERS.COM
4
Components that are factory assembled
provide a reference for model assembly.
Disassembly and application of thread
lock is required where indicated.
!

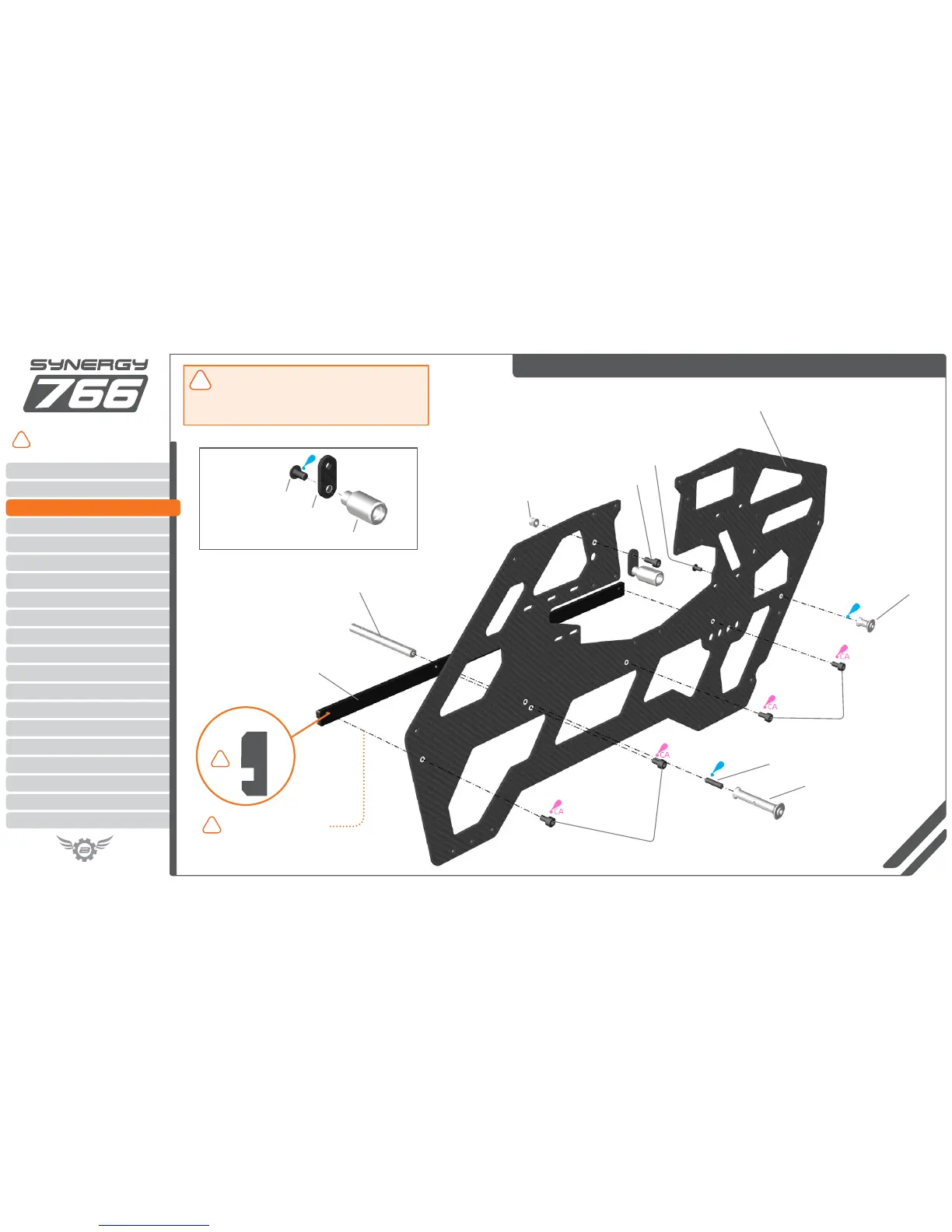

FRAME SIDE 1
FRAME SIDE 2
LANDING GEAR
SPECIFICATIONS
TRANSMISSION
MAIN BEARING BLOCKS
BATTERY TRAY
TORQUE TUBE / BOOM / CONTROL ROD
MAIN AND TAIL BLADES
PANEL SYSTEM
OPTIONS AND CONFIGURATIONS
MAIN DRIVE
SWASH PLATE
SWASH PLATE LINKAGES
MOTOR
HEAD ASSEMBLY
PITCH LINKAGES
SERVO INSTALLATION
TAIL AND HUB
INTRODUCTION
FRAME SIDE 1
SIDE 1
MAIN FRAME
