101-306 M3x6 Button Head

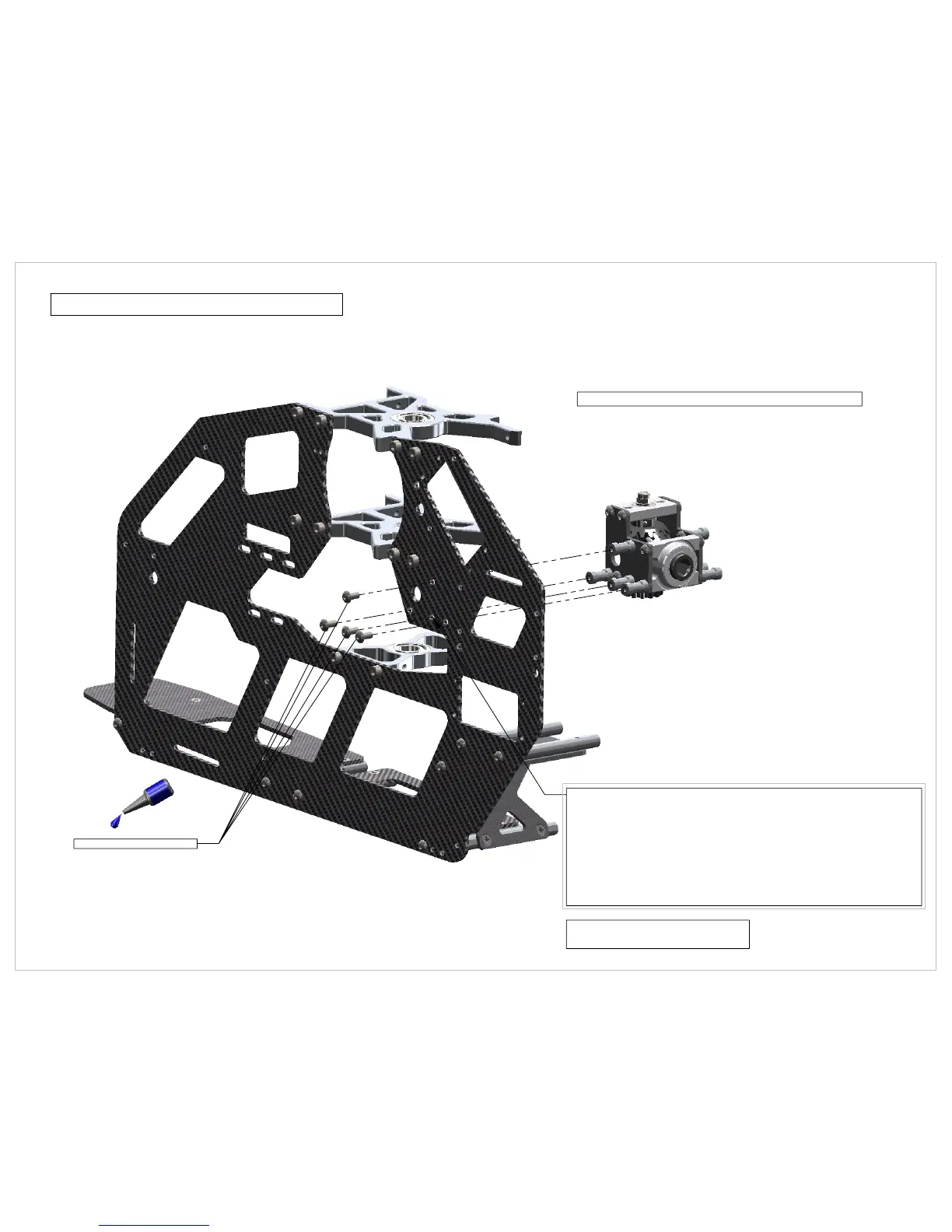

Front Tail Transmission Install
NOTE - DO NOT TIGHTEN BOLTS FULLY YET!
**IMPORTANT PLEASE READ**
Frames are slotted for optional tail gear ratios
Tail Transmission was designed to slide
fore and aft to allow for 4.0:1 gear ratio
as well as optional 4.5:1 tail ratio.
4.0:1(stock)Slide Transmission all the way FORWARD
4.5:1(optional)Slide Transmission all the way AFT
4.0:1 = 52T / 13T (Stock)
4.5:1 = 54T / 12T (Optional)
