Synergy E5 - Page 5

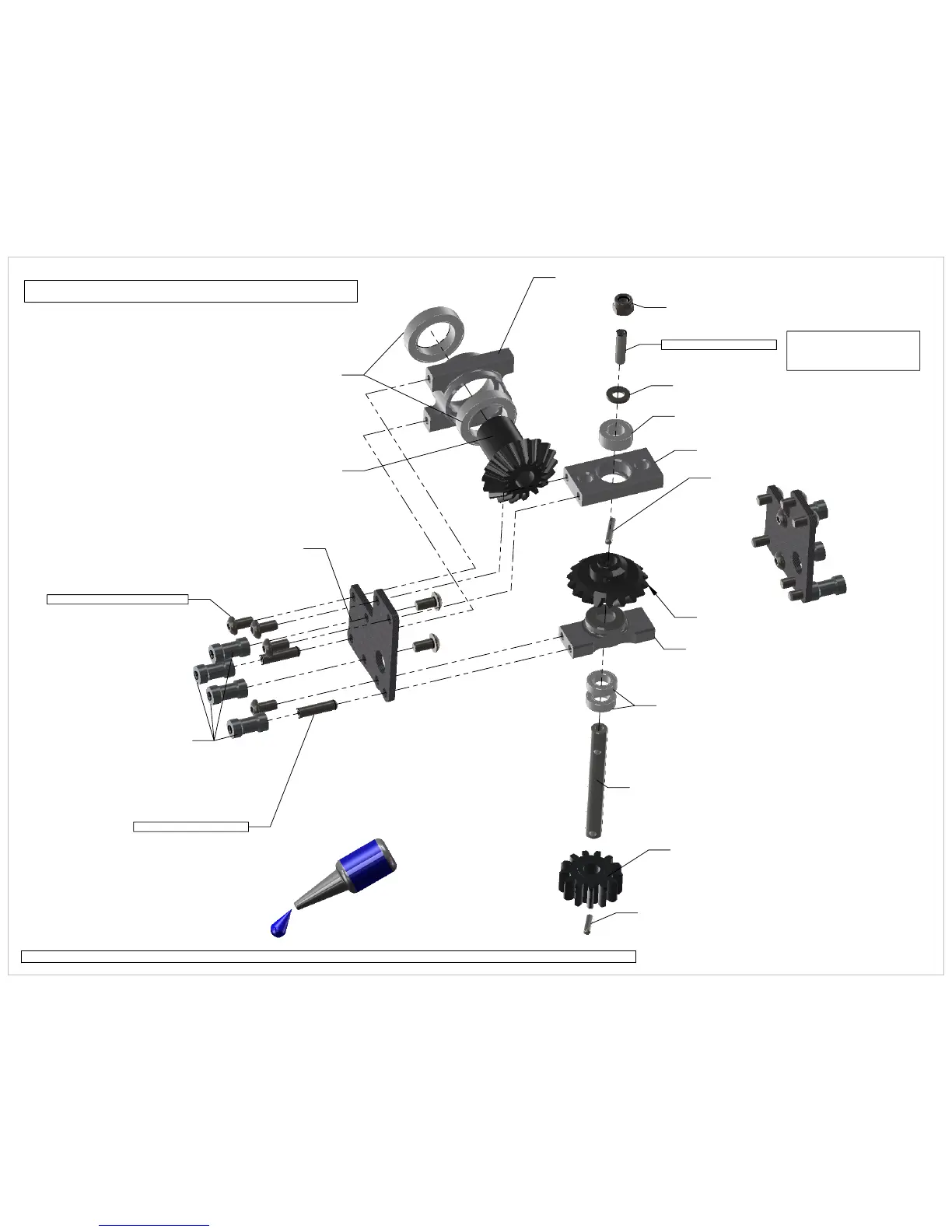

Front Tail Transmission Assembly
108-124 12x18x4 Radial Bearing
320-301 Front Mushroom Gear Bearing Block
320-218 18T Front Trans Mushroom Gear
100-351 M3 Nylock Nut
100-372 M3x12 Set Screw
100-354 M3 Washer
108-510 5x10x4 Radial Bearing
320-302 Bevel Gear Top Bearing Block
320-406 11mm Pin for 18T Bevel Gear
320-303 Spur Gear Bottom Bearing Block
108-593 5x9x3 Radial Bearing
320-408 Spur Gear Shaft
305-213 13T Spur Gear
320-407 2mm Spur Gear Pin
320-101 TranSupport CF Plate
305-105 E5 TranSupport Standoff
101-306 M3x6 Button Head x12
100-372 M3x12 Set Screw
Important! - TIghten and
secure set screw with loctite.
This set screw secures bevel
gear pin.
Page 3
320-118 Front Trans Bevel Gear
IMPORTANT! - Any screw which is metal to metal needs loctite! Clean oil from bolts and apply blue loctite.
