Topvex TR03, TR04, TR06 Installation description
205354 Systemair AB
5
Left model Right model

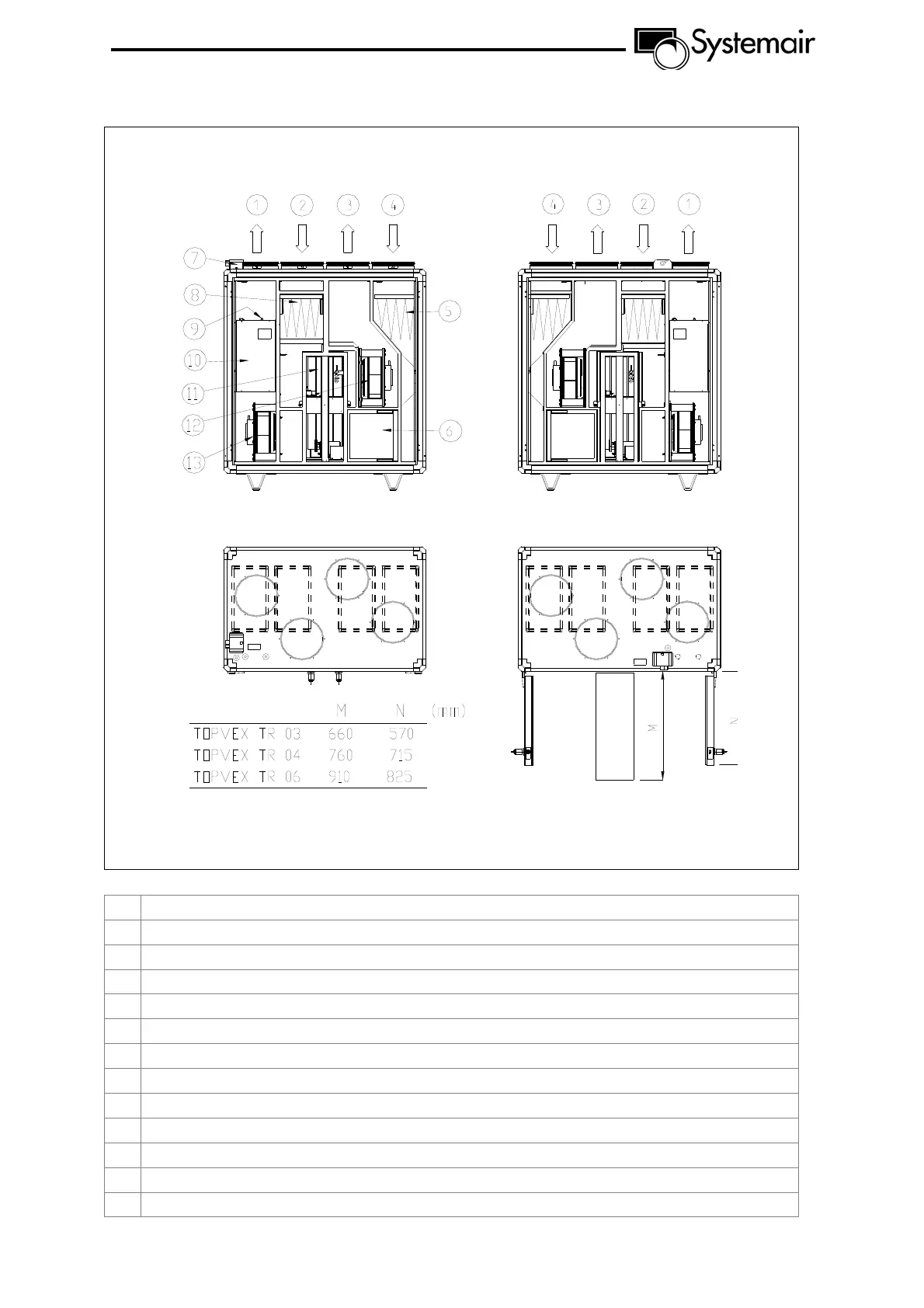

Fig. 3
Description
1.
Connection Supply air
2.
Connection Extract air
3.
Connection Exhaust air
4.
Connection Outside air
5.
Supply air filter (Topvex TR04)
6.
Supply air filter (Topvex TR03, TR06)
7.
Safety switch
8.
Filter, extract air
9.
Reset button, over heat protection
10.
Connection box
11.
Heat exchanger
12.
Fan, extract air
13.
Fan, supply air
