Topvex TR03, TR04, TR06 Installation description
205354 Systemair AB
3
Topvex TR03, TR04
43
B
100
D
A
E
C
61
FG G GF
HIJ
88
120K
15R (½")
JIH
øL

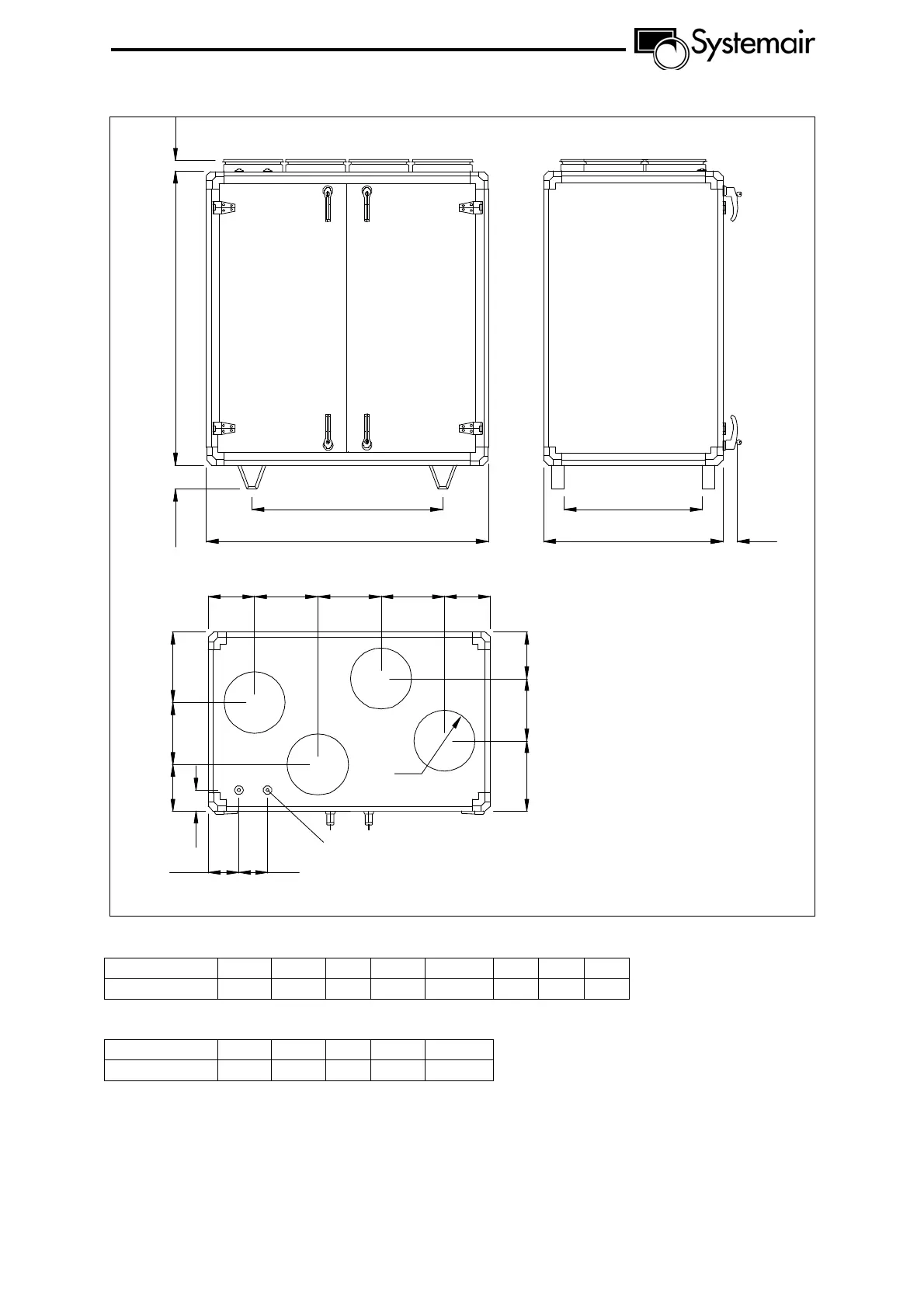

Fig. 1
Dim. (mm) A B C D E F G H
Topvex TR03 1180 1230 750 800 580 193 265 195
Topvex TR04 1480 1280 850 1100 680 209 354 315
Dim. (mm) I J K ØL Weight
Topvex TR03 260 295 127 250 225 kg
Topvex TR04 220 315 163 315 280 kg
