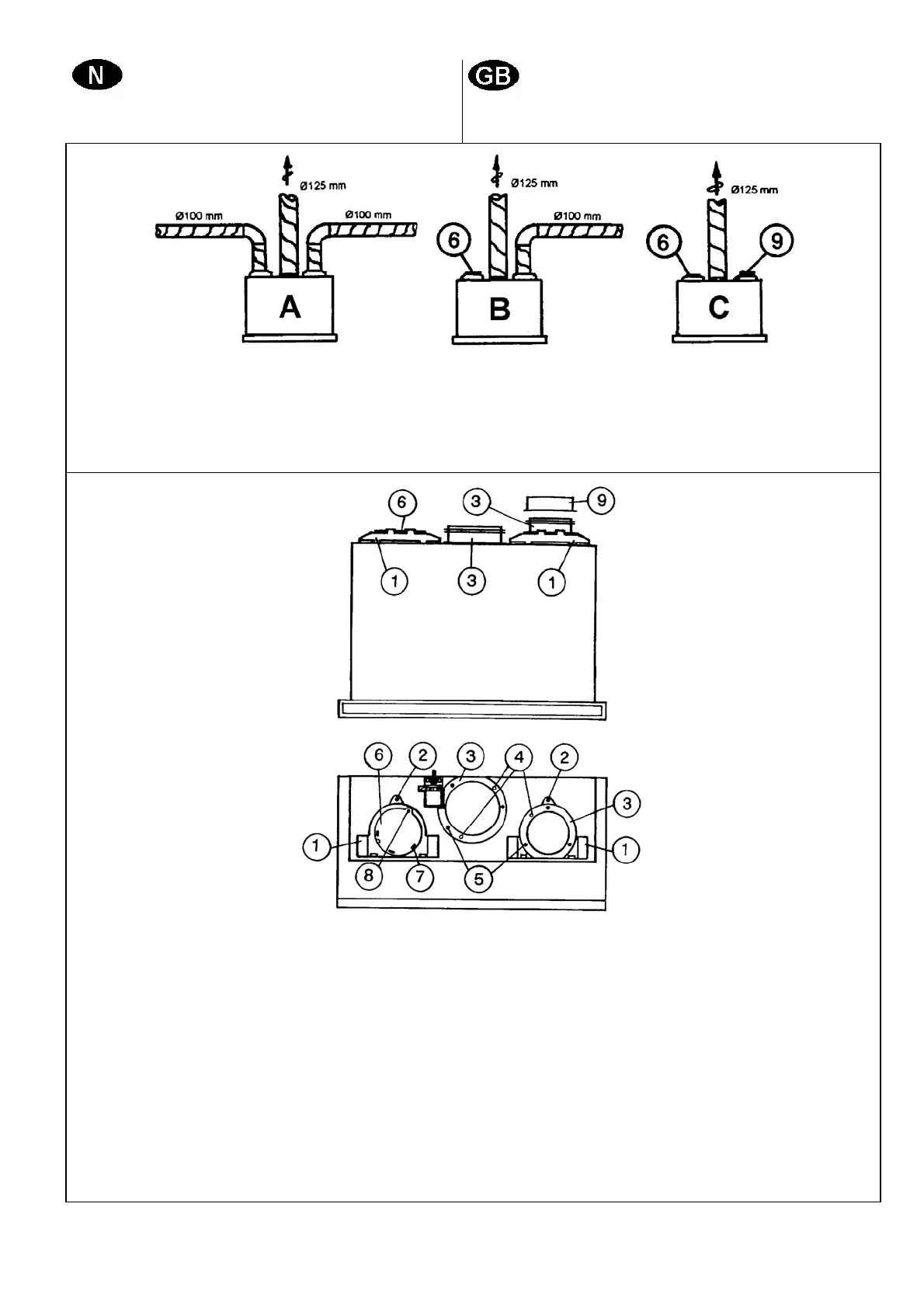

KANALER (fig. 8).
Det legges opp avtrekkskanaler fra WC og våtrom,
og avkastkanal over tak fra vifteenheten
DUCTING (fig. 8).
Install extract ducts from WC, bathroom and laundry
room and dicharge air via roof or wall grill
A) Villavent Duo med 2 - 4 stk. avtrekksventiler
B) Villavent Duo med 1 - 2 stk. avtrekksventiler
C) Villavent Duo som ekstra kraftig kjøkkenventilator
A) Villavent Duo with 2 - 4 pcs. extract louvers
B) Villavent Duo with 1 - 2 pcs. extract louvers
C) Villavent Duo installed as a powerful kitchen ventilator
1) Overgang fra vifteenhet til kanalstusser
2) Skruer for feste av overgang
3) Kanalstusser
4) Styretapper for kanalstusser
5) Skruer for feste av kanalstusser
6) Blindplate
7) Styretapper for blindplate
8) Skrue for feste av blindplate
9) Endebunn for kanalstuss
Prinsipp for tilkobling av kanalanlegg. Kanaler må
isoleres mot kondens ved montasje i kalde rom
1) Connector from fan unit to spigot
2) Screws for fixing of connector
3) Spigots (male)
4) Indication pins for spigots
5) Screws for fixing of spigots
6) Blanking plate for extract opening
7) Indication pins for blockage plate
8) Screw for fixing of blockage plate
9) Bung for spigot
Principle of connection to duct system. Ducting must
be well insulated when installed in cold rooms.
Fig. 8
