CONNECTION OF THE
SOURCE EQUIPMENT
Connect the outputs of the source appliances to the inputs “S1”...”S4” (7) of this amplifier. The output sok-
kets on the source equipment are usually indicated by “LINE OUT”, “AUDIO OUT” or “FRONT OUT”. You
will find information about ways to connect source equipment in their operating manuals.
General Hints:
To use a record player you need a so-called phono preamplifier (also called an equaliser preampli-
fier), which is installed in the signal path between the record player and one of the high-level inputs.
Some models of record player already include this preamplifier and can be connected directly. You
will find further information in this appliance’s operating manual.
The stereo sound of appliances that use output connectors other than RCA (DIN plugs, jack plugs) can
often also be used with the aid of adaptors.
You can connect up to four devices with analogue stereo high level output such as a CD player in order
to provide the audio signals of your input sources to the system. The audio inputs “S1”, “S2”, “S3” and
“S4” represent electrically equivalent standard high level inputs with RCA connection. They have an iden-
tical function and differ only in name.

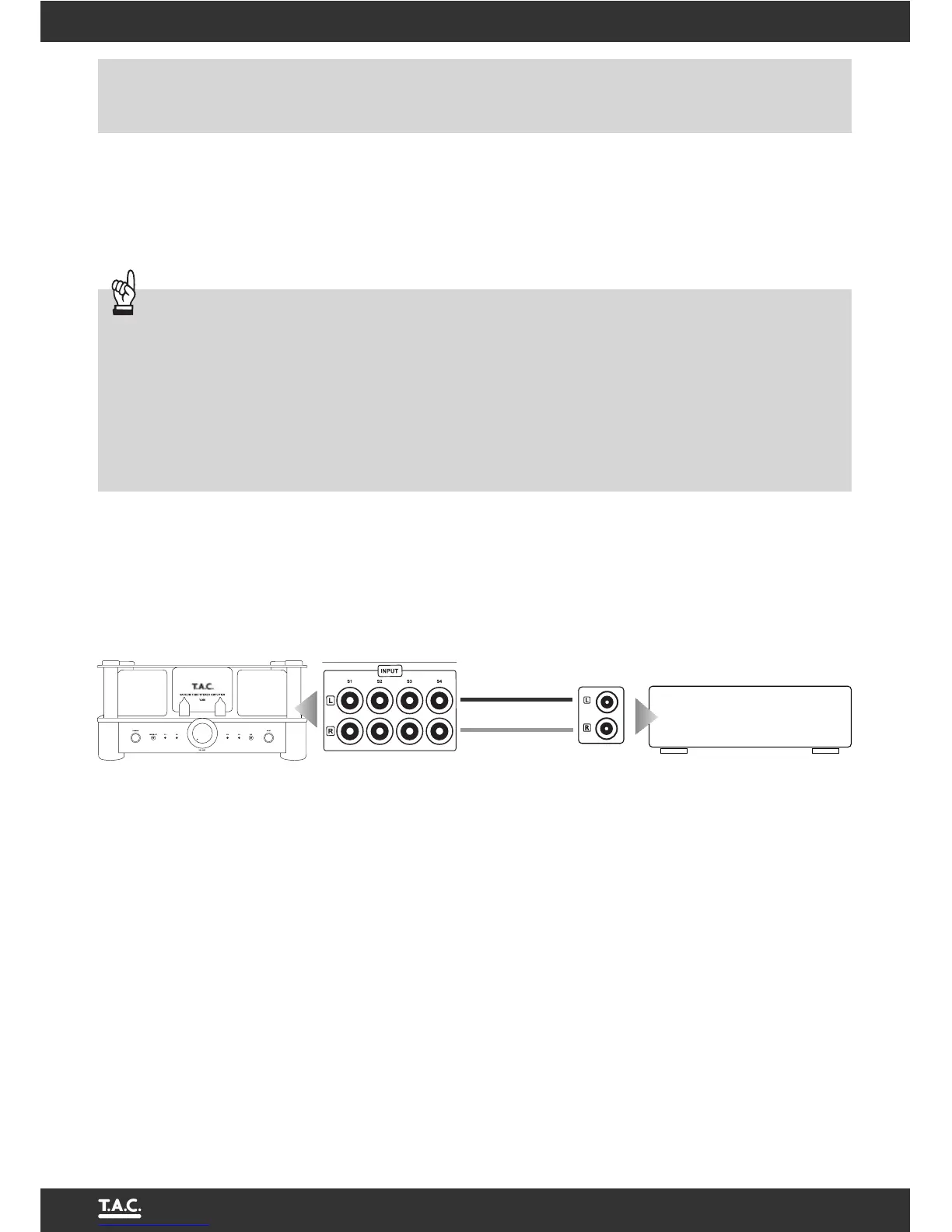

V-60
CD player, tuner, etc.
LINE OUT
RCA
connection
