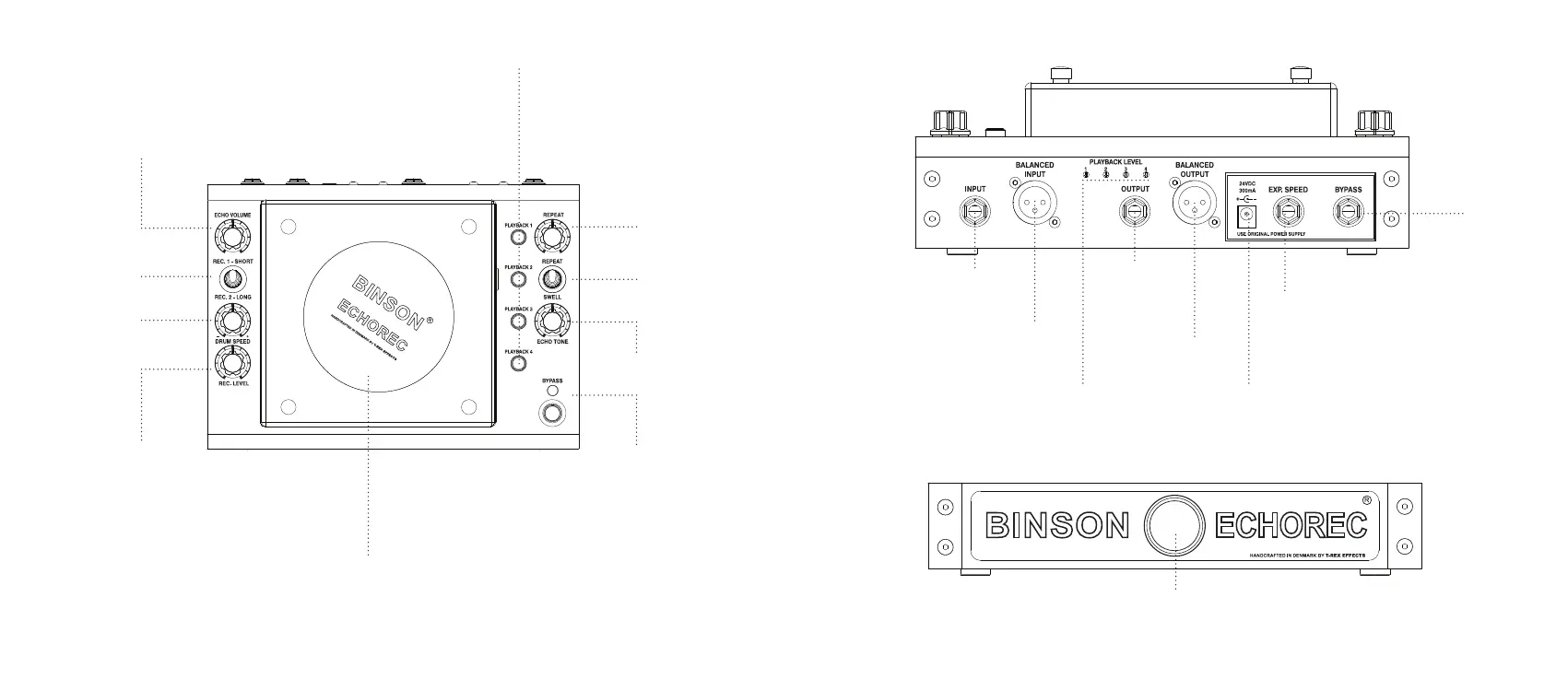

BYPASS
External Bypass, use
a Momentary switch.
PLAYBACK LEVEL
Volume control for
Playback 1 to 4.
MAGIC EYE
The Magic Eye visualize the input signal strength.
EXP. SPEED
Expression pedal input to con-
trol the speed of the drum.
BALANCED OUTPUT
XLR Output.
BALANCED INPUT
XLR input.
INPUT
Jack input from an instru-
ment, Effects pedals or
Line signal.
OUTPUT
Jack output to
amplifier etc.
24V DC / 300mA
External Power supply.
Use included power supply!
ECHO VOLUME
Controls the amount
of echo signal from the
drum that is blended in
with the direct clean or
dry signal.
DRUM SPEED
Controls the rotation
speed of the drum.
REC. LEVEL
Controls the level
into both recording
heads 1 and 2.
REC. 1 - SHORT
REC. 2 - LONG
Selector for short
or long delay.
DRUM
Revolving drum storing the
audio signal.
REPEAT
Controls the adjustable
number of repeats.
PLAYBACK 1, 2, 3, 4
Selectors for Playback 1 to 4
REPEAT/SWELL
Selector for Repeat or
Swell (semi reverb)
ECHO TONE
Roll-off of the
hi-frequencies
BYPASS, ON/OFF
Bypasses the effect
signal.
