5. Wiring the circulator: Disconnect the AC power supply. Remove
the terminal box cover. Attach a wiring connector into the knockout
hole. Use a exible conduit only. Connect Line/Hot power to the black

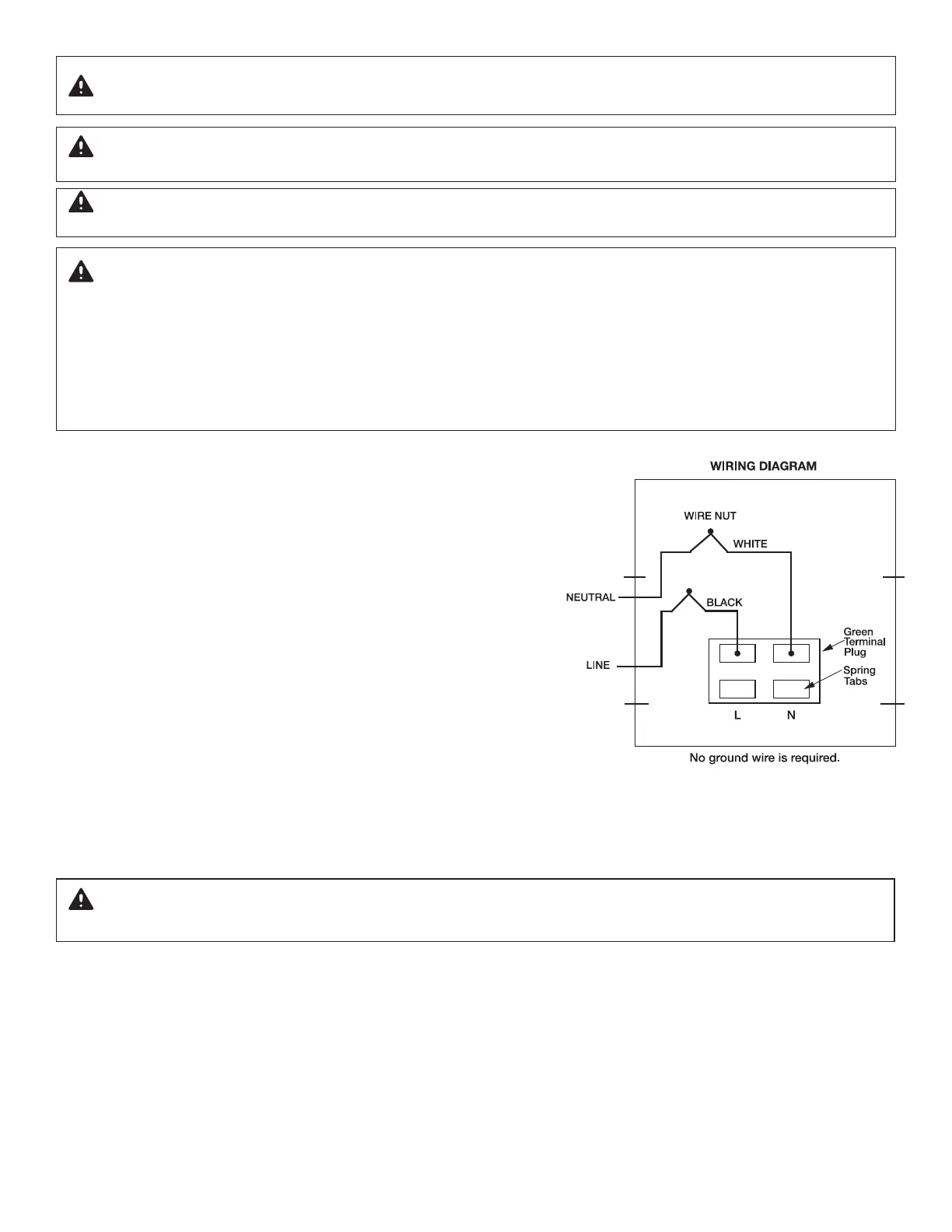

lead, neutral to the white lead. See wiring diagram to the right. Replace
the terminal box cover.
Note: If pigtail leads provided are not used, be sure to trim eld wire to a
strip length of .25” (+/- .025”) to prevent exposed wire causing a short at the
terminal plug. Connect line and neutral to green terminal plug as shown
in the Wiring Diagram. Depress the spring tab with a small screwdriver to
insert wire into the plug. Release tabs to complete connection. The 007e is
a double insulated circulator. No grounding wire is necessary.
6. Start the circulator: When purging the system, it is recommended
to run the circulator long enough to remove all remaining air from
the bearing chamber. This is especially important when installing the
circulator in the o-season. An orange LED will illuminate when the
0015e3 is powered on.
7. Green Mode: Responsive technology actively monitors system conditions and automatically adjusts to optimize power
consumption. In this mode the LED changes to green. Consult with the factory for directions to access Green Mode.
CAUTION: Never run the circulator dry or permanent damage may result.
ATTENTION: Ne laissez jamais le circulateur tourner à sec, des dommages permanents peuvent en résulter.
WARNING: Use supply wires suitable for 90°C.
AVERTISSEMENT: Employer des ls d’alimentation adeqauts pour 90°C.
WARNING: Disconnect power when servicing.
AVERTISSEMENT: Couper l’alimentation lors de l’entretien.
CAUTION: Use exible conduit only. Not for use with rigid conduit.
AVERTISSEMENT: N’utiliser que du conduit exible ; n’est pas fait pour du conduit rigide.
WARNING: SERVICING OF DOUBLE-INSULATED APPLIANCES. A double-insulated appliance is
marked with one or more of the following:
The words “DOUBLE INSULATION” or “DOUBLE INSULATED” or the double insulation symbol (square within a
square). In a double-insulated appliance, two systems of insulation are provided instead of grounding.
No grounding means is provided on a double-insulated appliance, nor should a means for grounding be added.
Servicing a double-insulated appliance requires extreme care and knowledge of the system, and should be
done by qualied service personnel. Replacement parts for a double-insulated appliance must be identical
to the parts they replace.
Full Speed Operation:
To run the pump at full speed during the fast ll, start-up and purge process, rotate dial to HIGH setting.
To return to the normal operating mode, turn dial to desired LOW, MEDIUM or HIGH setting.
